onsemi

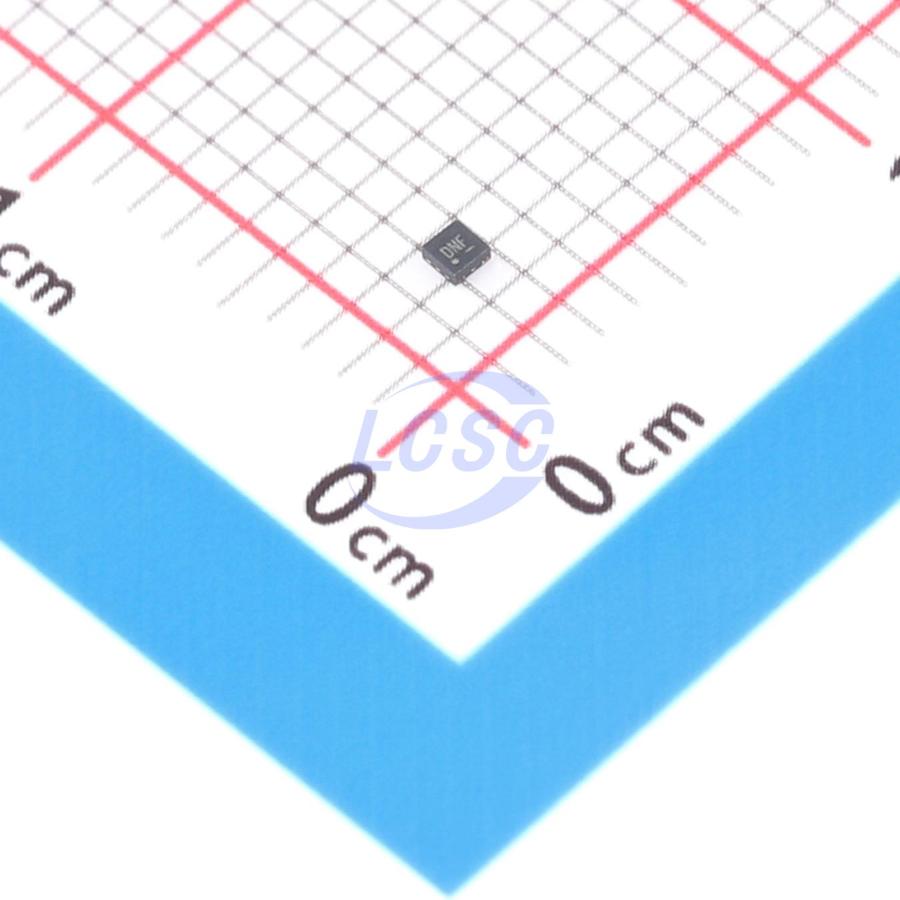

NCV8161AMX180TBG

1.8V Positive Fixed XDFN-4(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

XDFN-4(1x1)ROHS3 CompliantActive

Manufacturer: onsemi
Manufacturer part #: NCV8161AMX180TBG
Store part #: C604028
Package / case: XDFN-4(1x1)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,060 in stock

#C604028

Stock & price checked 11 days ago

Quantity	Unit price	Pack price
5+	₹51.16	₹255.80
50+	₹40.34	₹2,017.00
150+	₹35.71	₹5,356.50
500+	₹29.93	₹14,965.00
3,000+	₹27.35	₹82,050.00
6,000+	₹25.80	₹1,54,800.00

Quantity (min 5, multiples of 5)

5 × ₹51.16

₹255.80

excl. GST

₹301.84 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

NCV8161AMX180TBG

₹255.80 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.8V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Ta)
Supply Current (Iq): 23uA
Output Configuration: Positive
Output Current: 450mA
Operating Voltage: 5.5V
Features: Enable control;Output discharge;Short Circuit Protection;Over Current Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.014 g

Overview

The NCV8161 is a linear regulator capable of supplying 450 mA output current. Designed to meet the requirements of RF and analog circuits, the NCV8161 device provides low noise, high PSRR, low quiescent current, and very good load/line transients. The device is designed to work with a 1 μF input and a 1 μF output ceramic capacitor. It is available in TSOP−5 and XDFN4 packages.

Applications

Parking Camera Modules
Wireless Handsets, Wireless LAN
Automotive Infotainment Systems
Other Battery Powered Applications

Key features

Operating Input Voltage Range: 1.9 V to 5.5 V
Available in Fixed Voltage Option: 1.8 V to 5.14 V
±2% Accuracy Over Temperature
Ultra Low Quiescent Current Typ. 18 μA
Standby Current: Typ. 0.1 μA
Very Low Dropout: 225 mV at 450 mA
Ultra High PSRR: Typ. 98 dB at 20 mA, f = 1 kHz
Ultra Low Noise: 10 μV RMS
Stable with a 1 μF Small Case Size Ceramic Capacitors
Available in TSOP−5 and XDFN4 Packages
NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable; Device Temperature Grade 1: -40°C to +125°C Ambient Operating Temperature Range
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
NCP161BMX180TBG#C603637onsemi · XDFN-4-EP(1x1)	onsemi	XDFN-4-EP(1x1)	80	₹52.05 · 80 in stock	View
LW5218N11E#C20630425Lewa Micro · DFN1x1-4L	Lewa Micro	DFN1x1-4L	14,800	₹8.36 · 14,800 in stock	View
RS3217-1.8XUTDN4#C42459580RUNIC · XDFN-4-EP(1x1)	RUNIC	XDFN-4-EP(1x1)	8,610	₹14.57 · 8,610 in stock	View
LW5418N11E#C51953161Lewa Micro · DFN-4L(1x1)	Lewa Micro	DFN-4L(1x1)	9,930	₹44.19 · 9,930 in stock	View
ETA5055V180DD1E#C5776774etasolution · DFN1x1-4	etasolution	DFN1x1-4	On request	₹8.69 · 0 in stock	View
