onsemiDatasheet (PDF)

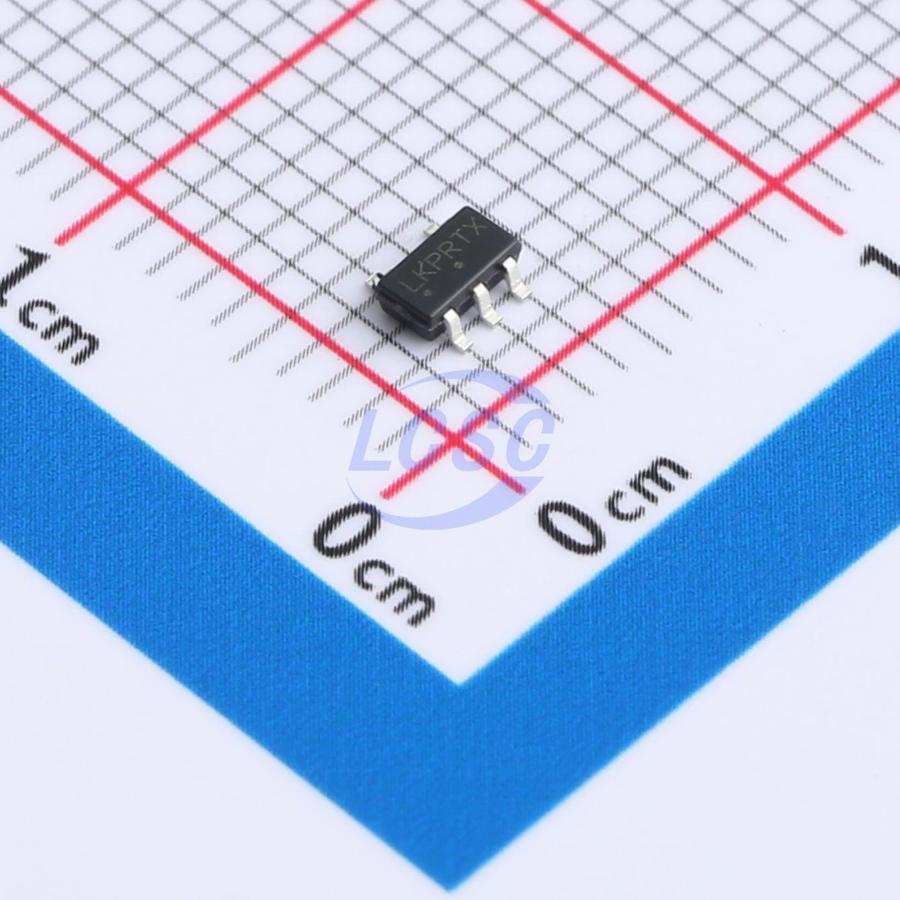

NCV8161BSN300T1G
3V Positive Fixed TSOP-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TSOP-5ROHS3 CompliantActive
LDo Regulator - Ultra-Low Noise, High PSRR, RF and Analog Circuits
- Manufacturer
- onsemi
- Manufacturer part #
- NCV8161BSN300T1G
- Store part #
- C604038
- Package / case
- TSOP-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9 in stock
#C604038
Stock & price checked 39 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹97.94 | ₹97.94 |
| 10+ | ₹95.56 | ₹955.60 |
| 30+ | ₹94.04 | ₹2,821.20 |
| 100+ | ₹92.31 | ₹9,231.00 |
1 × ₹97.94
₹97.94
excl. GST
₹115.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCV8161BSN300T1G
₹97.94 for 1 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 23uA
- Output Configuration
- Positive
- Output Current
- 450mA
- Operating Voltage
- 5.5V
- Features
- Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.112 g
Overview
The NCV8161 is a linear regulator capable of supplying 450 mA output current. Designed to meet the requirements of RF and analog circuits, the NCV8161 device provides low noise, high PSRR, low quiescent current, and very good load/line transients. The device is designed to work with a 1 μF input and a 1 μF output ceramic capacitor. It is available in TSOP−5 and XDFN4 packages.
Applications
- Parking Camera Modules
- Wireless Handsets, Wireless LAN
- Automotive Infotainment Systems
- Other Battery Powered Applications
Key features
- Operating Input Voltage Range: 1.9 V to 5.5 V
- Available in Fixed Voltage Option: 1.8 V to 5.14 V
- ±2% Accuracy Over Temperature
- Ultra Low Quiescent Current Typ. 18 μA
- Standby Current: Typ. 0.1 μA
- Very Low Dropout: 225 mV at 450 mA
- Ultra High PSRR: Typ. 98 dB at 20 mA, f = 1 kHz
- Ultra Low Noise: 10 μV RMS
- Stable with a 1 μF Small Case Size Ceramic Capacitors
- Available in TSOP−5 and XDFN4 Packages
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable; Device Temperature Grade 1: -40°C to +125°C Ambient Operating Temperature Range
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCV8161ASN300T1G#C604033onsemi · TSOP-5 | onsemi | TSOP-5 | 4 | ₹174.42 · 4 in stock | View |
 | AP7366-30W5-7#C5564308DIODES · SOT-25 | DIODES | SOT-25 | 20 | ₹12.11 · 20 in stock | View |
 | RS3217F-3.0XF5#C50202024RUNIC · SOT23-5 | RUNIC | SOT23-5 | 3,000 | ₹3.33 · 3,000 in stock | View |
 | RS3217-3.0XF5#C41406708RUNIC · SOT-23-5 | RUNIC | SOT-23-5 | 20 | ₹5.61 · 20 in stock | View |
 | LW5730A23E#C47018875Lewa Micro · SOT-23-5L | Lewa Micro | SOT-23-5L | 395 | ₹37.07 · 395 in stock | View |
