onsemi

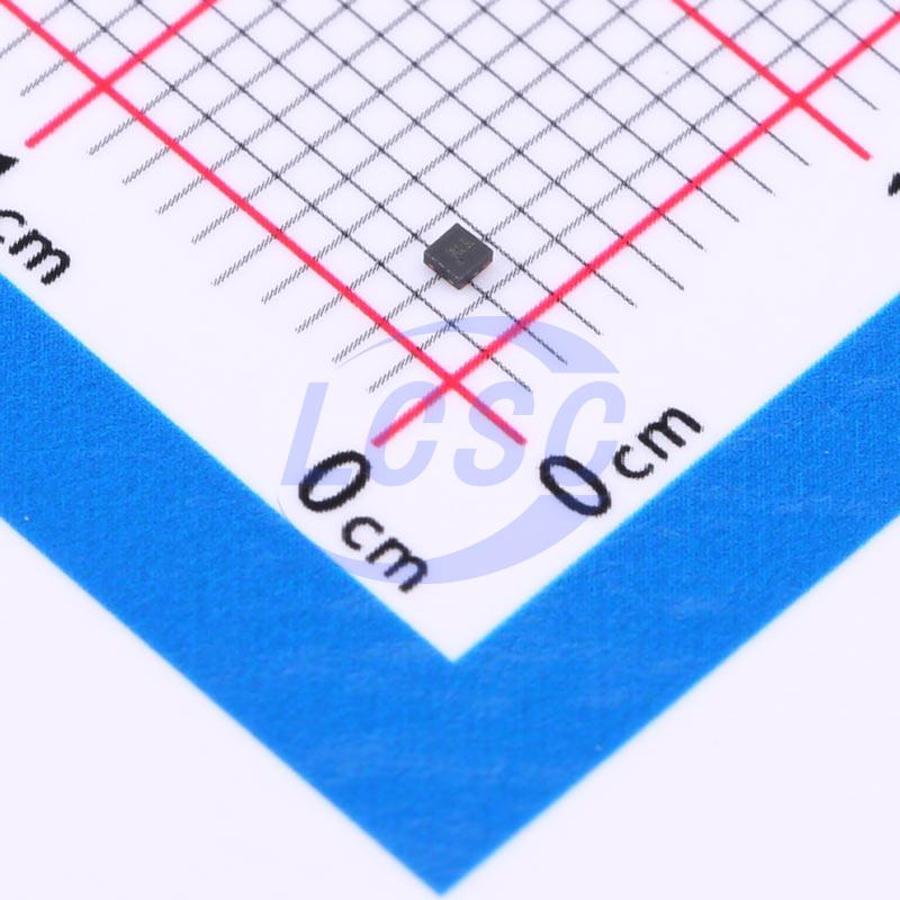

NCV8163AMX120TBG

1.2V Positive Fixed XDFN-4-EP(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

XDFN-4-EP(1x1)ROHS3 CompliantActive

250 mA, Ultra-Low Noise and High PSRR LDO Regulator for RF and Analog Circuits

Manufacturer: onsemi
Manufacturer part #: NCV8163AMX120TBG
Store part #: C893119
Package / case: XDFN-4-EP(1x1)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

137 in stock

#C893119

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹55.79	₹55.79
10+	₹54.72	₹547.20
30+	₹54.07	₹1,622.10
100+	₹53.42	₹5,342.00

Quantity (min 1)

1 × ₹55.79

₹55.79

excl. GST

₹65.83 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

NCV8163AMX120TBG

₹55.79 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.2V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 12uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 250mA
Output Type: Fixed
Features: Enable control;Output discharge;Over Current Protection;Short Circuit Protection;Thermal shutdown

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.012 g

Overview

The NCV8163 is a next generation of high PSRR, ultra−low noise LDO capable of supplying 250 mA output current. Designed to meet the requirements of RF and sensitive analog circuits, the NCV8163 device provides ultra−low noise, high PSRR and low quiescent current. The device also offer excellent load/line transients. The NCV8163 is designed to work with a 1 μF input and a 1 μF output ceramic capacitor. It is available in XDFN4 0.65P, 1 mm x 1 mm and TSOP−5 packages.

Applications

ADAS, Infotainment & Cluster, and Telematics
General Purpose Automotive & Industrial
Building & Factory Automation, Smart Meters

Key features

Operating Input Voltage Range: 2.2 V to 5.5 V
Available in Fixed Voltage Option: 1.2 V to 5.3 V
±2% Accuracy Over Load/Temperature
Ultra Low Quiescent Current Typ. 12 μA
Standby Current: Typ. 0.1 μA
Very Low Dropout: 80 mV at 250 mA @ 3.3 V
Ultra High PSRR: Typ. 92 dB at 20 mA, f = 1 kHz
Ultra Low Noise: 6.5 μV RMS
Stable with a 1 μF Small Case Size Ceramic Capacitors
Available in XDFN4 1 mm x 1 mm x 0.4 mm and TSOP−5 Packages
NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; Grade 1 AEC−Q100 Qualified and PPAP Capable
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
LP5907SNX-1.2/NOPB#C165128TI · X2-SON-4(1x1)	TI	X2-SON-4(1x1)	313	₹59.63 · 313 in stock	View
LDLN025PU12R#C3745767ST · DFN-4(1x1)	ST	DFN-4(1x1)	35	₹42.53 · 35 in stock	View
LW5712N11E#C53426698Lewa Micro · DFN-4L(1x1)	Lewa Micro	DFN-4L(1x1)	9,905	₹35.96 · 9,905 in stock	View
TPS7A20L12PDQNR#C30875939TI · X2SON-4-EP(1x1)	TI	X2SON-4-EP(1x1)	34	₹61.40 · 34 in stock	View
ETA5055V120DD1E#C41417208etasolution · DFN-4-EP(1x1)	etasolution	DFN-4-EP(1x1)	2,015	₹10.20 · 2,015 in stock	View
