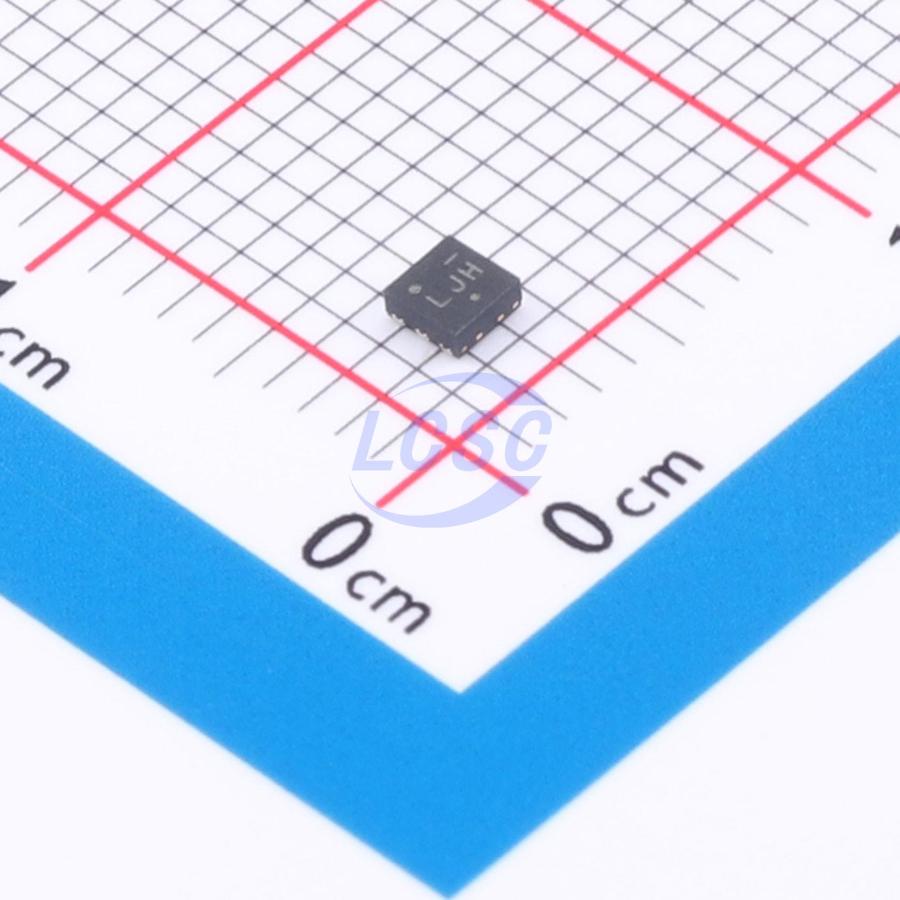

NCV8164AMTW180TAG

The NCV8164 is a 300 mA LDO, next generation of high PSRR, ultra low noise and low dropout regulators with Power Good open collector output. Designed to meet the requirements of RF and sensitive analog circuits, the NCV8164 device provides ultra low noise, high PSRR and low quiescent current. The device also offer excellent load/line transients. The NCV8164 is designed to work with a 1 μF input and a 1 μF output ceramic capacitor. It is available in industry standard TSOP−5, WDFNW6 0.65P, 2 mm x 2 mm and DFNW8 0.65P, 3 mm×3 mm.

Applications

• Communication Systems
• In Vehicle Networking
• Telematics, Infotainment and Clusters
• General Purpose Automotive

Key features

• Operating Input Voltage Range: 1.6 V to 5.5 V
• Available in Fixed Voltage Option: 1.2 V to 5.0 V
• Adjustable Version Reference Voltage: 1.2 V
• ±2% Accuracy Over Load and Temperature
• Ultra Low Quiescent Current Typ. 30 μA
• Standby Current: Typ. 0.1 μA
• Very Low Dropout: 110 mV at 300 mA for 3.3 V Variant
• Ultra High PSRR: Typ. 85 dB at 10 mA, f = 1 kHz
• Ultra Low Noise: 9 μVRMS (Fixed Version)
• Stable with a 1 μF Small Case Size Ceramic Capacitors
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
• AEC−Q100 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
