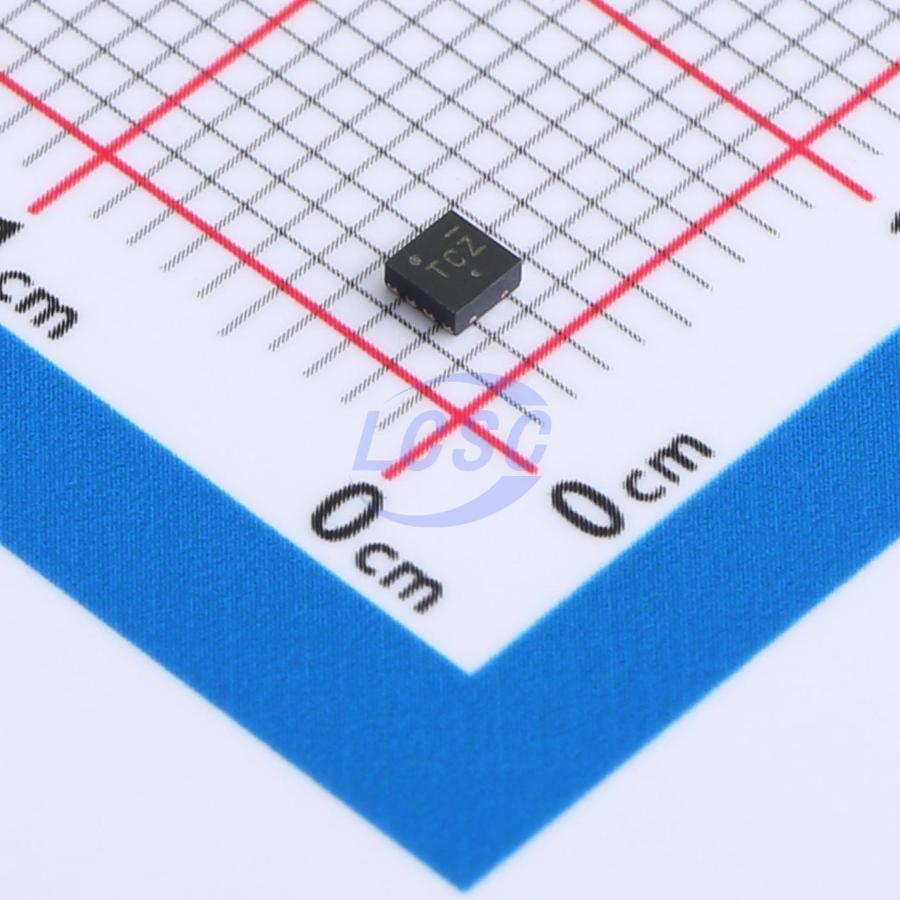

NCV8177AMTW110TCG-A642

The NCV8177 is CMOS LDO regulator featuring 500 mA output current. The input voltage is as low as 1.6 V and the output voltage can be set from 0.75 V. It provides very stable and accurate voltage with low noise and high Power Supply Rejection Ratio (PSRR) suitable for RF applications. The NCV8177 is suitable for powering RF blocks of automotive infotainment systems and other power sensitive device. Due to low power consumption the NCV8177 offers high efficiency and low thermal dissipation. Small 4−pin XDFN4 1.0 mm×1.0 mm or WDFNW8 2 mm x 2 mm packages make the device especially suitable for space constrained applications.

Applications

• Lights
• Instrument Equipment
• Cameras, Camcorders, Sensors

Key features

• Operating Input Voltage Range: 1.6 V to 5.5 V
• Output Voltage Range: 0.7 V to 3.6 V
• Quiescent Current typ. 60 μA
• Low Dropout: 200 mV Typ. at 500 mA, VOUT-NOM = 1.8 V
• High Output Voltage Accuracy ±0.8%
• Stable with Small 1 μF Ceramic Capacitors
• Over−current Protection
• Thermal Shutdown Protection: 175°C
• With (NCV8177A) and Without (NCV8177B) Output Discharge Function
• Available in XDFN4 1 mm x 1 mm x 0.4 mm and WDFNW8 2 mm x 2 mm Packages
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• This is a Pb−Free Device
