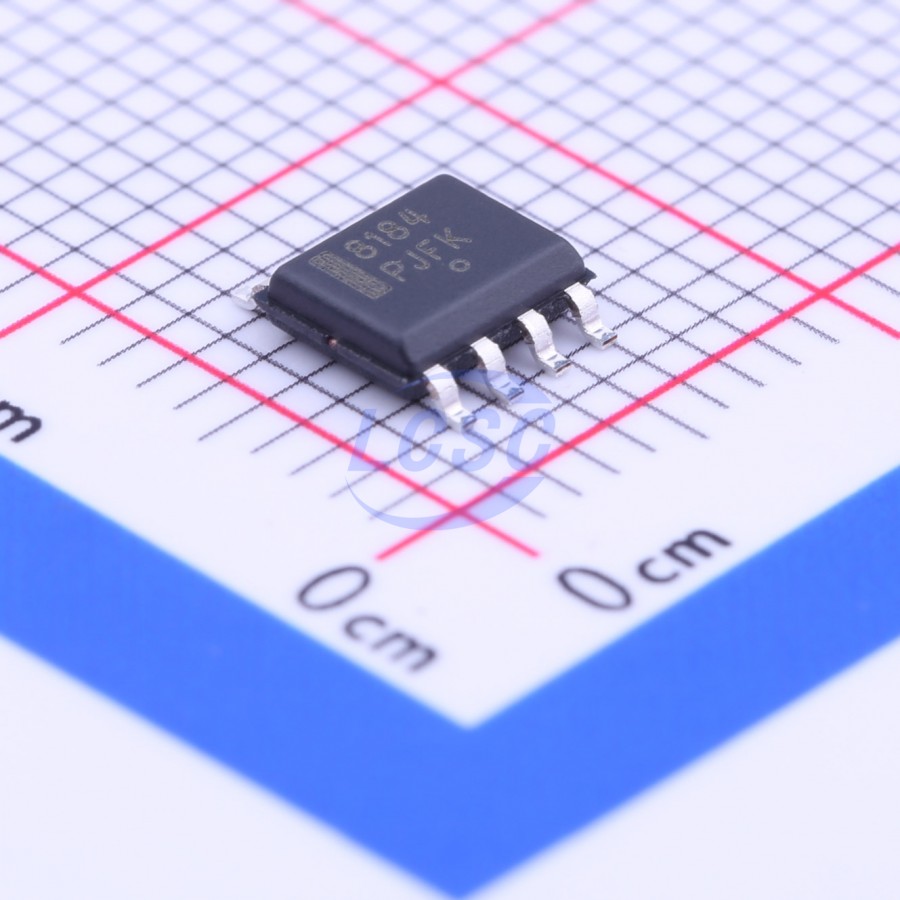

NCV8184DR2G
2.1V~41.4V Positive Adjustable SOIC-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOIC-8ROHS3 CompliantActive
Micropower 70 mA Low Dropout Tracking Regulator/Line Driver
- Manufacturer
- onsemi
- Manufacturer part #
- NCV8184DR2G
- Store part #
- C150044
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,560 in stock
#C150044
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹116.82 | ₹116.82 |
| 10+ | ₹94.11 | ₹941.10 |
| 30+ | ₹82.57 | ₹2,477.10 |
| 100+ | ₹71.21 | ₹7,121.00 |
| 500+ | ₹64.54 | ₹32,270.00 |
| 1,000+ | ₹60.94 | ₹60,940.00 |
1 × ₹116.82
₹116.82
excl. GST
₹137.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCV8184DR2G
₹116.82 for 1 + GST
Specifications
- Output Voltage
- 2.1V~41.4V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Output Current
- 70mA
- Operating Voltage
- 42V
- Features
- Enable control;Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.207 g
Overview
The NCV8184 is a monolithic integrated low dropout tracking voltage regulator designed to provide an adjustable buffered output voltage that closely tracks (±3.0 mV) the reference input. The part can be used in automotive applications with remote sensors, or any situation where it is necessary to isolate the output of your regulator. The NCV8184 also enables the user to bestow a quick upgrade to their module when added current is needed, and the existing regulator cannot provide. The versatility of this part also enables it to be used as a high−side driver.
Applications
- automotive applications with remote sensors
- any situation where it is necessary to isolate the output of your regulator
- high−side driver
Key features
- 70 mA Source Capability
- Output Tracks within ±3.0 mV
- Low Input Voltage Tracking Performance (Works Down to V_REF = 2.1 V_l)
- Low Dropout (0.35 V Typ. @ 50 mA)
- Low Quiescent Current
- Thermal Shutdown
- Wide Operating Range
- Internally Fused Leads in SOIC−8 Package
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
