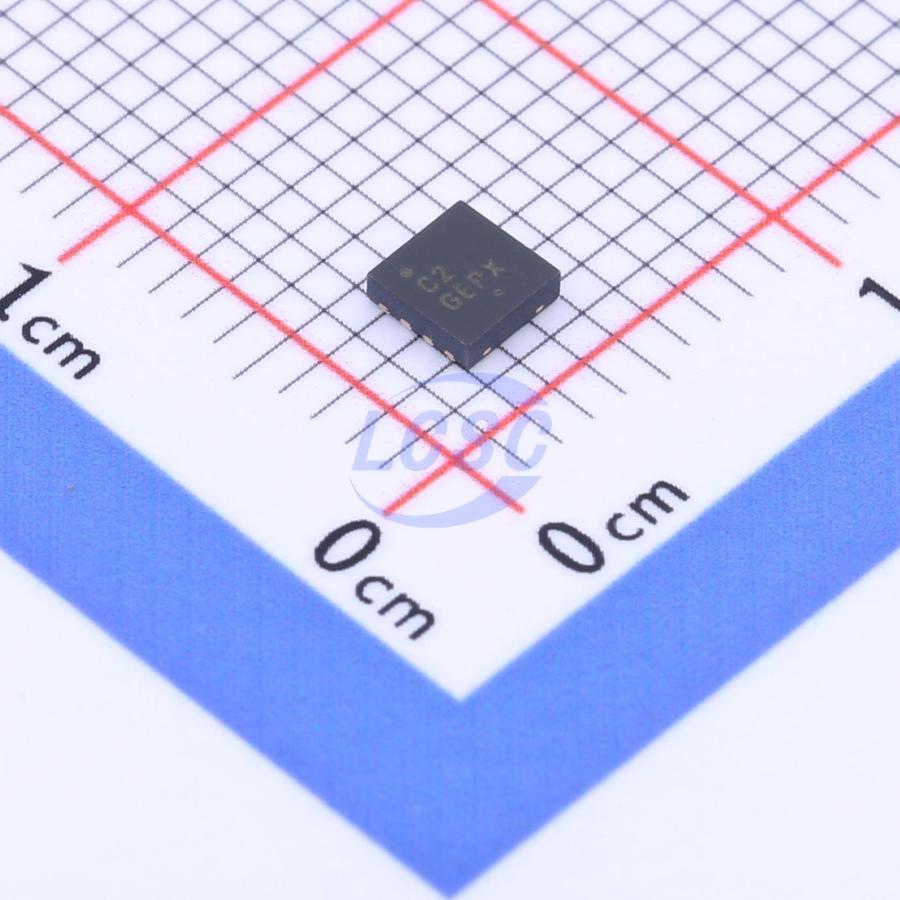

NCV8187AMLEADJTCG
800mV~5.2V Positive Adjustable DFN-8-EP(3x3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DFN-8-EP(3x3)ROHS3 CompliantActive
1.2 A low quiescent current low-dropout regulator
- Manufacturer
- onsemi
- Manufacturer part #
- NCV8187AMLEADJTCG
- Store part #
- C2902006
- Package / case
- DFN-8-EP(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18 in stock
#C2902006
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹151.77 | ₹151.77 |
| 10+ | ₹126.41 | ₹1,264.10 |
| 30+ | ₹112.53 | ₹3,375.90 |
| 100+ | ₹96.92 | ₹9,692.00 |
| 500+ | ₹85.65 | ₹42,825.00 |
| 1,000+ | ₹82.61 | ₹82,610.00 |
1 × ₹151.77
₹151.77
excl. GST
₹179.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCV8187AMLEADJTCG
₹151.77 for 1 + GST
Specifications
- Output Voltage
- 800mV~5.2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 30uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 1.75A
- Output Type
- Adjustable
- Features
- Enable control;Built-in soft-start;Operating status indication;Over Current Protection;Thermal shutdown;Output discharge
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.08 g
Overview
The NCV8187 is 1.2 A LDO Linear Voltage Regulator. It is a very stable and accurate device with low quiescent current consumption (typ. 30 μA over the full temperature range), low dropout, low output noise and very good PSRR. The regulator incorporates several protection features such as Thermal Shutdown, Soft Start, Current Limiting and also Power Good Output signal for easy MCU interfacing.
Applications
- Wireless Chargers and Portable Equipment
- Smart Camera and Robotic Vision Systems
- Telecommunication and Networking Systems
- Infotainment and Cluster
- Modular Platforms for Dashboard Display
- Internet Connection Sharing (ICS) Gateway Server Applications
- General Purpose Automotive
Key features
- Operating Input Voltage Range: 1.5 V to 5.5 V
- Adjustable and Fixed Voltage Options Available: 0.8 V to 5.2 V
- Low Quiescent Current: typ. 30 μA over Temperature
- ±2% Accuracy Over Full Load, Line and Temperature variations
- PSRR: 75 dB at 1 kHz
- Low Noise: typ. 15 μV_RMS from 10 Hz to 100 kHz
- Stable With Small 10 μF Ceramic Capacitor
- Soft−start to Reduce Inrush Current and Overshoots
- Thermal Shutdown and Current Limit Protection
- Power Good Signal Extends Application Range
- Available in WDFN6 and WDFNW6 2x2, DFN6 3x3, DFNW6 3x3, DFNW8 3x3 and DPAK−5 with Wettable Flank (pin edge plating)
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
