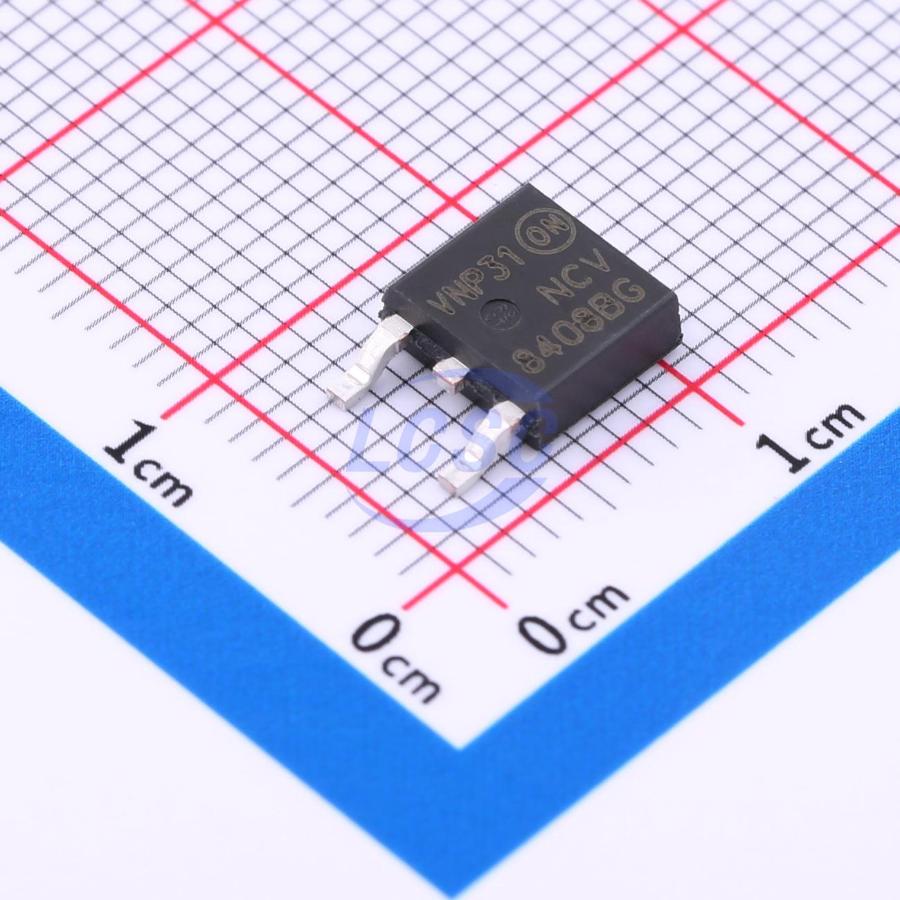

NCV8408BDTRKG
1 Active High 10A Low Side Switch DPAK Power Distribution Switches, Load Drivers RoHS
DPAKROHS3 CompliantActive
Self-Protected Low Side Driver with Temperature and Current Limit
- Manufacturer
- onsemi
- Manufacturer part #
- NCV8408BDTRKG
- Store part #
- C500319
- Package / case
- DPAK
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,160 in stock
#C500319
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹141.68 | ₹141.68 |
| 10+ | ₹117.56 | ₹1,175.60 |
| 30+ | ₹104.09 | ₹3,122.70 |
| 100+ | ₹89.10 | ₹8,910.00 |
| 500+ | ₹82.36 | ₹41,180.00 |
| 1,000+ | ₹79.31 | ₹79,310.00 |
1 × ₹141.68
₹141.68
excl. GST
₹167.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NCV8408BDTRKG
₹141.68 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Latch protection
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 10A
- RDS(on)
- 55mΩ
- Operating Voltage
- 42V
- Type
- Low Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.46 g
Overview
NCV8408/B is a single channel protected Low−Side Smart Discrete device. The protection features include overcurrent, overtemperature, ESD and integrated Drain−to−Gate clamping for overvoltage protection. Thermal protection includes a latch which can be reset by toggling the input. This device is suitable for harsh automotive environments.
Applications
- Switch a Variety of Resistive, Inductive and Capacitive Loads
- Can Replace Electromechanical Relays and Discrete Circuits
- Automotive / Industrial
Key features
- Short Circuit Protection
- Thermal Shutdown with Latched Reset
- Gate Input Current Flag During Latched Fault Condition
- Overvoltage Protection
- Integrated Clamp for Inductive Switching
- ESD Protection
- dV/dt Robustness
- Analog Drive Capability (Logic Level Input)
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
