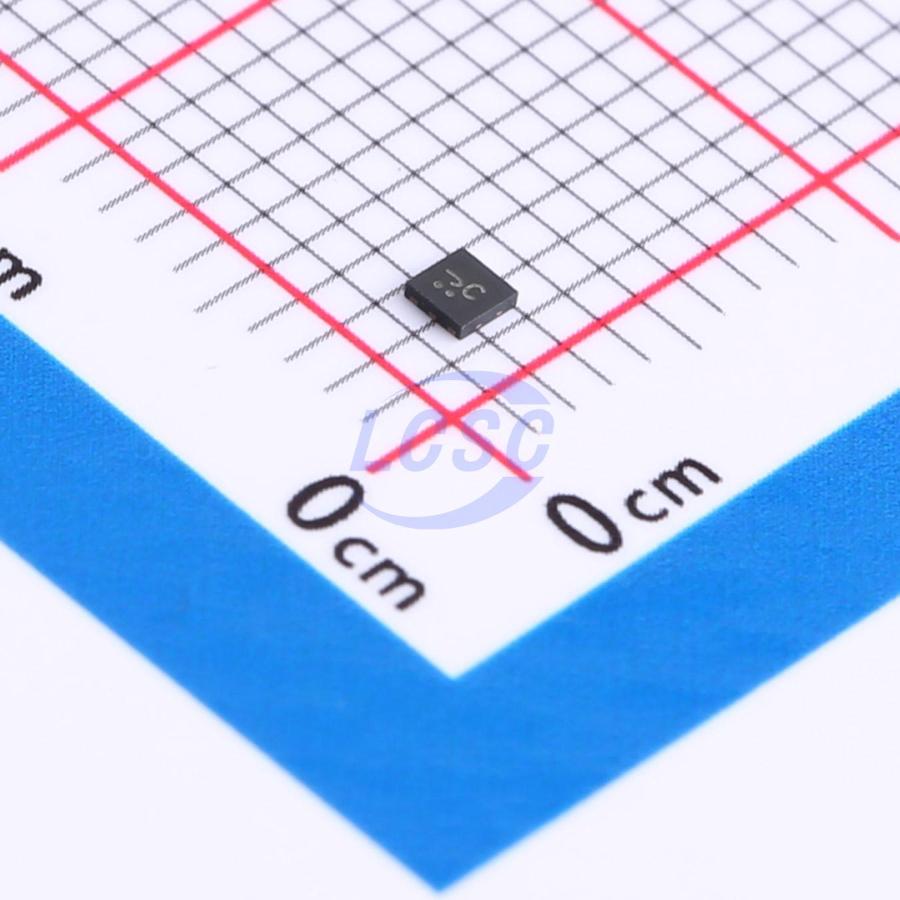

NCV8703MX18TCG

The NCV8703 is a low noise, low power consumption and low dropout Linear Voltage Regulator. With its excellent noise and PSRR specifications, the device is ideal for use in products utilizing RF receivers, imaging sensors, audio processors or any component requiring an extremely clean power supply. The NCV8703 uses an innovative Adaptive Ground Current circuit to ensure ultra low ground current during light load conditions.

Applications

• Satellite Radio Receivers, GPS
• Rear View Camera, Electronic Mirrors, Lane Change Detectors
• Portable Entertainment Systems
• Other Battery Powered Applications

Key features

• Operating Input Voltage Range: 2.0 V to 5.5 V
• Available in Fixed Voltage Options: 0.8 to 3.5 V
• Ultra−Low Quiescent Current of Typ. 12 μA
• Ultra−Low Noise: 13 μV_RMS from 100 Hz to 100 kHz
• Very Low Dropout: 180 mV Typical at 300 mA
• ±2% Accuracy Over Load/Line/Temperature
• High PSRR: 68 dB at 1 kHz
• Internal Soft−Start to Limit the Turn−On Inrush Current
• Thermal Shutdown and Current Limit Protections
• Stable with a 1 μF Ceramic Output Capacitor
• Available in TSOP−5 and XDFN 1.5 x 1.5 mm Package
• Active Output Discharge for Fast Turn−Off
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These are Pb−Free Devices
