onsemiDatasheet (PDF)

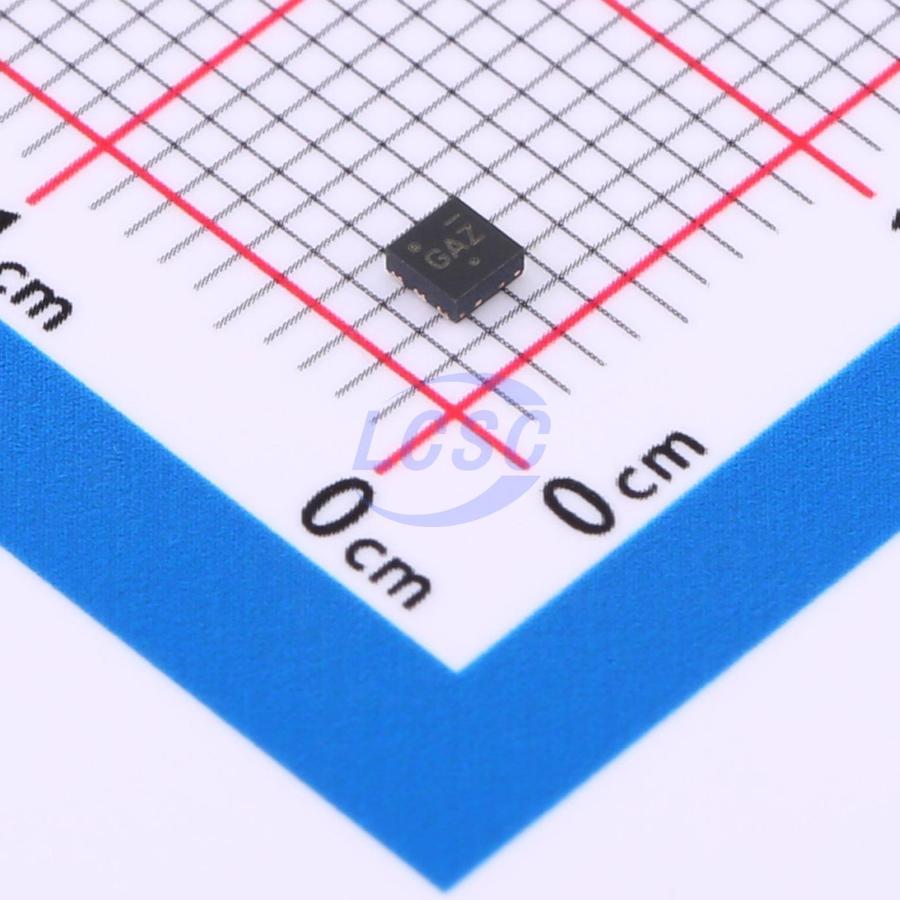

NCV8711BMTWADJTBG
1.2V~17V Positive Adjustable TDFN-6-EP(2x2) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TDFN-6-EP(2x2)ROHS3 CompliantActive
100 mA, 18 V, 1 μA IQ LDO Regulator with PG
- Manufacturer
- onsemi
- Manufacturer part #
- NCV8711BMTWADJTBG
- Store part #
- C893289
- Package / case
- TDFN-6-EP(2x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C893289
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹47.61 | ₹47.61 |
| 10+ | ₹46.54 | ₹465.40 |
| 30+ | ₹45.70 | ₹1,371.00 |
| 100+ | ₹45.06 | ₹4,506.00 |
1 × ₹47.61
₹47.61
excl. GST
₹56.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCV8711BMTWADJTBG
₹47.61 for 1 + GST
Specifications
- Output Voltage
- 1.2V~17V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 1.8uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 18V
- Output Type
- Adjustable
- Features
- Enable control;Operating status indication;Built-in soft-start;Over Current Protection;Thermal shutdown;Input under-voltage protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.037 g
Overview
The NCV8711 device is based on unique combination of features − very low quiescent current, fast transient response and high input and output voltage ranges. The NCV8711 is CMOS LDO regulator designed for up to 18 V input voltage and 100 mA output current. Quiescent current of only 1 μA makes this device ideal solution for battery− powered, always−on systems. Several fixed output voltage versions are available as well as the adjustable version. The device (version B) implements power good circuit (PG) which indicates that output voltage is in regulation. This signal could be used for power sequencing or as a microcontroller reset. Internal short circuit and over temperature protections saves the device against overload conditions.
Applications
- Body Control Modules
- LED Lighting
- On Board Charger
- General Purpose Automotive
Key features
- Operating Input Voltage Range: 2.7 V to 18 V
- Output Voltage: 1.2 V to 17 V
- Capable of Sourcing 140 mA Peak Output Current
- Very Low Quiescent Current: 1 μA typ.
- Low Dropout: 215 mV typ. at 100 mA
- Output Voltage Accuracy ±1%
- Power Good Output (Version B)
- Stable with Small 1 μF Ceramic Capacitors
- Built−in Soft Start Circuit to Suppress Inrush Current
- Over−Current and Thermal Shutdown Protections
- Available in Small TSOP−5 and WDFNW6 (2x2) Packages
- These Devices are Pb−Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCP711BMTADJTBG#C892731onsemi · WDFN-6-EP(2x2) | onsemi | WDFN-6-EP(2x2) | 1 | ₹41.74 · 1 in stock | View |
