onsemiDatasheet (PDF)

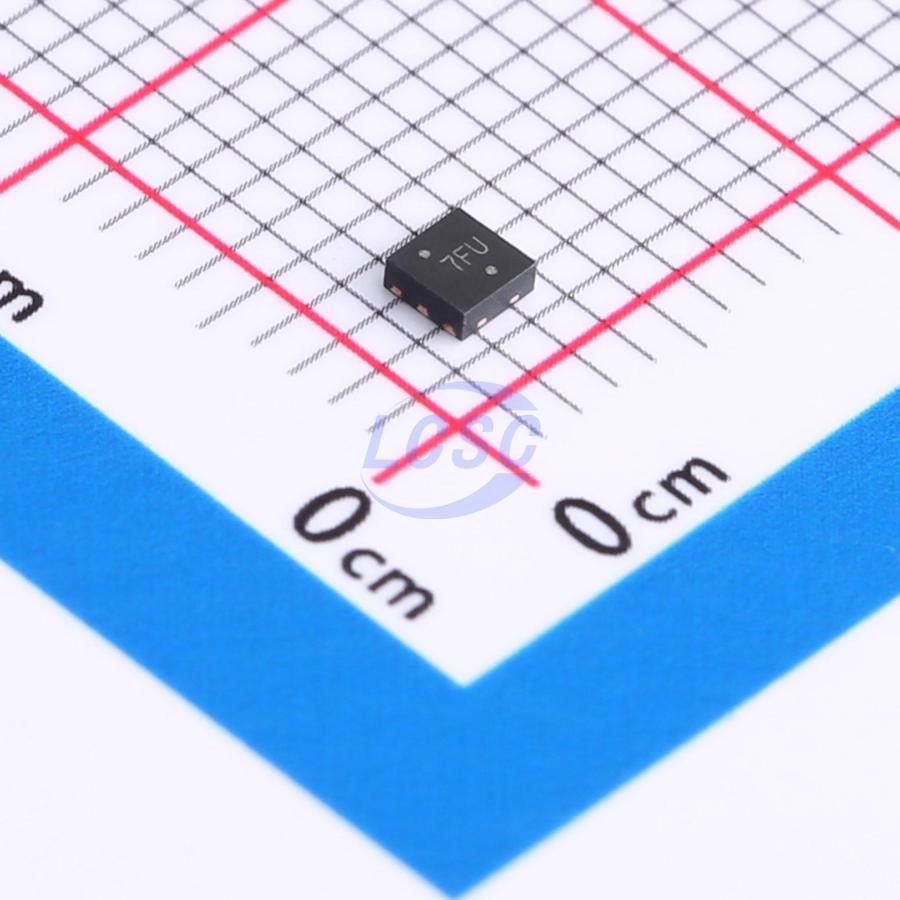

NCV8716MT30TBG
3V Positive Fixed WDFN-6(2x2) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
WDFN-6(2x2)ROHS3 CompliantActive
Low Dropout Regulator Ultra-Low lq, Wide Input Voltage
- Manufacturer
- onsemi
- Manufacturer part #
- NCV8716MT30TBG
- Store part #
- C893307
- Package / case
- WDFN-6(2x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C893307
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹117.77 | ₹117.77 |
| 10+ | ₹115.17 | ₹1,151.70 |
| 30+ | ₹113.42 | ₹3,402.60 |
| 100+ | ₹111.67 | ₹11,167.00 |
1 × ₹117.77
₹117.77
excl. GST
₹138.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCV8716MT30TBG
₹117.77 for 1 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 3.4uA
- Output Configuration
- Positive
- Output Current
- 80mA
- Operating Voltage
- 24V
- Output Type
- Fixed
- Features
- Thermal shutdown;Over Current Protection;Input under-voltage protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.06 g
Overview
The NCV8716 is 80 mA LDO Linear Voltage Regulator. It is a very stable and accurate device with ultra−low ground current consumption [4.7 μA over the full output load range) and a wide input voltage range (up to 24 V). The regulator incorporates several protection features such as Thermal Shutdown and Current Limiting.
Applications
- Portable Equipment
- Communication Systems
Key features
- Operating Input Voltage Range: 2.5 V to 24 V
- Fixed Voltage Options Available: 1.5 V to 5.0 V
- Ultra Low Quiescent Current: Max. 5.8 μA over Temperature
- ±2% Accuracy over Full Load, Line and Temperature Variations
- PSRR: 60 dB at 100 kHz
- Noise: 200 μVRMS from 200 Hz to 100 kHz
- Thermal Shutdown and Current Limit Protection
- Available in wDFN6, 2x2x0.8 mm Package
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable; Device Temperature Grade 1: -40℃ to +125℃ Ambient Operating Temperature Range
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCP730BMT300TBG#C892820onsemi · WDFN-6-EP(2x2) | onsemi | WDFN-6-EP(2x2) | 100 | ₹217.47 · 100 in stock | View |
 | TPS70930DRVR#C2860654TI · WSON-6-EP(2x2) | TI | WSON-6-EP(2x2) | 10 | ₹199.06 · 10 in stock | View |
 | AP7383-30FDC-7#C7214746DIODES · UDFN2020-6 | DIODES | UDFN2020-6 | 30 | ₹25.19 · 30 in stock | View |
| NCP716MT30TBG#C892753onsemi · WDFN-6-EP(2x2) | onsemi | WDFN-6-EP(2x2) | On request | ₹53.44 · 0 in stock | View | |
| TPS715A30DRVT#C2870060TI · WSON-6-EP(2x2) | TI | WSON-6-EP(2x2) | On request | ₹130.18 · 0 in stock | View | |
