NCV8720BMT180TBG

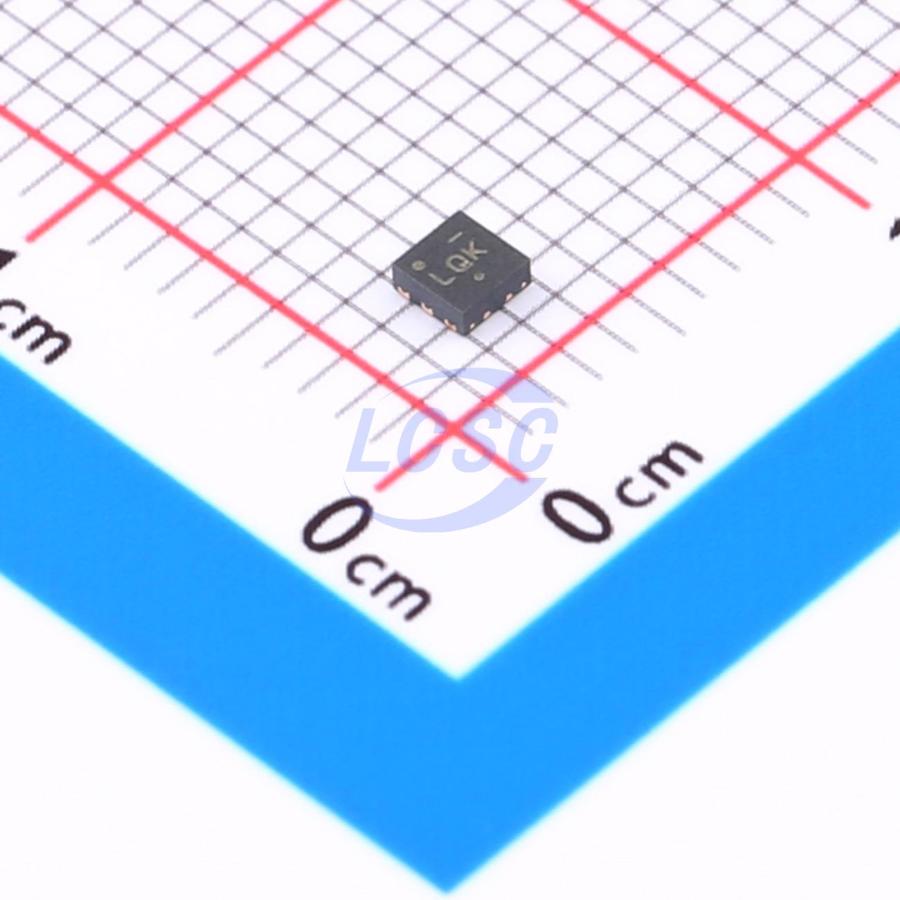

The NCV8720 is a 350 mA VLDO equipped with NMOS pass transistor and a separate bias supply voltage (VBIAS). The device provides very stable, accurate output voltage with low noise suitable for space constrained, noise sensitive applications. In order to optimize performance for battery operated applications, the NCV8720 features low IQ consumption. The NCV8720 is offered in WDFN6 2 mm x 2 mm package, wettable flanks option available for Enhanced Optical Inspection.

Applications

• Automotive, Consumer and Industrial Equipment Point of Load Regulation
• Battery−Powered Equipment
• FPGA, DSP and Logic Power Supplies
• Switching Power Supply Post Regulation
• Cameras, DVRs, STB and Camcorders

Key features

• Input Voltage Range: 0.8 V to 5.5 V
• Bias Voltage Range: 2.4 V to 5.5 V
• Fixed Output Voltage Device
• Output Voltage Range: 0.8 V to 2.1 V
• ±2% Accuracy over Temperature
• Ultra−Low Dropout: 110 mV typically at 350 mA
• Very Low Bias Input Current of Typ. 80 μA
• Very Low Bias Input Current in Disable Mode: Typ. 0.5 μA
• Low Noise, High PSRR
• Built−In Soft−Start with Monotonic VOUT Rise
• Stable with a 2.2 μF Ceramic Capacitor
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable; Device Temperature Grade 1: -40°C to +125°C Ambient Operating Temperature Range
• These are Pb−Free Devices
