HXY MOSFET

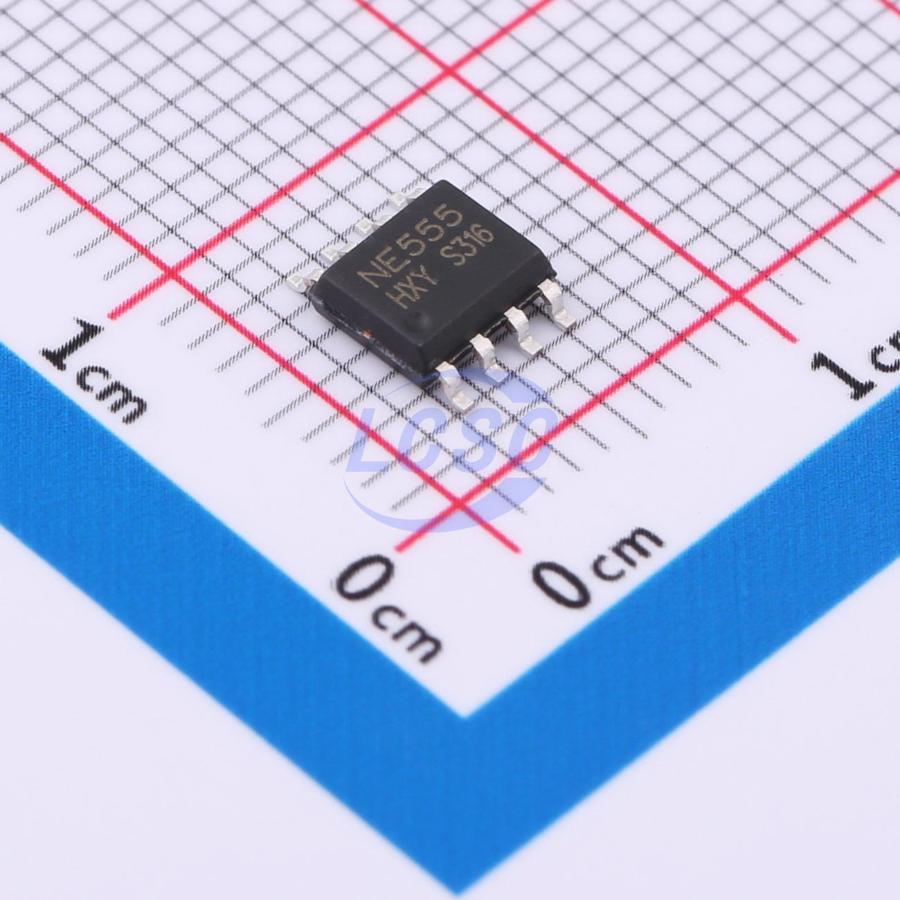

NE555-HXY

SOP-8 Programmable Timers and Oscillators

SOP-8RoHSActive

Manufacturer: HXY MOSFET
Manufacturer part #: NE555-HXY
Store part #: C7427359
Package / case: SOP-8
Category: Programmable Timers and Oscillators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,850 in stock

#C7427359

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹8.73	₹87.30
100+	₹6.96	₹696.00
300+	₹6.07	₹1,821.00
2,500+	₹5.13	₹12,825.00
5,000+	₹4.60	₹23,000.00
10,000+	₹4.34	₹43,400.00

Quantity (min 10, multiples of 10)

10 × ₹8.73

₹87.30

excl. GST

₹103.01 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

NE555-HXY

₹87.30 for 10 + GST

Specifications

Features: Adjustable duty cycle oscillation;Reset function
Operating Temperature: 0℃~+70℃
Output Current: 200mA
Timer Number: 1
Voltage - Supply: 5V~15V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.186 g

Overview

The NE555 is a precision timing pulse control circuit. In monostable mode, the delay time is controlled by one external resistor and one capacitor; in astable mode, the frequency and duty cycle are controlled by two external resistors and one capacitor.

Applications

Precision timer
Pulse generator
Delay generator
Sequential timer

Key features

High output current (200mA)
Adjustable duty cycle
High temperature stability: 0.005%/°C
Timing range from microseconds to hours
Stage-off time less than 2μs

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	SA555DR-HXY#C20616347HXY MOSFET · SOP-8	HXY MOSFET	SOP-8	50	₹11.50 · 50 in stock	View
	TLC555-HXY#C7427361HXY MOSFET · SOP-8	HXY MOSFET	SOP-8	55	₹27.80 · 55 in stock	View
