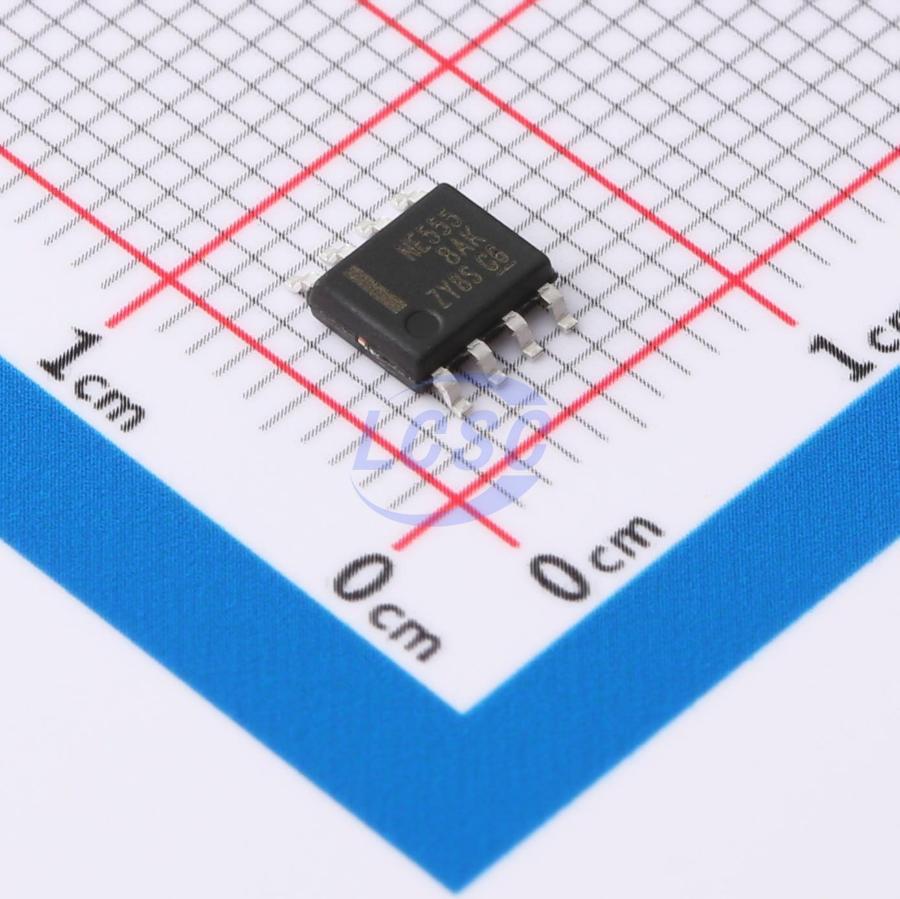

NE555DR-MS
SOP-8 Programmable Timers and Oscillators
NE555 High-precision Timing Pulse Bipolar Integrated Circuit
- Manufacturer
- MSKSEMI
- Manufacturer part #
- NE555DR-MS
- Store part #
- C7434189
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,130 in stock
#C7434189
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.89 | ₹68.90 |
| 100+ | ₹5.44 | ₹544.00 |
| 300+ | ₹4.71 | ₹1,413.00 |
| 2,500+ | ₹4.15 | ₹10,375.00 |
| 5,000+ | ₹3.72 | ₹18,600.00 |
| 10,000+ | ₹3.49 | ₹34,900.00 |
10 × ₹6.89
₹68.90
excl. GST
₹81.30 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NE555DR-MS
₹68.90 for 10 + GST
Specifications
- Supply Current
- 1.5mA
- Features
- Adjustable duty cycle oscillation;Reset function
- Operating Temperature
- -20℃~+70℃
- Output Current
- 200mA
- Timer Number
- 1
- Voltage - Supply
- 4.5V~15V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.179 g
Overview
The NE555 is a bipolar IC capable of generating high-precision timing pulses. It consists of four internal circuit blocks: a threshold comparator, a trigger comparator, an RS flip-flop, and an output stage. With a minimal number of external passive components, it can be configured into timing trigger circuits, PWM circuits, audio oscillators, and more. Widely used in toys, traffic signaling, automation control, and other applications.
Applications
- Audio pulse generator, frequency divider
- Device timing, traffic light control, access control
- Pulse width modulation, pulse phase modulation
- Industrial control
Key features
- Excellent timing accuracy
- High output drive capability
- Good temperature stability
- Maximum operating frequency up to 500KHz and above
- TTL-compatible
- Timing range from microseconds to hours (precisely controlled via external RC components)
