UTCDatasheet (PDF)

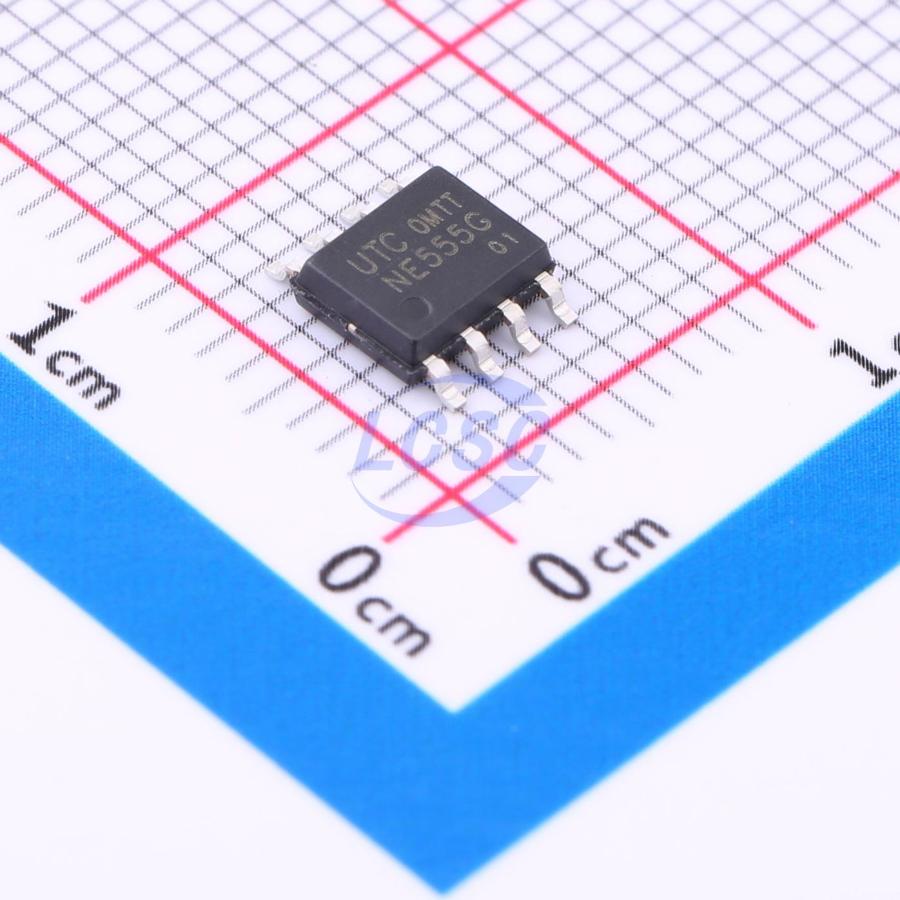

NE555G-S08-R
SOIC-8 Programmable Timers and Oscillators
SOIC-8RoHSActive
Single Timer
- Manufacturer
- UTC
- Manufacturer part #
- NE555G-S08-R
- Store part #
- C75529
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,815 in stock
#C75529
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.29 | ₹61.45 |
| 50+ | ₹9.79 | ₹489.50 |
| 150+ | ₹8.55 | ₹1,282.50 |
| 500+ | ₹7.61 | ₹3,805.00 |
| 2,500+ | ₹6.22 | ₹15,550.00 |
| 5,000+ | ₹5.83 | ₹29,150.00 |
5 × ₹12.29
₹61.45
excl. GST
₹72.51 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NE555G-S08-R
₹61.45 for 5 + GST
Specifications
- Supply Current
- 3mA
- Features
- Adjustable duty cycle oscillation
- Output Current
- 200mA
- Timer Number
- 1
- Voltage - Supply
- 4.5V~16V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.22 g
Overview
The UTC NE555 is a highly stable timer integrated circuit. It can be operated in both Astable and Monostable mode. With monostable operation, the time delay is precisely controlled by one external and one capacitor. With a stable operation as an oscillator the frequency and duty cycle are both accurately controlled with two external resistors and one capacitor.
Key features
- High current driver capability (=200mA).
- Adjustable duty cycle.
- Timing from μs to hours.
- Turn off time less than 2μs.
- Operates in both astable and monostable modes.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM555CM/NOPB#C1520196TI · SOIC-8 | TI | SOIC-8 | 25 | ₹131.25 · 25 in stock | View |
 | NE555DR-CN#C42436866ChipNobo · SOP-8 | ChipNobo | SOP-8 | 5,600 | ₹8.71 · 5,600 in stock | View |
 | NE555DBS#C51927331GREENMICRO · SOP-8 | GREENMICRO | SOP-8 | 13,580 | ₹4.31 · 13,580 in stock | View |
 | LM555CMX/NOPB#C543060TI · SOIC-8 | TI | SOIC-8 | 1,107 | ₹125.98 · 1,107 in stock | View |
 | NE555DTR(XBLW)#C18723595XBLW · SOP-8 | XBLW | SOP-8 | 1,23,840 | ₹5.05 · 1,23,840 in stock | View |
