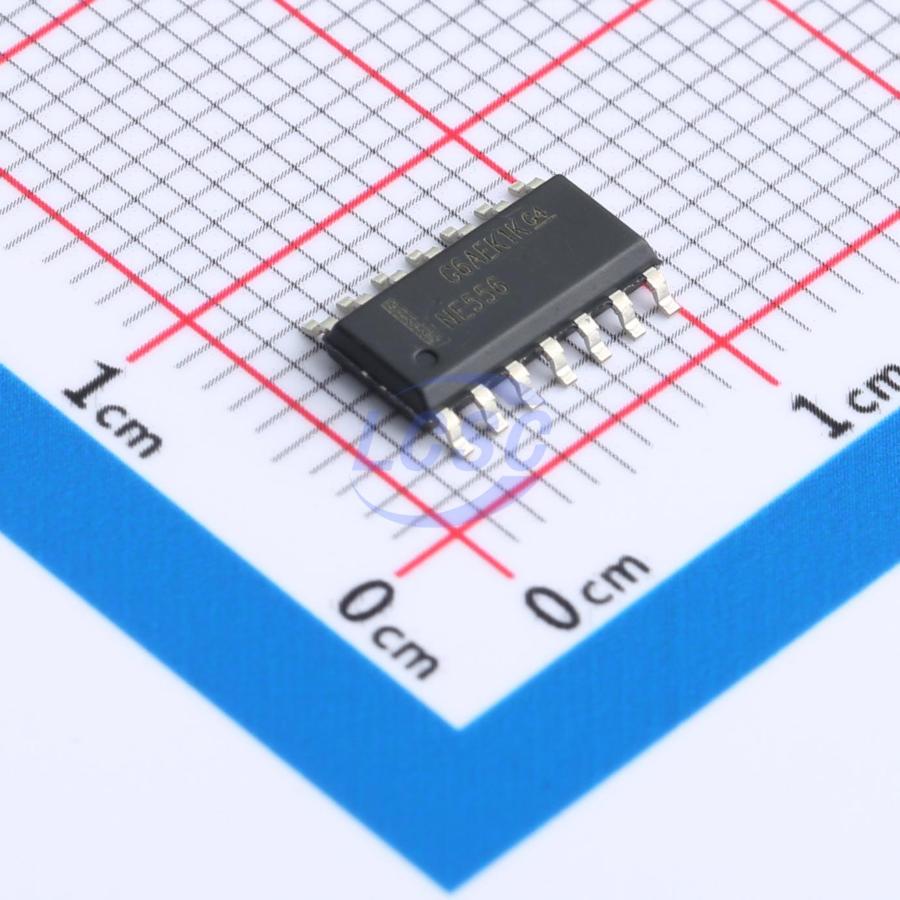

NE556DR-MS

The NE556DR-MS integrates two 556 general-purpose timer circuits. These two timer circuits share a common power supply (VCC) and ground (GND), while all other circuitry and pins are independent of each other. Each general-purpose timer circuit consists of six functional blocks: a threshold comparator, a trigger comparator, an RS flip-flop, a reset input, a discharge stage, and a trigger input. Each timer circuit can achieve precise timing or generate oscillating waveforms through externally connected resistors and capacitors.

Applications

• Precision timing
• Pulse generator
• Audio pulse generator
• Industrial control
• Pulse shaping
• Pulse width modulation
• Pulse phase modulation
• Delay generator
• Frequency divider
• Traffic light control

Key features

• Dual independent general-purpose timer circuits
• High output current up to 200mA
• Timing range from microseconds to hours
• Excellent temperature stability
• Astable and monostable operating modes
