onsemiDatasheet (PDF)

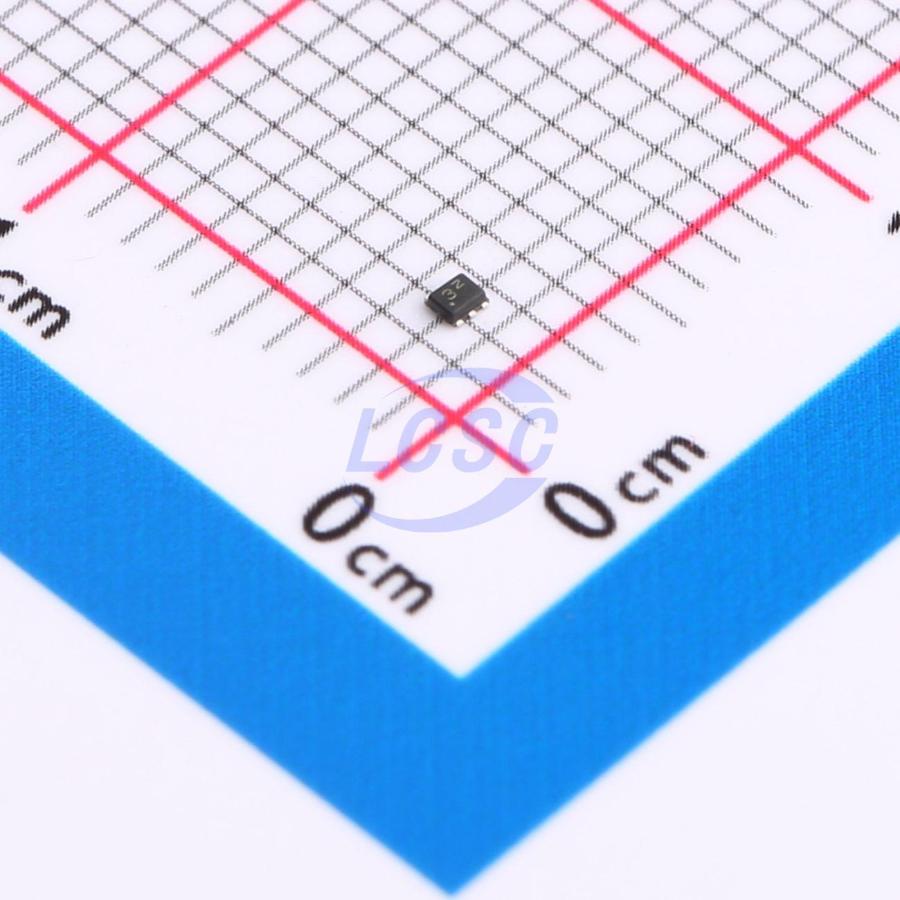

NL17SG32P5T5G
500nA 900mV~3.6V 4.4ns@3.3V,30pF SOT-953 Gates and Inverters RoHS
SOT-953ROHS3 CompliantActive
Single 2-lnput OR Gate
- Manufacturer
- onsemi
- Manufacturer part #
- NL17SG32P5T5G
- Store part #
- C896302
- Package / case
- SOT-953
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,490 in stock
#C896302
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.01 | ₹55.05 |
| 50+ | ₹9.74 | ₹487.00 |
| 150+ | ₹9.10 | ₹1,365.00 |
| 500+ | ₹8.63 | ₹4,315.00 |
| 2,500+ | ₹8.26 | ₹20,650.00 |
| 5,000+ | ₹8.06 | ₹40,300.00 |
5 × ₹11.01
₹55.05
excl. GST
₹64.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
NL17SG32P5T5G
₹55.05 for 5 + GST
Specifications
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 700mV~800mV
- Input Logic Level - High
- 1.7V~2V
- Operating Temperature
- -55℃~+125℃
- Output Logic Level - High
- 2.48V
- Quiescent Current(Iq)
- 500nA
- Voltage - Supply
- 900mV~3.6V
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Output Logic Level - Low
- 400mV
- Propagation Delay
- 4.4ns@3.3V,30pF
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.01 g
Overview
The NL17SG32 MiniGate is an advanced high−speed CMOS 2−input OR gate in ultra−small footprint. The NL17SG32 input structures provides protection when voltages up to 4.6 V are applied.
Key features
- Wide Operating VCC Range: 0.9 V to 3.6 V
- High Speed: tpD = 2.4 ns (Typ) at VCC = 3.0 V, CL = 15 pF
- Low Power Dissipation: Icc = 0.5 μA (Max) at TA = 25 ℃
- 4.6 V Overvoltage Tolerant (OVT) Input Pins
- Ultra−Small Packages
- These are Pb−Free and Halide−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| 7UL1G32FS,LF#C5917502TOSHIBA · SOT-953 | TOSHIBA | SOT-953 | On request | Price on request | Quote | |
