onsemiDatasheet (PDF)

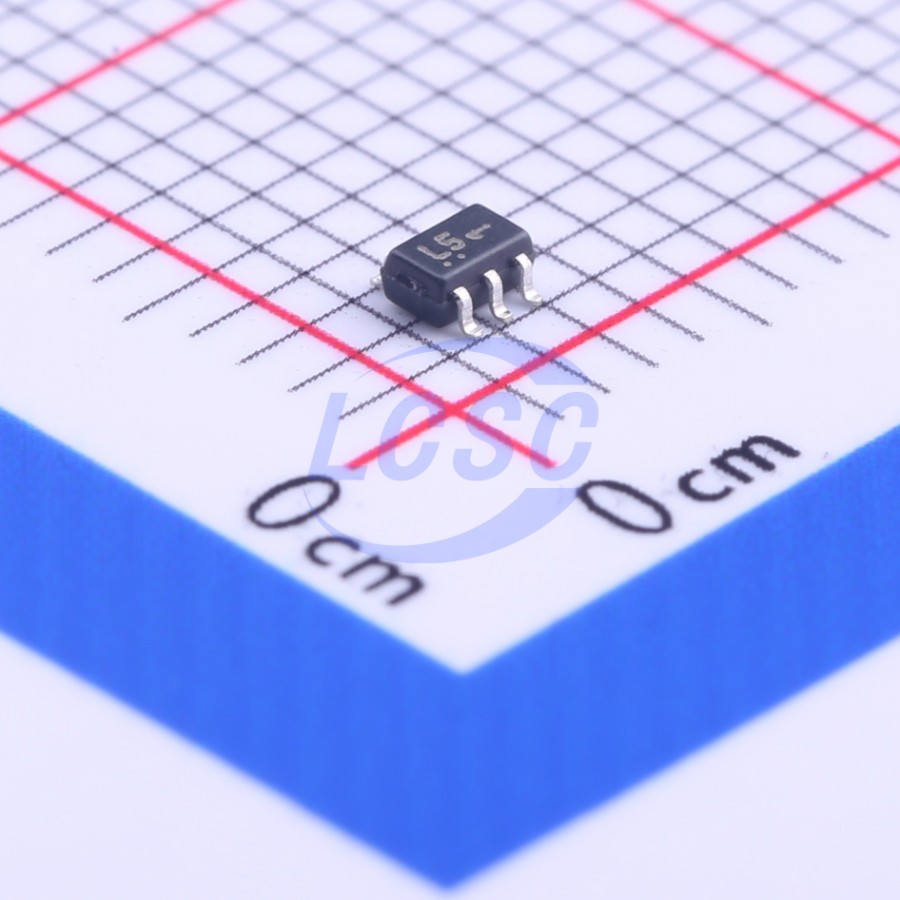

NL17SZ04DFT2G
1.65V~5.5V 4.3ns@5V,50pF 10uA 1 SOT-353 Gates and Inverters RoHS
SOT-353ROHS3 CompliantActive
Single Inverter
- Manufacturer
- onsemi
- Manufacturer part #
- NL17SZ04DFT2G
- Store part #
- C152305
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,440 in stock
#C152305
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.51 | ₹75.10 |
| 100+ | ₹6.09 | ₹609.00 |
| 300+ | ₹5.38 | ₹1,614.00 |
| 3,000+ | ₹4.46 | ₹13,380.00 |
| 6,000+ | ₹4.02 | ₹24,120.00 |
| 9,000+ | ₹3.81 | ₹34,290.00 |
10 × ₹7.51
₹75.10
excl. GST
₹88.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NL17SZ04DFT2G
₹75.10 for 10 + GST
Specifications
- Logic Family
- 17SZ
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 4.3ns@5V,50pF
- Features
- Power shutdown protection
- Operating Temperature
- -55℃~+125℃
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
The NL17SZ04 is an inverter in three tiny footprint packages. The device performs much as LCX multi−gate products in speed and drive.
Key features
- Tiny SOT−353, SOT−553 and SOT−953 Packages
- 24 mA Sink and Source Output Capability
- Over−Voltage Tolerant Inputs and Outputs
- Pin For Pin with NC7SZ04P5X, TC7SZ04FU and TC7SZ04AFE
- Chip Complexity: FETs = 20
- Designed for 1.65 V to 5.5 V VCC Operation
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
