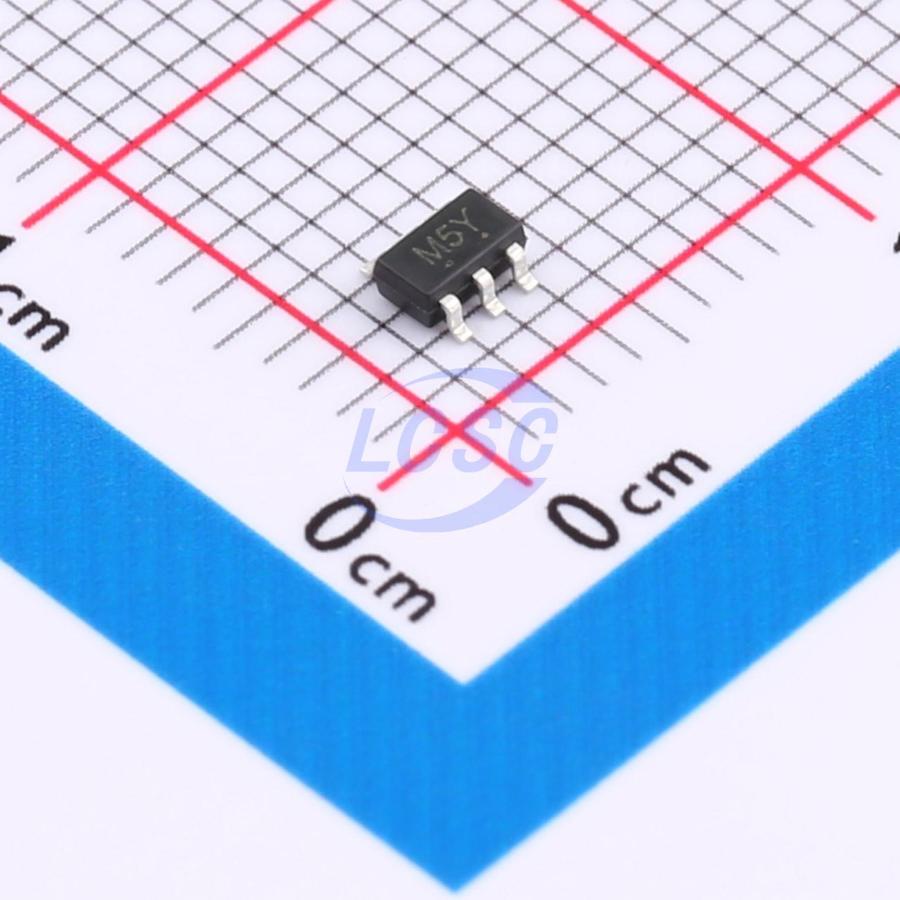

NL27WZ04DTT1G-TP
1.65V~5.5V 1.9ns@5V,50pF 10uA 2 SOT-23-6 Gates and Inverters
SOT-23-6RoHSActive
DUAL INVERTER GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NL27WZ04DTT1G-TP
- Store part #
- C41408013
- Package / case
- SOT-23-6
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,450 in stock
#C41408013
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.49 | ₹84.90 |
| 100+ | ₹6.77 | ₹677.00 |
| 300+ | ₹5.91 | ₹1,773.00 |
| 1,000+ | ₹5.27 | ₹5,270.00 |
| 5,000+ | ₹4.75 | ₹23,750.00 |
| 10,000+ | ₹4.48 | ₹44,800.00 |
10 × ₹8.49
₹84.90
excl. GST
₹100.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NL27WZ04DTT1G-TP
₹84.90 for 10 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 1.9ns@5V,50pF
- Output Logic Level - Low
- 450mV;300mV;400mV;550mV
- Features
- Power shutdown protection;Power-off protection function
- Input Logic Level - High
- 1.7V;2V
- Input Logic Level - Low
- 700mV;800mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.2V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 2
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
This device has power-down protective circuit, preventing device destruction when it is powered down.
Applications
- AV Receiver
- Audio Dock: Portable
- IP Phones: Wired and Wireless
- Embedded PC
- Personal Digital Assistant(PDA)
- Power: Telecom DC/DC Module: Analog and Digital
Key features
- Operation voltage range: 1.65~5.5V
- Inputs Accept Voltages up to 5.5 V Allowing Down Translation to VCC
- ±24 mA output drive (VCC = 3.3V)
- Low Power Consumption, 10 - μA Max ICC
- ESD Protection Exceeds JESD 22 - 2000 - V Human - Body Model (A114 - A)
- 200 - V Machine Model (A115 - A)
- 1000 - V Charged - Device Model (C101)
