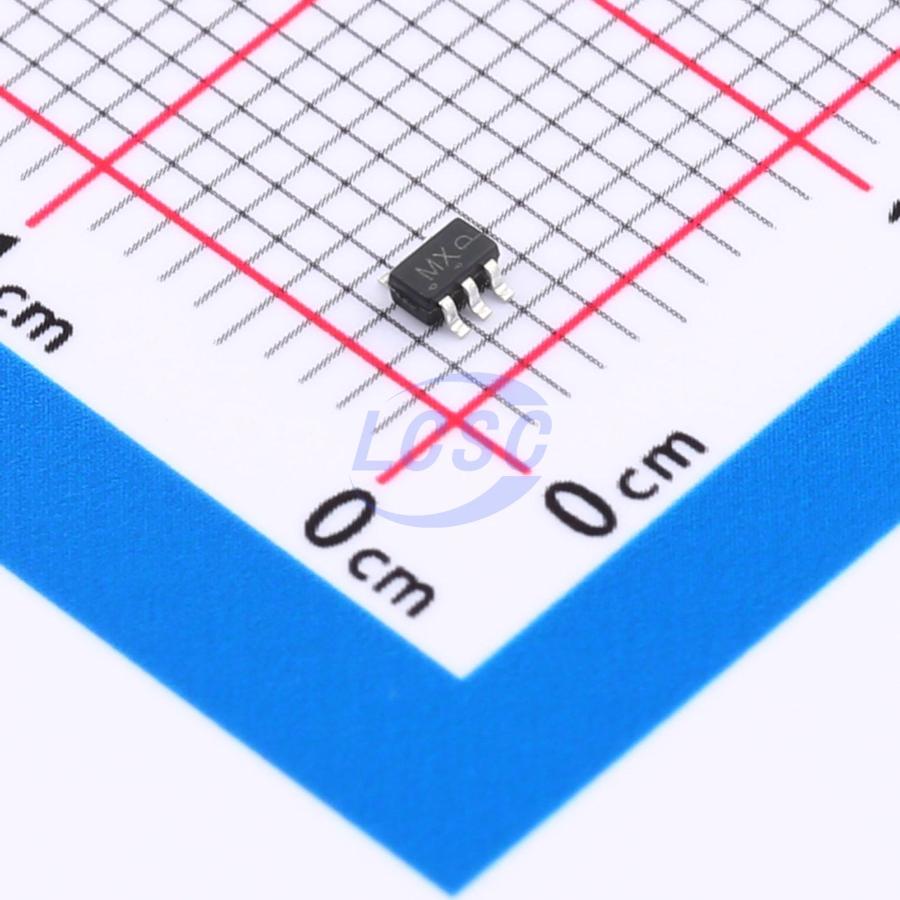

NL27WZ17DFT2G-TP
Schmitt trigger 1.65V~5.5V 4.3ns@5V,50pF 10uA 2 SOT-363 Gates and Inverters
SOT-363RoHSActive
DUAL SCHMITT-TRIGGER BUFFER
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NL27WZ17DFT2G-TP
- Store part #
- C41408018
- Package / case
- SOT-363
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,510 in stock
#C41408018
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.06 | ₹80.60 |
| 100+ | ₹6.34 | ₹634.00 |
| 300+ | ₹5.48 | ₹1,644.00 |
| 3,000+ | ₹4.83 | ₹14,490.00 |
| 6,000+ | ₹4.31 | ₹25,860.00 |
| 9,000+ | ₹4.05 | ₹36,450.00 |
10 × ₹8.06
₹80.60
excl. GST
₹95.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NL27WZ17DFT2G-TP
₹80.60 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 4.3ns@5V,50pF
- Output Logic Level - Low
- 450mV;300mV;400mV;550mV
- Features
- Power shutdown protection;Noise suppression function
- Input Logic Level - High
- 700mV~1.4V;1V~1.7V;1.3V~2.2V;1.9V~3.1V;2.2V~3.7V
- Input Logic Level - Low
- 300mV~700mV;400mV~1V;600mV~1.3V;1.1V~2V;1.4V~2.5V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.4V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 2
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
The NL27wz17 is a high-performance, low-power, low-voltage, Si-gate CMOS device which provides two independent buffers with Schmitt trigger action. It is capable of transforming slowly changed input signals into sharply defined, jitter-free output signals.
Applications
- AV Receiver
- Audio Dock:Portable
- Blu-ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant(PDA)
- Power:Telecom/Server AC/DC Supply:Single
- Controller:Analog and Digital
Key features
- Wide Supply Voltage Range From 1.65V To 5.5V.
- 5 V tolerant input/output for interfacing with 5 V logic
- ±24-mA Output Drive at 3.3 V
- Latch-up performance exceeds 100mA
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
