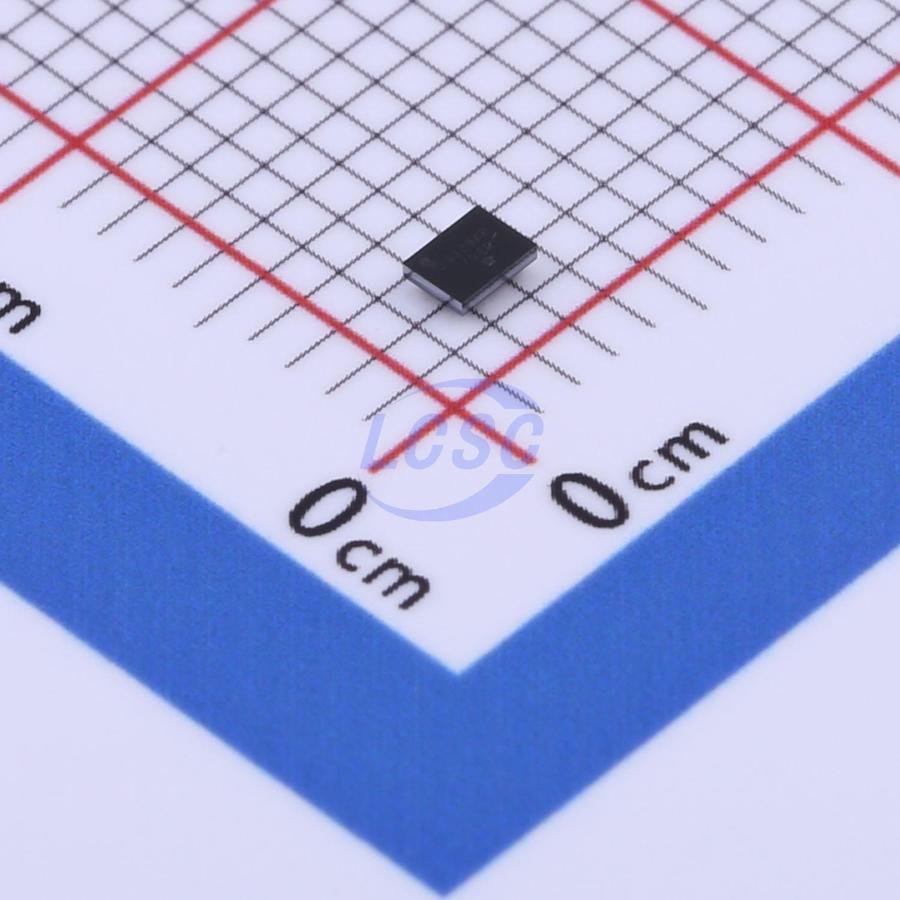

NLSX4378ABFCT1G

The NLSX4378A is a 4−bit configurable dual−supply bidirectional auto sensing translator that does not require a directional control pin. The VCC I/O and VL I/O ports are designed to track two different power supply rails, VCC and VL respectively. The VCC and VL supply rails are configurable from 1.65 V to 5.5 V. This allows voltage logic signals on the VL side to be translated into lower, higher or equal value voltage logic signals on the VCC side, and vice−versa. The NLSX4378A translator has open−drain outputs with integrated 10 kΩ pullup resistors on the I/O lines. The integrated pullup resistors are used to pullup the I/O lines to either VL or VCC. The NLSX4378A is an excellent match for open−drain applications such as the I²C communication bus.

Applications

• I²C, SMBus, PMBus
• Low Voltage ASIC Level Translation
• Mobile Phones, PDAs, Cameras

Key features

• VL can be Less than, Greater than or Equal to VCC
• Wide VCC Operating Range: 1.65 V to 5.5 V
• Wide VL Operating Range: 1.65 V to 5.5 V
• High−Speed with 24 Mb/s Guaranteed Date Rate
• Low Bit−to−Bit Skew
• Enable Input is Overvoltage Tolerant (OVT) to 5.5 V
• Nonpreferential Powerup Sequencing
• Integrated 10 kΩ Pullup Resistors
• ESD Protection: > 7 kV HBM for all pins
• Small Space Saving Package - 2.02 x 1.54 mm μBump12
• These Devices are Pb −Free, Halogen Free/BFR Free and are RoHS Compliant
