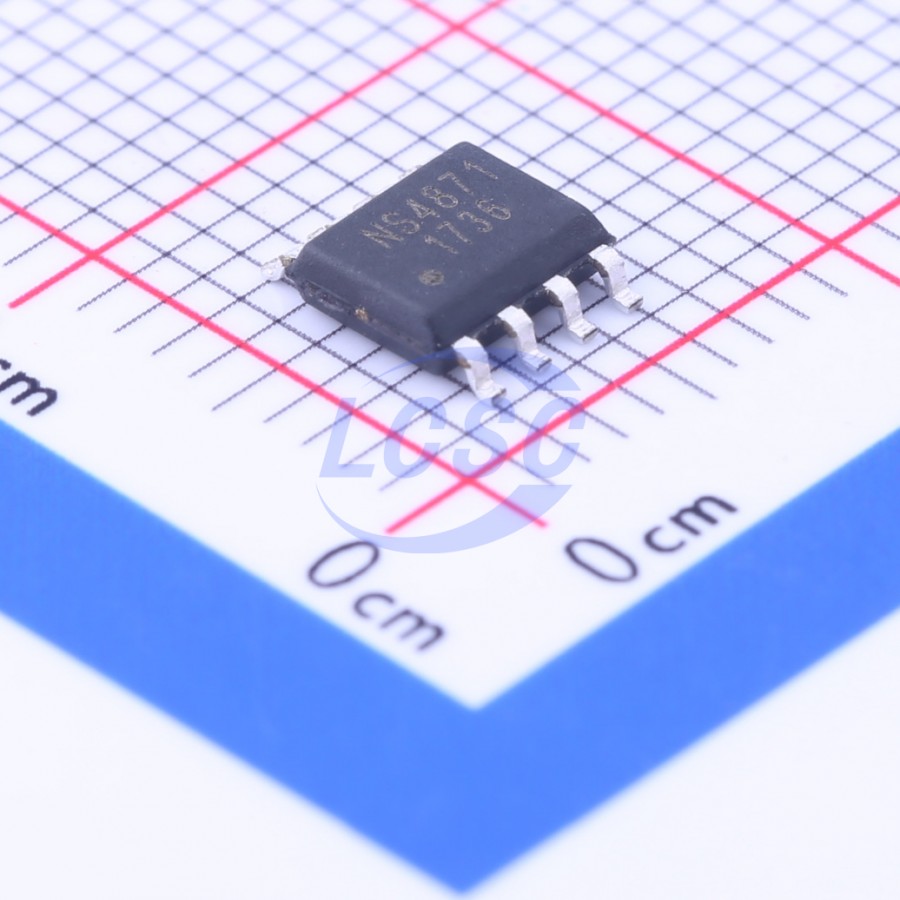

NS4871
6mA 3V~5.25V 1-Channel 2.5Wx1@4Ω Class AB SOP-8-EP Audio Amplifiers
NS4871 2.5W Mono Class AB High-Gain Low-Power Bridge-Tied Load (BTL) Audio Power Amplifier
- Manufacturer
- Shenzhen Nsiway Tech
- Manufacturer part #
- NS4871
- Store part #
- C219013
- Package / case
- SOP-8-EP
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,375 in stock
#C219013
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.26 | ₹61.30 |
| 50+ | ₹9.68 | ₹484.00 |
| 150+ | ₹8.39 | ₹1,258.50 |
| 500+ | ₹7.42 | ₹3,710.00 |
| 3,000+ | ₹6.19 | ₹18,570.00 |
| 6,000+ | ₹5.79 | ₹34,740.00 |
5 × ₹12.26
₹61.30
excl. GST
₹72.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NS4871
₹61.30 for 5 + GST
Specifications
- Quiescent Current
- 6mA
- Voltage - Supply
- 3V~5.25V
- Features
- Enable/shutdown function
- Total Harmonic Distortion + Noise (THD+N)
- 0.1%
- Operating Temperature
- -40℃~+85℃
- Signal-to-Noise Ratio
- 85dB
- Number of Inputs
- 1 Pair Differential Inputs
- Speaker Channels
- 1-Channel
- Output Power
- 2.5Wx1@4Ω
- Class
- Class AB
- Power Supply Rejection Ratio (PSRR)
- 80dB
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.161 g
Overview
NS4871 is a Class AB bridge-tied-load audio power amplifier. Its application circuit is simple, requiring minimal external components. No external coupling capacitors, bootstrap capacitors, or snubber networks are needed at the output. The ESOP-8 package makes it well-suited for portable systems. The NS4871 can enter a low-power shutdown mode via a control pin to reduce power consumption. It offers a gain-bandwidth product of up to 2.5MHz and is stable at unity gain. The amplifier's voltage gain can be adjusted by configuring external resistors, providing ease of use in applications.
Applications
- Laptop computers
- Desktop computers
- Low-voltage audio systems
Key features
- Voltage range: 3.0V - 5.25V
- Output power: 2.5W (RL = 4Ω, THD = 10%)
- Low shutdown leakage current: 1uA (typical)
- High-level shutdown
- ESOP-8 package
- Externally adjustable gain
- No output coupling capacitor, bootstrap capacitor, or snubber network required
- Unity-gain stable
