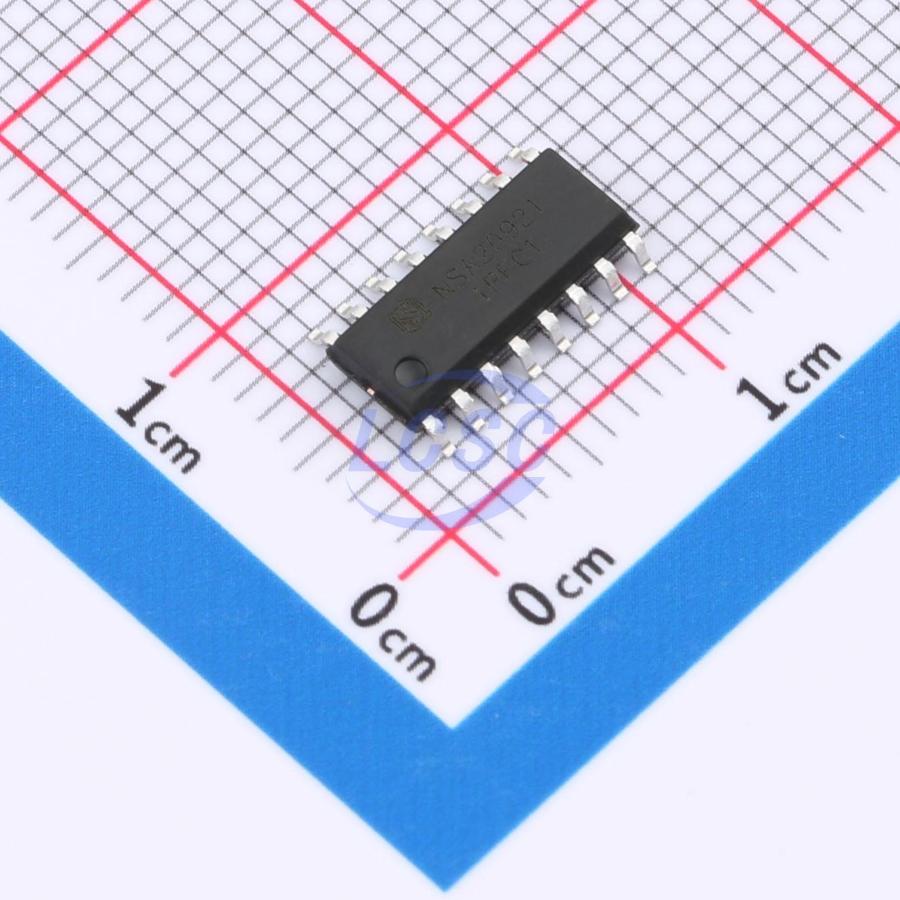

Digital audio power amplifier with integrated protection function

Manufacturer: WXNSIC
Manufacturer part #: NSA20921
Store part #: C49023240
Package / case: SOP-16
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,881 in stock

#C49023240

Stock & price checked 39 h ago

Quantity	Unit price	Pack price
1+	₹156.33	₹156.33
10+	₹142.67	₹1,426.70
30+	₹134.22	₹4,026.60
100+	₹125.33	₹12,533.00
500+	₹121.42	₹60,710.00
1,000+	₹119.69	₹1,19,690.00

Quantity (min 1)

1 × ₹156.33

₹156.33

excl. GST

₹184.47 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

NSA20921

₹156.33 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Quiescent Current: 3mA
Features: Overvoltage protection;Automatic mute/no-noise switch
Operating Temperature: -40℃~+125℃
Class: Class D
Power Supply Rejection Ratio (PSRR): 65dB

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.259 g

Overview

This device is a high-voltage, high-performance Class-D audio power amplifier driver IC, designed specifically for Class-D audio amplifier systems with ultra-high output power. It integrates an analog power amplifier, PWM modulation circuit, high/low-side overcurrent protection, shoot-through prevention dead-time logic, and three voltage domains. The product employs a flexible, open-loop topology to implement PWM modulation. It incorporates pop-click suppression during startup and shutdown to eliminate unwanted audible noise when the PWM signal is switched on and off. Combined with a power bridge circuit and a small number of passive components, a complete Class-D audio power amplifier can be constructed. The device implements overcurrent detection by sensing the power MOSFET's R_DS(on), eliminating the need for conventional direct current sensing, thereby simplifying the system architecture and reducing application complexity. The breakdown voltage between the floating well and the chip substrate ground exceeds 300V, enabling use in amplifier applications up to ±150V and achieving power output exceeding 500W.

Applications

Home theater systems
Stereo mini component systems
Active speaker systems
General-purpose audio power amplifiers

Key features

Class-D power amplifier with integrated analog signal input
Power amplifier open-loop gain > 60dB
Integrated overcurrent protection on both high-side and low-side with auto-recovery
External 5V reference voltage output; low-side overcurrent protection threshold programmable
Programmable timer for protection signal duration
Programmable preset dead time for improved THD performance
Integrated "click-and-pop" suppression during power-on and power-off
Integrated multi-voltage domain UVLO and overvoltage clamp protection
High transient noise immunity (CMTI): > 50V/ns
Output swing up to ±150V, enabling output power exceeding 500W
Maximum operating frequency: 800KHz
Wide temperature range: -40℃ ~ 125℃
360ns/335ns typical propagation delay
500ns maximum overcurrent protection delay
250ns maximum enable control delay
Load output source/sink current capability up to 1A/1.2A
RoHS-compliant SOP16 package
