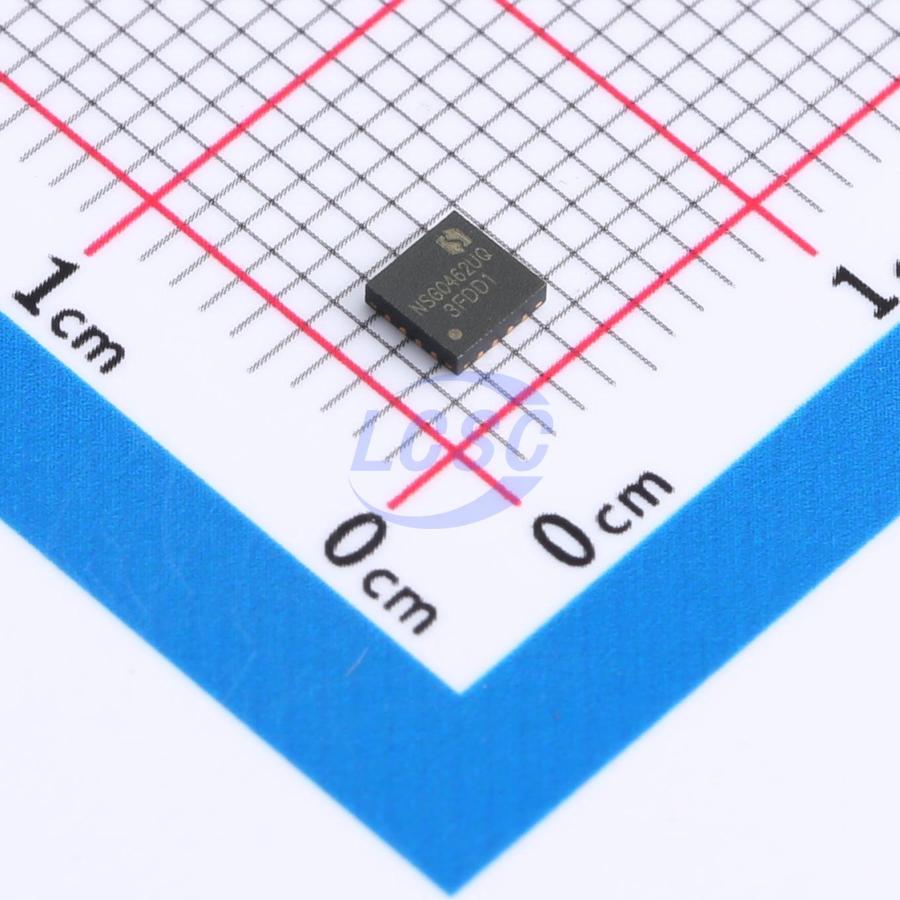

NSG0462UQ
5V~28V 300mA 50mA QFN-16-EP(3x3) Gate Drivers
- Manufacturer
- WXNSIC
- Manufacturer part #
- NSG0462UQ
- Store part #
- C41414784
- Package / case
- QFN-16-EP(3x3)
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,425 in stock
#C41414784
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.09 | ₹115.45 |
| 50+ | ₹20.08 | ₹1,004.00 |
| 150+ | ₹18.79 | ₹2,818.50 |
| 500+ | ₹17.19 | ₹8,595.00 |
| 2,500+ | ₹16.47 | ₹41,175.00 |
| 5,000+ | ₹16.03 | ₹80,150.00 |
5 × ₹23.09
₹115.45
excl. GST
₹136.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NSG0462UQ
₹115.45 for 5 + GST
Specifications
- Quiescent Current
- 500uA
- Voltage - Supply
- 5V~28V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge;Three Phase
- Current - Output Low(IOL)
- 300mA
- Rise Time
- 300ns
- Fall Time
- 60ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 50mA
- Load Type
- MOSFET
Packaging & compliance
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
NSG0462UQ is a three-phase high-speed power MOSFET driver with 6 channels, supporting a maximum operating voltage of 40V. A high-low voltage compatible process enables monolithic integration of both high-side and low-side gate drive circuits. Logic-compatible CMOS or LSTTL outputs support logic inputs as low as 3.3V. Additionally, a built-in dead-time function prevents high-side shoot-through. NSG0462UQ provides a 10V gate supply voltage for both PMOS and NMOS outputs. To simplify PCB design, an integrated 5V/40mA LDO is included to power the MCU or other devices. For safety, NSG0462UQ also features integrated thermal shutdown protection.
Applications
- Medium/small power motor drives
- Power MOSFET driving
- Half-bridge/full-bridge power converters
- Complementary driver converters
Key features
- P/N MOS half-bridge three-phase output
- Operating voltage up to 40V, compatible with 3.3V, 5V, and 15V input logic
- dv/dt immunity up to ±50V/ns, P/N MOS |VGS| up to 10V
- Integrated 5V/40mA LDO
- Integrated over-temperature protection
- Gate drive voltage: 5V to 40V
- Wide temperature range: -40~125°C
- Shoot-through prevention logic with integrated 130ns dead time
- Gate drive propagation delay: Ton/Toff = 80ns/30ns, high-side/low-side delay matched
- Drive current capability: source/sink = 50mA/300mA
- Integrated UVLO circuit, UVLO rising threshold 4.5V, UVLO falling threshold 4.3V
- RoHS compliant, QFN16 package
