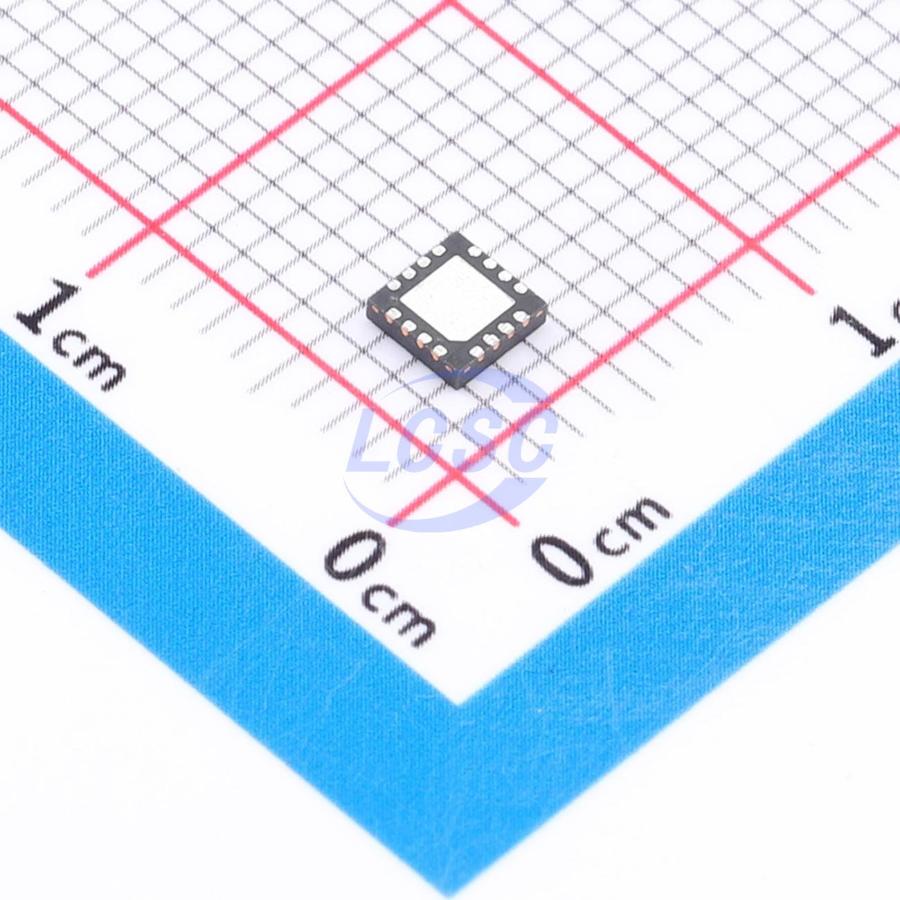

NSG0462UQ
5V~28V 300mA 50mA QFN-16(3x3) Gate Drivers
- Manufacturer
- NCE
- Manufacturer part #
- NSG0462UQ
- Store part #
- C53436475
- Package / case
- QFN-16(3x3)
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,525 in stock
#C53436475
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹53.99 | ₹269.95 |
| 50+ | ₹41.63 | ₹2,081.50 |
| 150+ | ₹36.21 | ₹5,431.50 |
| 500+ | ₹29.49 | ₹14,745.00 |
| 2,500+ | ₹26.67 | ₹66,675.00 |
| 5,000+ | ₹24.73 | ₹1,23,650.00 |
5 × ₹53.99
₹269.95
excl. GST
₹318.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NSG0462UQ
₹269.95 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 80ns
- High Level Delay Time
- 30ns
- Quiescent Current
- 500uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 5V~28V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Three Phase
- Current - Output Low(IOL)
- 300mA
- Rise Time
- 300ns
- Fall Time
- 60ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 50mA
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.352 g
Overview
The NSG0462UQ is a three-phase high-speed power MOSFET driver with 6 channels and a maximum operating voltage of 40V. It employs a high-low voltage compatible process, enabling monolithic integration of both high-side and low-side gate drive circuits. Logic compatible with CMOS or LSTTL outputs, with logic input voltage as low as 3.3V. In addition, a built-in dead-time function is incorporated to prevent high-side shoot-through. The NSG0462UQ provides a 10V gate supply voltage for both PMOS and NMOS outputs. To simplify PCB design, a 5V/40mA LDO is integrated into the NSG0462UQ to supply power to an MCU or other devices.
Applications
- Medium/small power motor drives
- Power MOSFET drives
- Half-bridge/full-bridge power converters
- Any complementary drive converters
Key features
- P/N MOS half-bridge three-phase output
- Operating voltage up to 40V
- Compatible with 3.3V, 5V, and 15V input logic
- dv/dt immunity up to ±50V/ns
- P/N MOS |VGs| up to 10V
- Built-in 5V/40mA LDO
- Gate drive voltage: 5V~40V
- Wide temperature range: -40~125℃
- Anti-shoot-through logic with built-in 130ns dead time
- Gate turn-on/turn-off delay: Ton/Toff = 80ns/30ns, high-side/low-side delay matched
- Drive current capability: source/sink = 50mA/300mA
- Built-in UVLO circuit, UVLO positive threshold 4.5V, UVLO negative threshold 4.3V
- RoHS compliant
- QFN16 package
