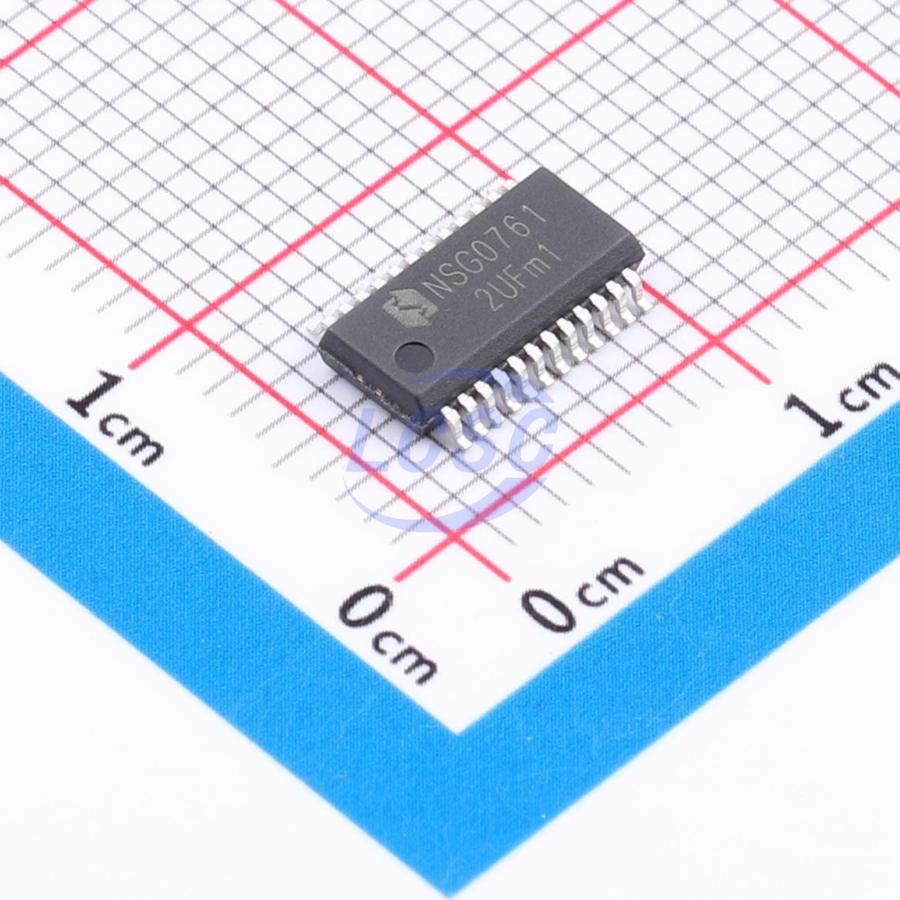

NSG0761
7V~20V 1.5A 1A SSOP-24 Gate Drivers
- Manufacturer
- NCE
- Manufacturer part #
- NSG0761
- Store part #
- C53436490
- Package / case
- SSOP-24
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,940 in stock
#C53436490
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.33 | ₹111.65 |
| 50+ | ₹21.88 | ₹1,094.00 |
| 150+ | ₹21.59 | ₹3,238.50 |
| 500+ | ₹21.29 | ₹10,645.00 |
5 × ₹22.33
₹111.65
excl. GST
₹131.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NSG0761
₹111.65 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 150ns
- High Level Delay Time
- 150ns
- Quiescent Current
- 500uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 7V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Three Phase
- Current - Output Low(IOL)
- 1.5A
- Rise Time
- 40ns
- Fall Time
- 15ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 1A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.48 g
Overview
NSG0761 is an integrated chip featuring a 12V LDO, a 5V LDO, and a three-phase high-voltage power gate driver capable of simultaneously driving the gates of both high-side and low-side MOSFETs or IGBTs. The floating channel drive design supports bus voltages up to 70V. The chip delivers high drive capability with output source/sink currents up to 1A/1.5A. An internal shoot-through prevention and dead-time circuit prevents both transistors from conducting simultaneously, reducing switching losses. The UVLO function ensures both driver outputs remain low when the supply voltage is below the threshold. In addition, the integrated 12V LDO converts high voltage (up to 70V) to VCC (12V) for powering the gate drive circuit, while the integrated 5V LDO steps down VCC to 5V for MCU power supply, simplifying the peripheral circuit design.
Applications
- Motor Drive
Key features
- Gate driver features:
- Floating channel for bootstrap operation
- Maximum operating voltage up to 70V
- Matched propagation delay for both channels
- Gate drive voltage 7V~20V
- Cross-conduction protection with internal fixed dead time 200ns
- Integrated bootstrap diode
- Input/output in-phase
- Turn-on/turn-off delay characteristics (Ton/Toff = 150ns/150ns, high-side/low-side delay matched)
- VCC UVLO circuit (UVLO positive threshold 6.5V, UVLO negative threshold 6.0V)
- Output source/sink current capability 1A/1.5A
- Wide temperature range -40~125°C
- 5V LDO features:
- Output voltage 5V
- Maximum load 70mA
- 12V LDO features:
- Maximum withstand voltage 70V
- Output voltage 12V
