WXNSICDatasheet (PDF)

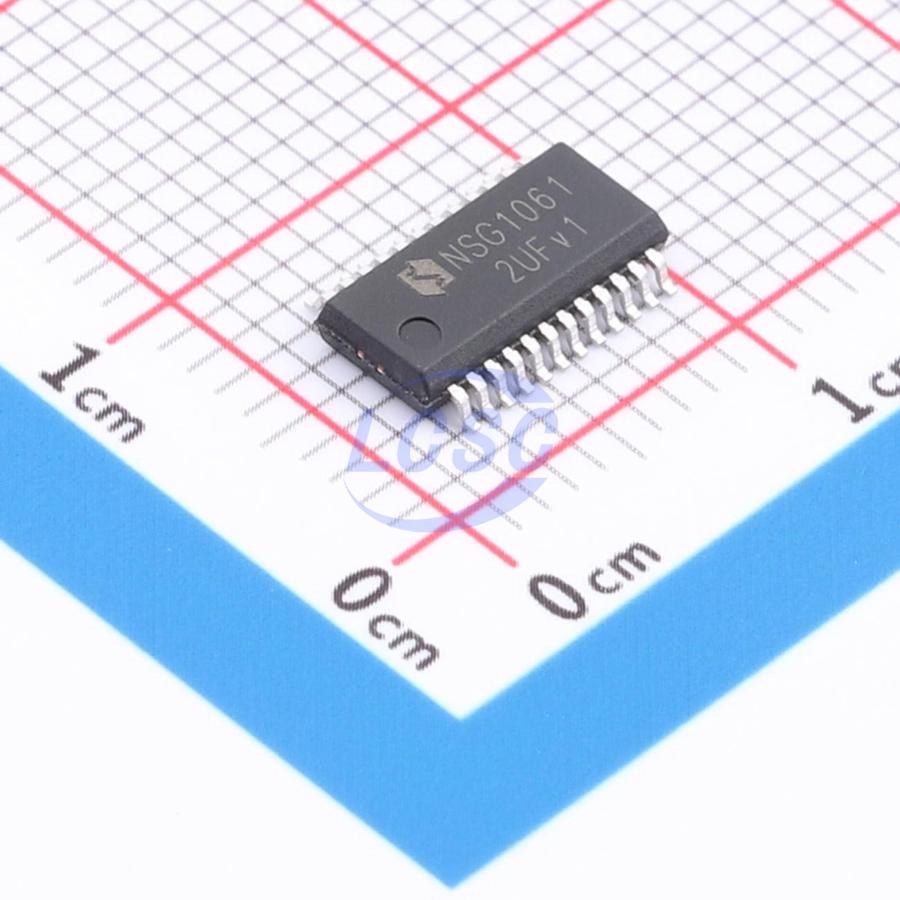

NSG1061
1A 7V~20V 1.5A SSOP-24 Gate Drivers
SSOP-24RoHSActive
- Manufacturer
- WXNSIC
- Manufacturer part #
- NSG1061
- Store part #
- C55098086
- Package / case
- SSOP-24
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,000 in stock
#C55098086
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.85 | ₹224.25 |
| 50+ | ₹35.46 | ₹1,773.00 |
| 150+ | ₹31.43 | ₹4,714.50 |
| 500+ | ₹26.41 | ₹13,205.00 |
| 2,500+ | ₹24.17 | ₹60,425.00 |
| 4,000+ | ₹22.83 | ₹91,320.00 |
5 × ₹44.85
₹224.25
excl. GST
₹264.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NSG1061
₹224.25 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Rise Time
- 40ns
- Low Level Delay Time
- 150ns
- High Level Delay Time
- 150ns
- Fall Time
- 40ns
- Current - Output High(IOH)
- 1A
- Load Type
- IGBT
- Quiescent Current
- 500uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 7V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Three Phase
- Current - Output Low(IOL)
- 1.5A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.299 g
