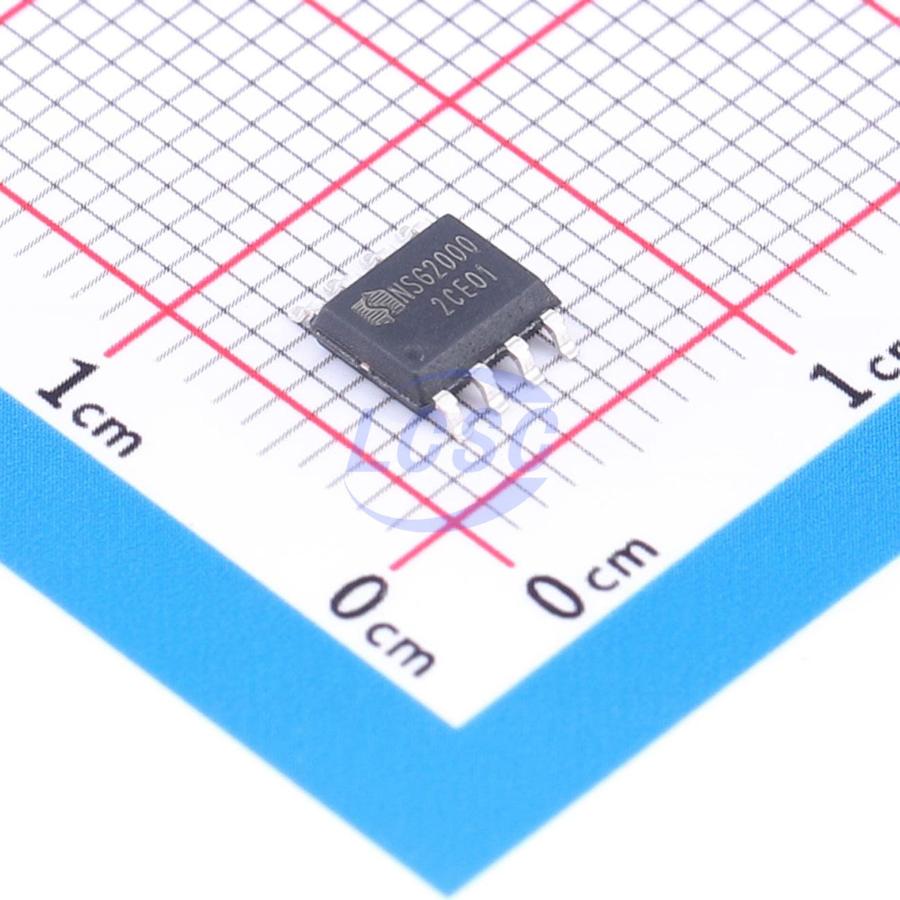

NSG2000
4.5V~20V 600mA 290mA SOIC-8 Gate Drivers
- Manufacturer
- NCE
- Manufacturer part #
- NSG2000
- Store part #
- C53436459
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,637 in stock
#C53436459
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹209.23 | ₹209.23 |
| 10+ | ₹165.22 | ₹1,652.20 |
| 30+ | ₹143.32 | ₹4,299.60 |
| 100+ | ₹121.64 | ₹12,164.00 |
| 500+ | ₹108.42 | ₹54,210.00 |
| 1,000+ | ₹101.70 | ₹1,01,700.00 |
1 × ₹209.23
₹209.23
excl. GST
₹246.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NSG2000
₹209.23 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 4.5V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- High Side
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 70ns
- Fall Time
- 30ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 290mA
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.213 g
Overview
The NSG2000 is a fast, high-side N-channel MOSFET gate driver operating with input voltages up to 250V. The device implements a charge pump architecture responsible for fully enhancing an external N-channel MOSFET switch, enabling it to remain on indefinitely. Its robust driver can easily drive large gate capacitances with very short transition times, making it ideal for high-frequency switching applications or static switching applications requiring fast turn-on and/or turn-off times. The NSG2000 is available in an SOP8 package and operates over a temperature range of -40℃ to 125℃.
Applications
- High-side switch controller
- Static switch driver
- Load and power switch driver
- Electronic valve driver
- High-frequency high-side gate driver
- Photovoltaic shutdown device
Key features
- Wide operating range VIN: up to 250V
- 150ns propagation delay for fast turn-on and turn-off channels
- Built-in high-side bootstrap charging circuit for 100% duty cycle
- Adjustable on-time duty cycle
- Gate driver supply voltage: 4.5V ~ 20V
- VIN overvoltage lockout
- Driver supply VCC undervoltage lockout — UVLO rising threshold 4.2V, UVLO falling threshold 4V
- Compatible with 3.3V, 5V, and 15V input logic
- TS negative voltage tolerance down to -9V
- Wide temperature range: -40℃ ~ 125℃
- Output stage source/sink current capability: 290mA/600mA
- RoHS-compliant SOP8 (S)
