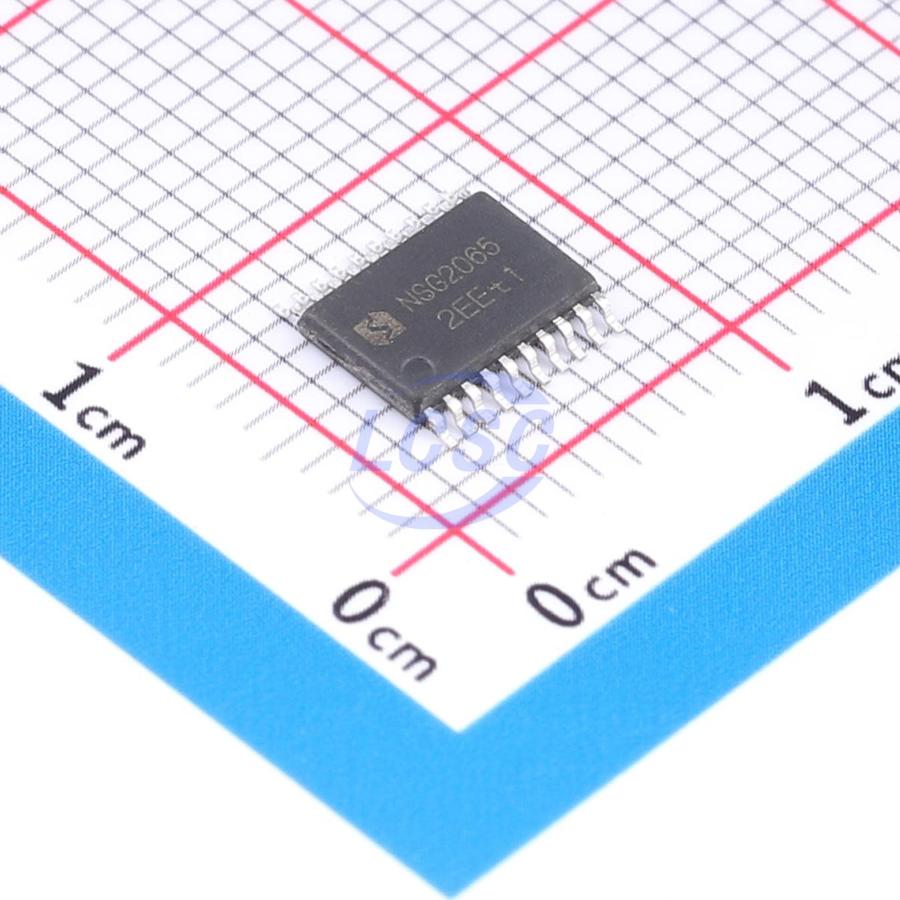

NSG2065
5V~20V 1.5A 1.2A TSSOP-20 Gate Drivers
- Manufacturer
- NCE
- Manufacturer part #
- NSG2065
- Store part #
- C53436440
- Package / case
- TSSOP-20
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,252 in stock
#C53436440
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹70.48 | ₹70.48 |
| 10+ | ₹56.60 | ₹566.00 |
| 30+ | ₹50.74 | ₹1,522.20 |
| 100+ | ₹43.16 | ₹4,316.00 |
| 500+ | ₹39.90 | ₹19,950.00 |
| 1,000+ | ₹37.94 | ₹37,940.00 |
1 × ₹70.48
₹70.48
excl. GST
₹83.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NSG2065
₹70.48 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Quiescent Current
- 700uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 5V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Three Phase
- Current - Output Low(IOL)
- 1.5A
- Rise Time
- 40ns
- Fall Time
- 15ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 1.2A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.298 g
Overview
The NSG2065 is a three-phase high-voltage power MOSFET and IGBT gate driver capable of simultaneously driving the gates of both high-side and low-side power transistors. The floating channel drive design supports bus voltages up to 250V. The NSG2065 outputs deliver high drive capability with source/sink currents up to 1.2A/1.5A. Its wide operating voltage range allows independent optimization of both high-side and low-side gate drive voltages for maximum drive efficiency. Internal shoot-through prevention and dead-time circuitry prevent simultaneous conduction of both transistors, further reducing switching losses. The NSG2065's UVLO function ensures both driver outputs remain low when the supply voltage is insufficient. The NSG2065 integrates bootstrap diodes to minimize external peripheral components.
Applications
- Motor Control
- Air Conditioner / Washing Machine
- General-Purpose Inverter
- Micro Inverter Drive
Key features
- Floating channel for bootstrap operation
- Maximum operating voltage up to 250V
- Gate drive voltage 5V~20V
- Compatible with 3.3/5V input logic
- dVs/dt immunity up to +50 V/ns
- Vs negative bias capability down to -9V
- Input/output in-phase
- Turn-on/turn-off propagation delay: Ton/Toff = 150ns/150ns
- High- and low-side delay matched
- Cross-conduction protection, dead time: 200ns
- High- and low-side UVLO, UVLO positive threshold 4.5V, UVLO negative threshold 4.3V
- Output source/sink current capability: 1.2A/1.5A
- Wide temperature range -40~125°C
- Integrated bootstrap diode
- RoHS compliant
- TSSOP20 package
