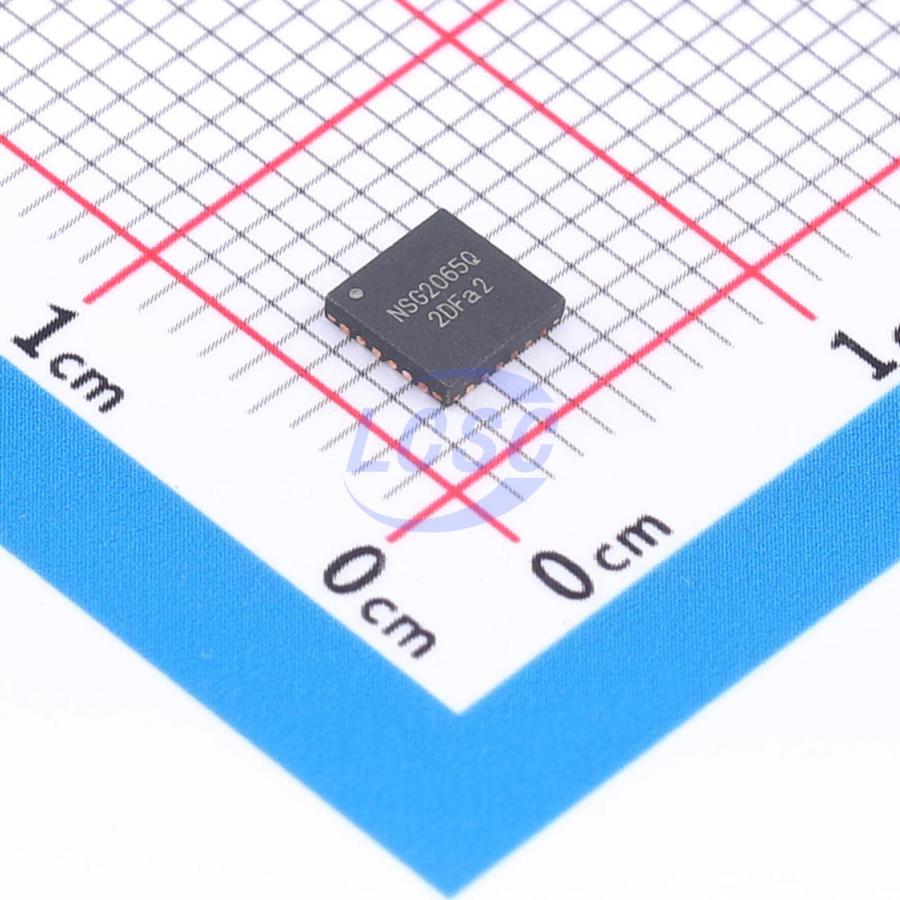

NSG2065Q
5V~20V 1.5A 1.2A QFN-24-EP(4x4) Gate Drivers
- Manufacturer
- NCE
- Manufacturer part #
- NSG2065Q
- Store part #
- C53463328
- Package / case
- QFN-24-EP(4x4)
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,342 in stock
#C53463328
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹117.96 | ₹117.96 |
| 10+ | ₹90.64 | ₹906.40 |
| 30+ | ₹78.93 | ₹2,367.90 |
| 100+ | ₹64.40 | ₹6,440.00 |
| 500+ | ₹57.89 | ₹28,945.00 |
| 1,000+ | ₹53.99 | ₹53,990.00 |
1 × ₹117.96
₹117.96
excl. GST
₹139.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NSG2065Q
₹117.96 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Quiescent Current
- 700uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 5V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Three Phase
- Current - Output Low(IOL)
- 1.5A
- Rise Time
- 40ns
- Fall Time
- 15ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 1.2A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.196 g
Overview
The NSG2065Q is a three-phase high-voltage power MOSFET and IGBT gate driver capable of simultaneously driving the gates of both high-side and low-side power transistors. The floating channel drive design supports bus voltages up to 250V. The NSG2065Q output delivers high drive capability with source/sink current up to 1.2A/1.5A. The NSG2065Q operates over a wide supply voltage range, with independently optimizable high-side and low-side gate drive voltages for maximum drive efficiency. Internal shoot-through protection and dead-time circuitry prevent simultaneous conduction of both transistors, further reducing switching losses. The NSG2065Q's UVLO function ensures both driver outputs are driven low when the supply voltage is insufficient. The NSG2065Q integrates a bootstrap diode to minimize external peripheral components.
Applications
- Motor Driver
Key features
- Bootstrap-operated floating channel
- Maximum operating voltage up to 250V
- Gate drive voltage 5V~20V
- Compatible with 3.3/5V input logic
- dVs/dt immunity up to +50V/ns
- Vs negative bias capability down to -9V
- Input/output in-phase
- Turn-on/turn-off propagation delay — Ton/Toff = 150ns/150ns — High/low side delay matched
- Cross-conduction prevention — Dead time: 200ns
- High and low side UVLO — UVLO positive threshold 4.5V — UVLO negative threshold 4.3V
- Output source/sink current capability: 1.2A/1.5A
- Wide temperature range -40~125°C
- Integrated bootstrap diode
- RoHS compliant
- QFN24 package
