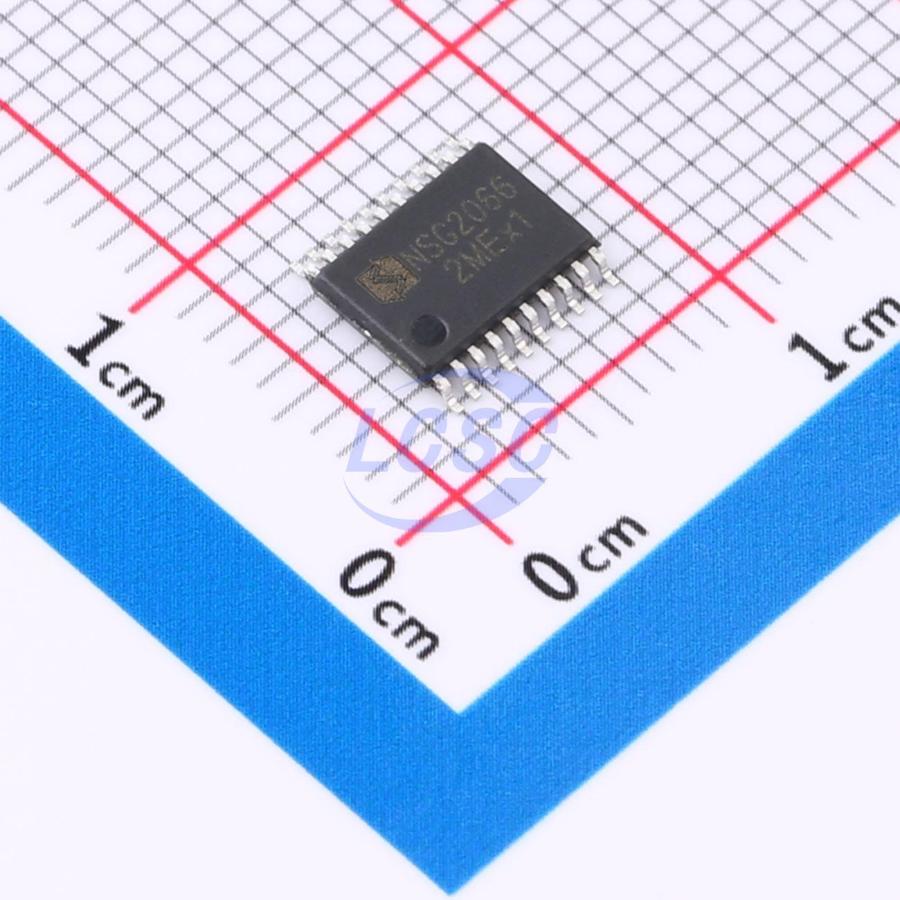

NSG2066
5V~20V 1.5A 1.2A TSSOP-20 Gate Drivers RoHS
Three-phase gate driver IC with integrated bootstrap
- Manufacturer
- WXNSIC
- Manufacturer part #
- NSG2066
- Store part #
- C49023244
- Package / case
- TSSOP-20
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,762 in stock
#C49023244
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹44.24 | ₹44.24 |
| 10+ | ₹38.38 | ₹383.80 |
| 30+ | ₹36.00 | ₹1,080.00 |
| 100+ | ₹32.96 | ₹3,296.00 |
| 500+ | ₹31.45 | ₹15,725.00 |
| 1,000+ | ₹30.80 | ₹30,800.00 |
1 × ₹44.24
₹44.24
excl. GST
₹52.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
NSG2066
₹44.24 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 150ns
- High Level Delay Time
- 150ns
- Quiescent Current
- 700uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 5V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Three Phase
- Current - Output Low(IOL)
- 1.5A
- Rise Time
- 40ns
- Fall Time
- 15ns
- Features
- Dead-time control;Interleaved conduction protection;Built-in bootstrap diode
- Current - Output High(IOH)
- 1.2A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.216 g
Overview
NSG2066 is a three-phase high-voltage power MOSFET and IGBT gate driver capable of simultaneously driving the gates of both high-side and low-side power transistors. Its floating channel drive design supports bus voltages up to 250V. The device delivers strong output drive capability, with source and sink currents of 1.2A and 1.5A respectively. NSG2066 operates over a wide voltage range, with independently optimizable high-side and low-side gate drive voltages for improved drive efficiency. Internal shoot-through protection and dead-time circuitry prevent simultaneous conduction of both transistors, further reducing switching losses. The UVLO function ensures both driver outputs remain low when the supply voltage is insufficient. NSG2066 integrates bootstrap diodes to minimize external peripheral circuitry.
Applications
- Motor Control
- Air Conditioner/Washing Machine
- General-Purpose Inverter
- Micro Inverter Drive
Key features
- Floating channel for bootstrap operation
- Maximum operating voltage up to 250V
- Gate drive voltage range: 5V~20V
- Compatible with 3.3V/5V input logic
- dv/dt immunity up to ±50V/ns
- Vs negative bias capability: -9V
- High-side input/output in-phase
- Low-side input/output out-of-phase
- Turn-on/turn-off propagation delay: Ton/Toff = 150ns/150ns, matched high- and low-side delays
- Shoot-through protection, dead time: 200ns
- High- and low-side UVLO, UVLO positive threshold: 4.5V, UVLO negative threshold: 4.3V
- Output source/sink current capability: 1.2A/1.5A
- Wide temperature range: -40~125℃
- Integrated bootstrap diode
- RoHS compliant
- TSSOP20 package
