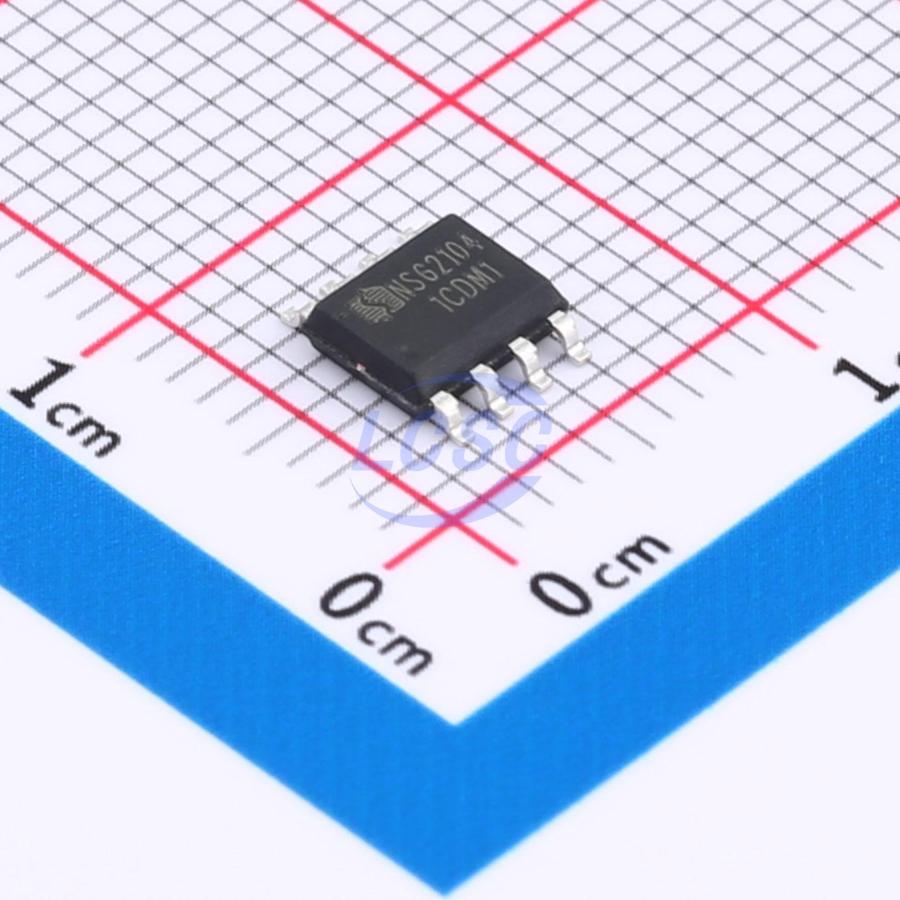

NSG2104
Low Side High Side Gate Driver IC MOSFET IGBT SOIC-8
Single-phase high-side and low-side power MOSFET/IGBT driver IC
- Manufacturer
- WXNSIC
- Manufacturer part #
- NSG2104
- Store part #
- C7421063
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,012 in stock
#C7421063
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹34.70 | ₹34.70 |
| 10+ | ₹30.14 | ₹301.40 |
| 30+ | ₹27.98 | ₹839.40 |
| 100+ | ₹25.59 | ₹2,559.00 |
| 500+ | ₹24.50 | ₹12,250.00 |
| 1,000+ | ₹23.85 | ₹23,850.00 |
1 × ₹34.70
₹34.70
excl. GST
₹40.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NSG2104
₹34.70 for 1 + GST
Specifications
- Quiescent Current
- 120uA
- Voltage - Supply
- 10V~20V
- Driven Configuration
- High Side;Low Side
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 75ns
- Fall Time
- 35ns
- Features
- Enable shutdown;Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 300mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.17 g
Overview
NSG2104 is a high-voltage, high-speed power MOSFET high- and low-side gate driver IC. It features independent high-side and low-side referenced output channels. The high-low voltage compatible process enables monolithic integration of both high- and low-side gate drive circuits, with logic input levels compatible with CMOS or LSTTL logic outputs as low as 3.3V. The floating channel supports driving of high-side N-channel power MOSFETs, with a maximum floating supply voltage of 700V. Packaged in SOIC8, it operates over a temperature range of -40°C to 125°C.
Applications
- Motor control
- Air conditioning
- Washing machines
- General-purpose inverters
- Inverter drives
Key features
- Floating high-side channel with bootstrap operation
- Maximum operating voltage +700V
- Compatible with 3.3V, 5V, and 15V input logic
- dV/dt immunity up to ±50V/ns
- Vs negative bias capability down to -9V
- Integrated VCC undervoltage lockout (UVLO)
- UVLO positive-going threshold 8.9V
- UVLO negative-going threshold 8.2V
- Propagation delay characteristics
- Turn-on/turn-off propagation delay Ton/Toff = 650ns/130ns
- Delay matching 50ns
- Cross-conduction protection
- Dead time 520ns
- Wide temperature range -40°C~125°C
- Output stage source/sink current capability 300mA/600mA
- RoHS compliant
- SOIC8 (S)
