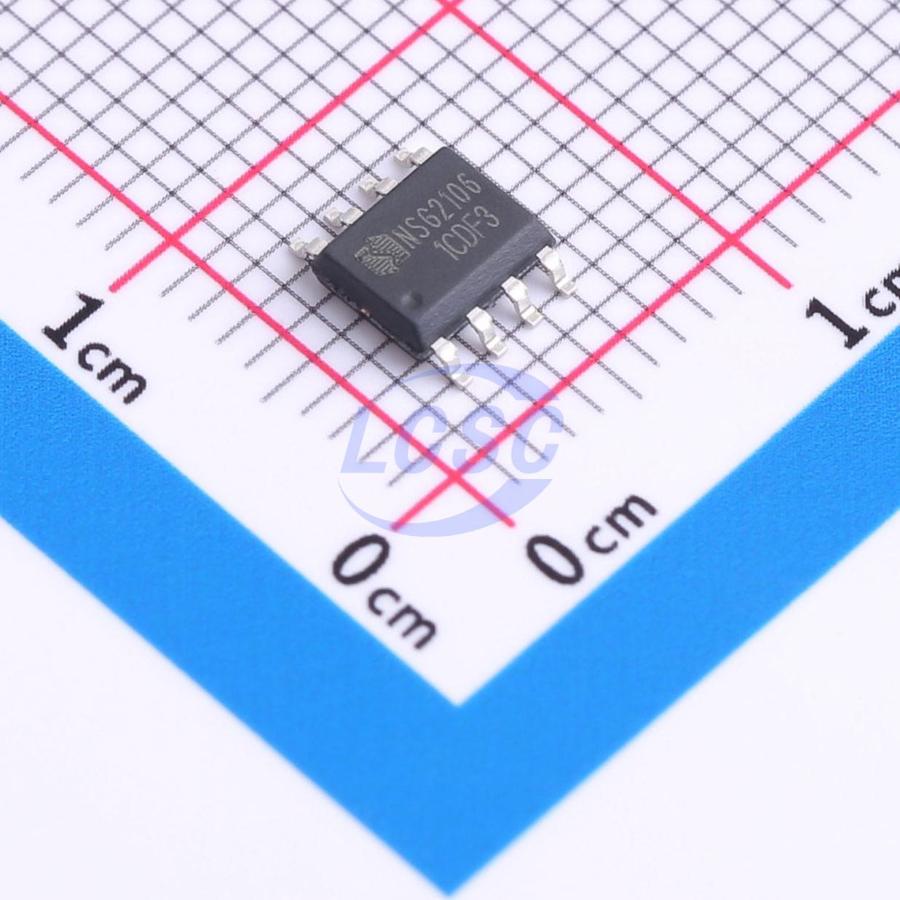

NSG2106
Low Side High Side Gate Driver IC MOSFET IGBT SOIC-8
Single-phase high-side and low-side power MOSFET/IGBT driver IC
- Manufacturer
- WXNSIC
- Manufacturer part #
- NSG2106
- Store part #
- C7421064
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,343 in stock
#C7421064
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.13 | ₹53.13 |
| 10+ | ₹41.85 | ₹418.50 |
| 30+ | ₹37.08 | ₹1,112.40 |
| 100+ | ₹31.01 | ₹3,101.00 |
| 500+ | ₹28.40 | ₹14,200.00 |
| 1,000+ | ₹26.67 | ₹26,670.00 |
1 × ₹53.13
₹53.13
excl. GST
₹62.69 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NSG2106
₹53.13 for 1 + GST
Specifications
- Quiescent Current
- 120uA
- Voltage - Supply
- 10V~20V
- Driven Configuration
- High Side;Low Side
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 75ns
- Fall Time
- 35ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 300mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.431 g
Overview
NSG2106 is a high-voltage, high-speed power MOSFET high- and low-side gate driver IC. It features independent high-side and low-side referenced output channels. The high-low voltage compatible process enables monolithic integration of both high-side and low-side gate drive circuits, with logic input levels compatible down to 3.3V CMOS or LSTTL logic output levels. The floating channel can be used to drive high-side N-channel power MOSFETs, with a maximum floating supply voltage of 700V. Packaged in SOIC8, it operates over a temperature range of -40°C to 125°C.
Applications
- Motor Control
- Air Conditioners
- Washing Machines
- General-Purpose Inverters
- Inverter Drives
Key features
- Bootstrap floating high-side channel
- Maximum operating voltage +700V
- Compatible with 3.3V, 5V, and 15V input logic
- dVs/dt immunity up to ±50V/ns
- Vs negative bias capability down to -9V
- Integrated VCC and VBS UVLO
- UVLO positive-going threshold 8.9V
- UVLO negative-going threshold 8.2V
- Propagation delay characteristics
- Turn-on/turn-off propagation delay Ton/Toff = 130ns/130ns
- Delay matching time 50ns
- Shoot-through protection
- Dead time 100ns
- Wide temperature range -40°C~125°C
- Output stage source/sink current capability 300mA/600mA
- RoHS compliant
- SOIC8 (S)
