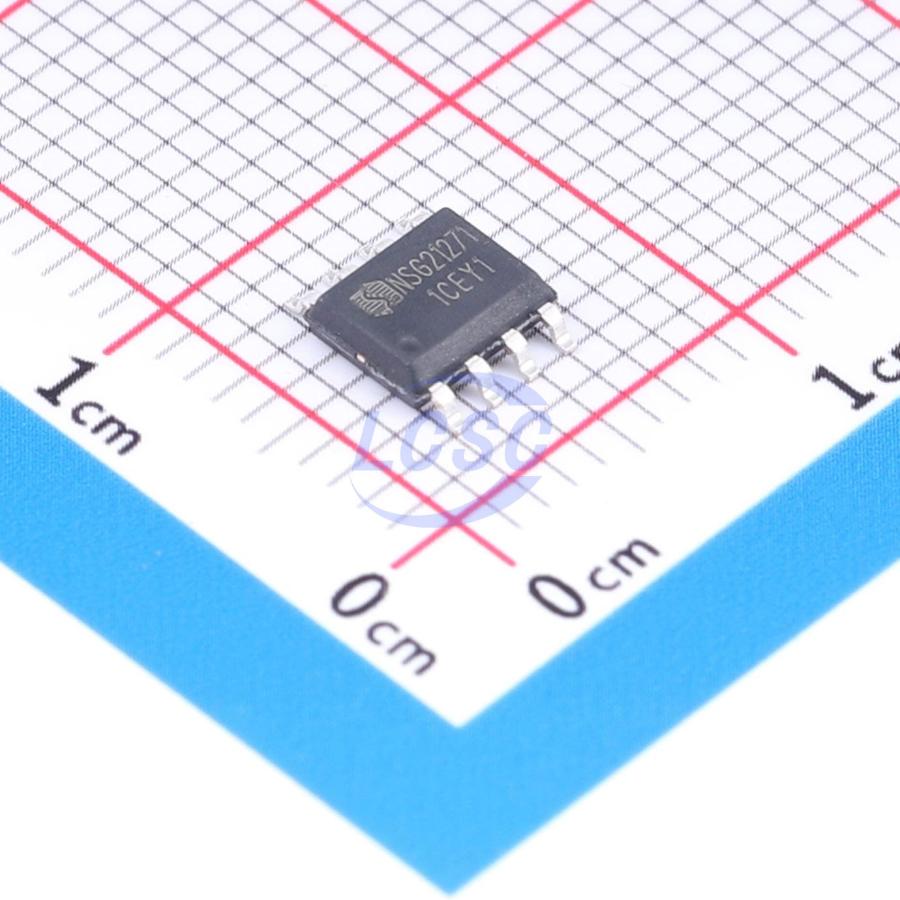

NSG21271
8V~20V 600mA 300mA SOP-8 Gate Drivers
- Manufacturer
- NCE
- Manufacturer part #
- NSG21271
- Store part #
- C53436468
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,998 in stock
#C53436468
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹145.93 | ₹145.93 |
| 10+ | ₹119.90 | ₹1,199.00 |
| 30+ | ₹106.90 | ₹3,207.00 |
| 100+ | ₹93.89 | ₹9,389.00 |
| 500+ | ₹86.30 | ₹43,150.00 |
| 1,000+ | ₹82.18 | ₹82,180.00 |
1 × ₹145.93
₹145.93
excl. GST
₹172.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NSG21271
₹145.93 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Quiescent Current
- 60uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 8V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- High Side
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 80ns
- Fall Time
- 40ns
- Features
- Undervoltage Protection;Overcurrent Protection
- Current - Output High(IOH)
- 300mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.266 g
Overview
The NSG21271 is a high-voltage, high-speed single-channel high-side MOSFET/IGBT gate driver IC with overcurrent detection. Fabricated using a high-voltage compatible process, it integrates the high-side gate drive circuit on a single chip, with logic input levels compatible with CMOS or LSTTL logic outputs as low as 3.3V. The built-in high-side overcurrent protection circuit shuts down the output upon detecting an overcurrent condition, while simultaneously asserting a fault signal through the open-drain FAULT pin. The floating channel supports driving of high-side N-channel power MOSFETs, with a maximum floating supply voltage of 300V. Available in SOP8 package, operating over a temperature range of -40℃ to 125℃.
Key features
- Bootstrap floating high-side channel
- Maximum operating voltage +300V
- Compatible with 3.3V, 5V, and 15V input logic
- dVs/dt immunity up to ±50V/ns
- Vs negative bias capability down to -5V
- Input/output in-phase
- Gate drive voltage range 8V to 22V
- Integrated UVLO, undervoltage threshold 6.8V/7.2V
- Propagation delay: turn-on/turn-off delay Ton/Toff = 150ns/150ns
- Wide temperature range -40℃~125℃
- Fault pin fault output
- RoHS-compliant SOP8 (S)
