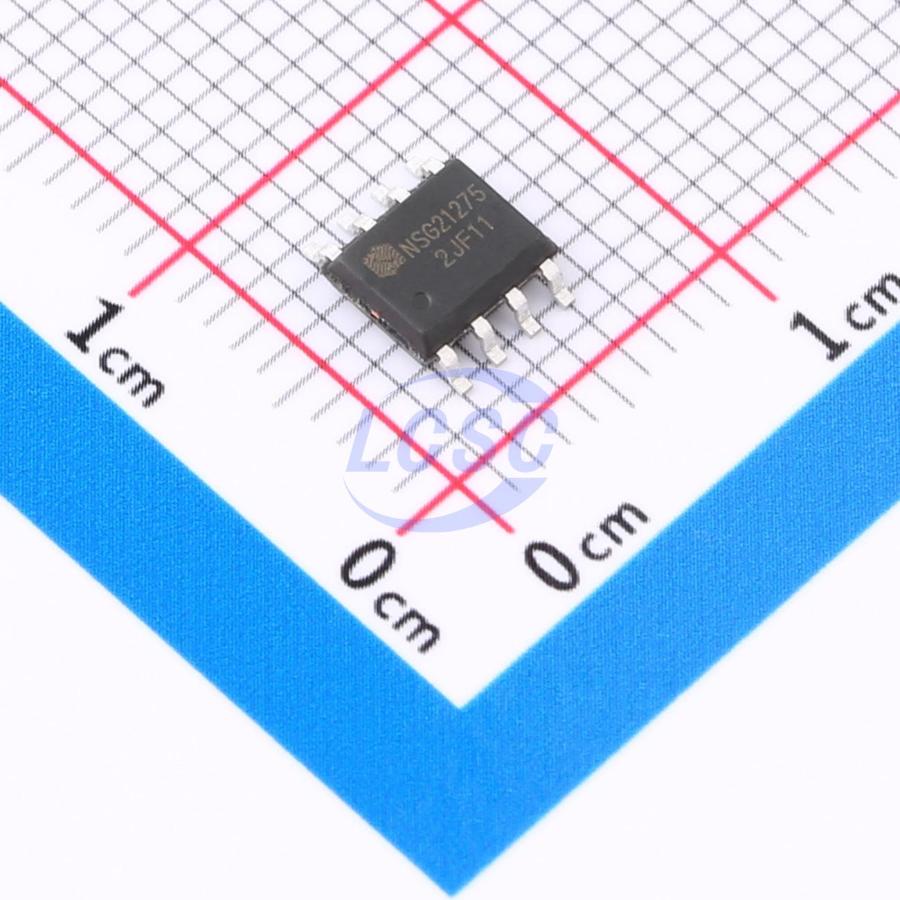

NSG21275
8V~20V 1.5A 1.5A SOP-8 Gate Drivers RoHS
Single-channel high-side MOSFET/IGBT driver chip with overcurrent detection
- Manufacturer
- WXNSIC
- Manufacturer part #
- NSG21275
- Store part #
- C49023245
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,970 in stock
#C49023245
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹102.77 | ₹102.77 |
| 10+ | ₹91.29 | ₹912.90 |
| 30+ | ₹85.43 | ₹2,562.90 |
| 100+ | ₹79.79 | ₹7,979.00 |
| 500+ | ₹76.32 | ₹38,160.00 |
| 1,000+ | ₹74.38 | ₹74,380.00 |
1 × ₹102.77
₹102.77
excl. GST
₹121.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NSG21275
₹102.77 for 1 + GST
Specifications
- Quiescent Current
- 60uA
- Voltage - Supply
- 8V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- High Side
- Current - Output Low(IOL)
- 1.5A
- Rise Time
- 80ns
- Fall Time
- 40ns
- Features
- Overcurrent Protection
- Current - Output High(IOH)
- 1.5A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.205 g
Overview
High-voltage, high-speed single-channel high-side MOSFET/IGBT gate driver IC with overcurrent detection. Integrates the high-side gate drive circuit in a single chip using a high-voltage/low-voltage compatible process, with logic input levels compatible with CMOS or LSTTL logic output levels as low as 3.3V. Features a built-in high-side overcurrent protection circuit that shuts down the output upon detecting an overcurrent condition, while simultaneously signaling a fault via an open-drain FAULT pin. The floating channel supports driving high-side N-channel power MOSFETs, with a maximum operating voltage of +300V. Available in SOIC8 package, operating temperature range: -40℃ ~ 125℃.
Applications
- Motor control and drive
- Robotics
- Electric vehicle fast charging
Key features
- Bootstrap-operated floating high-side channel
- Maximum operating voltage: +300V
- Compatible with 3.3V, 5V, and 15V input logic
- dV/dt immunity up to ±50V/ms
- Vs negative bias capability: -5V
- Non-inverting input-to-output
- Gate drive voltage range: 8V to 22V
- Gate drive source and sink current: 1.5A
- Integrated UVLO circuit
- UVLO threshold: 6.8V/7.2V
- Turn-on propagation delay Ton and turn-off propagation delay Toff: 150ns
- Operating temperature range: -40℃ ~ 125℃
- FAULT pin for fault output
- RoHS compliant, SOIC8 package
