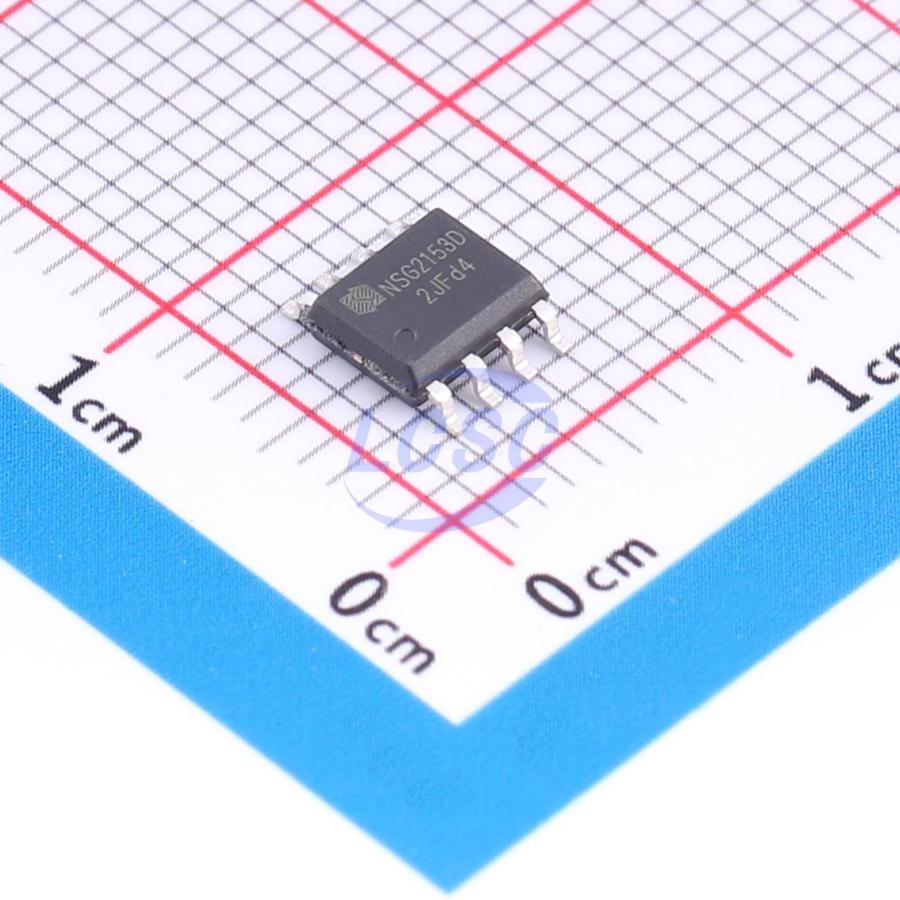

NSG2153D
11V~15.4V 1.5A 1.2A SOP-8 Gate Drivers
- Manufacturer
- NCE
- Manufacturer part #
- NSG2153D
- Store part #
- C53436478
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,199 in stock
#C53436478
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹101.05 | ₹101.05 |
| 10+ | ₹83.02 | ₹830.20 |
| 30+ | ₹74.10 | ₹2,223.00 |
| 100+ | ₹64.97 | ₹6,497.00 |
| 500+ | ₹59.76 | ₹29,880.00 |
| 1,000+ | ₹56.94 | ₹56,940.00 |
1 × ₹101.05
₹101.05
excl. GST
₹119.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NSG2153D
₹101.05 for 1 + GST
Specifications
- Quiescent Current
- 800uA
- Voltage - Supply
- 11V~15.4V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 1.5A
- Rise Time
- 120ns
- Fall Time
- 50ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 1.2A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.512 g
Overview
NSG2153D is a high-voltage, high-speed power MOSFET self-oscillating half-bridge driver IC. Its floating channel supports driving high-side and low-side N-channel power MOSFETs, with a maximum floating supply voltage of 600V. The built-in 1.1μs dead-time circuit effectively prevents shoot-through of the high-side and low-side power switches. An integrated bootstrap circuit simplifies the peripheral circuitry. Offered in an SOP8 package, it operates over a temperature range of -40℃ to 125℃.
Applications
- Power Management
- Electronic Lighting
- Inverters
- Motor Drives
Key features
- Maximum operating voltage up to +600V
- CT, RT programmable oscillator
- Micro-power startup
- Non-latching shutdown on CT pin (1/6 VCC)
- VCC clamp voltage: 15.6V
- Integrated VCC UVLO — positive/negative undervoltage thresholds: 11V/9V
- Integrated VBS UVLO — positive/negative undervoltage thresholds: 9V/8V
- Dead time DT = 1.1μs
- Output stage source/sink current capability: 1.2A/1.5A
- dV/dt immunity up to +50V/ns
- Integrated bootstrap
- Wide temperature range: -40℃ ~ 125℃
- RoHS compliant
- SOP8 package
