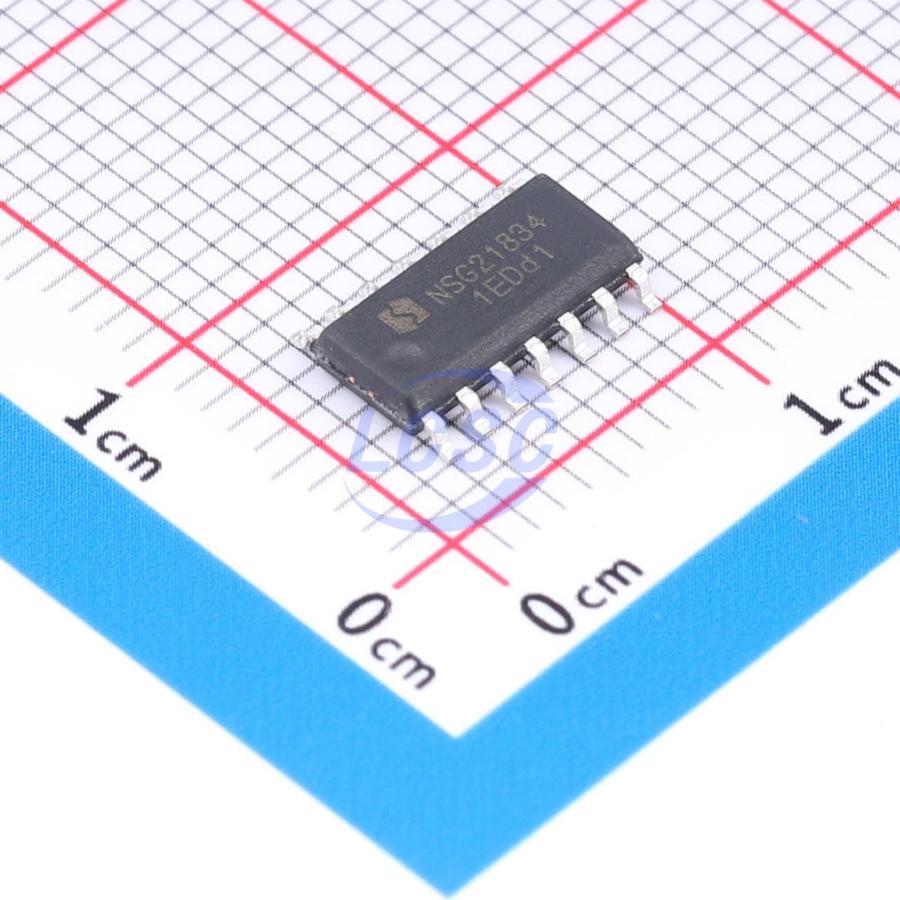

NSG21834
10V~20V 4A 4A SOP-14 Gate Drivers
- Manufacturer
- NCE
- Manufacturer part #
- NSG21834
- Store part #
- C53436452
- Package / case
- SOP-14
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,270 in stock
#C53436452
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹138.98 | ₹138.98 |
| 10+ | ₹114.06 | ₹1,140.60 |
| 30+ | ₹101.70 | ₹3,051.00 |
| 100+ | ₹89.55 | ₹8,955.00 |
| 500+ | ₹82.18 | ₹41,090.00 |
| 1,000+ | ₹78.28 | ₹78,280.00 |
1 × ₹138.98
₹138.98
excl. GST
₹164.00 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NSG21834
₹138.98 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 130ns
- High Level Delay Time
- 130ns
- Quiescent Current
- 150uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side;High Side
- Current - Output Low(IOL)
- 4A
- Rise Time
- 40ns
- Fall Time
- 20ns
- Features
- Undervoltage Protection;Overvoltage protection
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.601 g
Overview
NSG21834 is a high-voltage, high-speed power MOSFET/IGBT high- and low-side gate driver series IC with two non-independent propagation channels. It integrates protection circuits including high- and low-side UVLO, overvoltage clamp, and shoot-through lockout. The device features high-current pulse output capability, logic input levels compatible with CMOS or LSTTL outputs as low as 3.3V, a maximum output current of 4A, and a floating channel maximum operating voltage of 700V. Suitable for driving N-channel high-voltage power MOSFETs/IGBTs and similar devices.
Applications
- Motor Control
- Air Conditioner/Washing Machine
- General-Purpose Inverter
- Micro Inverter Driver
Key features
- Floating channel for bootstrap operation
- Maximum operating voltage up to 700V
- Compatible with 3.3V, 5V, and 15V input logic
- dv/dt immunity up to ±50V/nsec
- Vs negative voltage tolerance down to -9V
- Gate drive voltage: 10V ~ 20V
- High- and low-side UVLO
- UVLO positive-going threshold: 8.9V
- UVLO negative-going threshold: 8.2V
- Dead time adjustable via external resistor (RDT):
- DT = 400ns@RDT = 0
- DT = 5μs@RDT = 200kΩ
- Propagation delay (turn-on/turn-off):
- Ton/Toff = 130ns/130ns
- High- and low-side delay matched
- Drive current capability:
- Source/Sink = 4.0A/4.0A
- RoHS compliant
- SOP14 (S)
