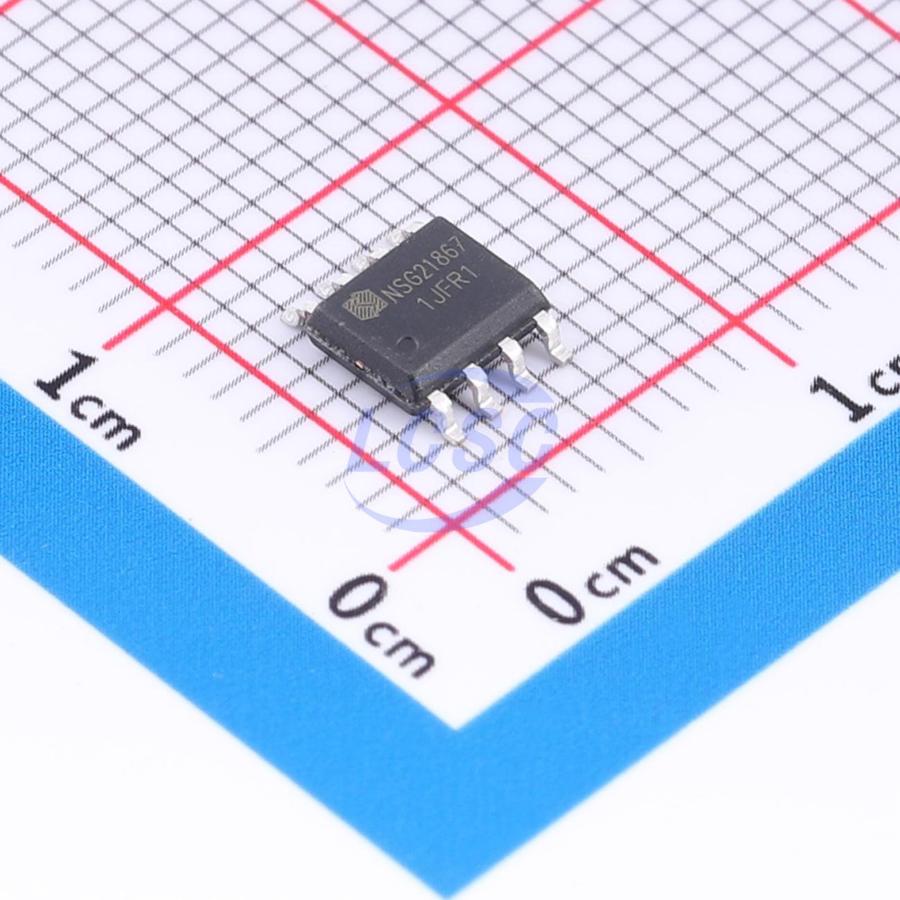

NSG21867
6.8V~20V 4A 4A SOP-8 Gate Drivers
- Manufacturer
- NCE
- Manufacturer part #
- NSG21867
- Store part #
- C53436454
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,033 in stock
#C53436454
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹170.85 | ₹170.85 |
| 10+ | ₹135.08 | ₹1,350.80 |
| 30+ | ₹117.09 | ₹3,512.70 |
| 100+ | ₹99.30 | ₹9,930.00 |
| 500+ | ₹88.68 | ₹44,340.00 |
| 1,000+ | ₹83.04 | ₹83,040.00 |
1 × ₹170.85
₹170.85
excl. GST
₹201.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NSG21867
₹170.85 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Quiescent Current
- 100uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 6.8V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side;High Side
- Current - Output Low(IOL)
- 4A
- Rise Time
- 10ns
- Fall Time
- 6ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.27 g
Overview
NSG21867 is a high-voltage, high-speed power MOSFET/IGBT high- and low-side gate driver with two independent output channels. It integrates high- and low-side UVLO, overvoltage clamp, and other protection circuits. It features high-current pulse output capability, with logic input levels compatible down to 3.3V CMOS or LSTTL logic, peak output current up to 4A, and a floating channel maximum operating voltage of 700V. Suitable for driving N-channel high-voltage power MOSFETs/IGBTs and similar devices.
Applications
- Motor Control
- Air Conditioner/Washing Machine
- General-Purpose Inverter
- Micro Inverter Driver
Key features
- Floating channel for bootstrap operation
- Maximum operating voltage: 700V
- Compatible with 3.3V, 5V, and 15V input logic
- dV/dt immunity up to ±50V/nsec
- Vs negative voltage tolerance: -9V
- Gate drive voltage: 6.8V ~ 20V
- High- and low-side UVLO
- UVLO positive threshold: 5.5V
- UVLO negative threshold: 5.0V
- Propagation delay: Ton/Toff = 150ns/150ns
- High- and low-side delay matching
- Drive current capability: source/sink = 4.0A/4.0A
- RoHS compliant
- SOP8 package
