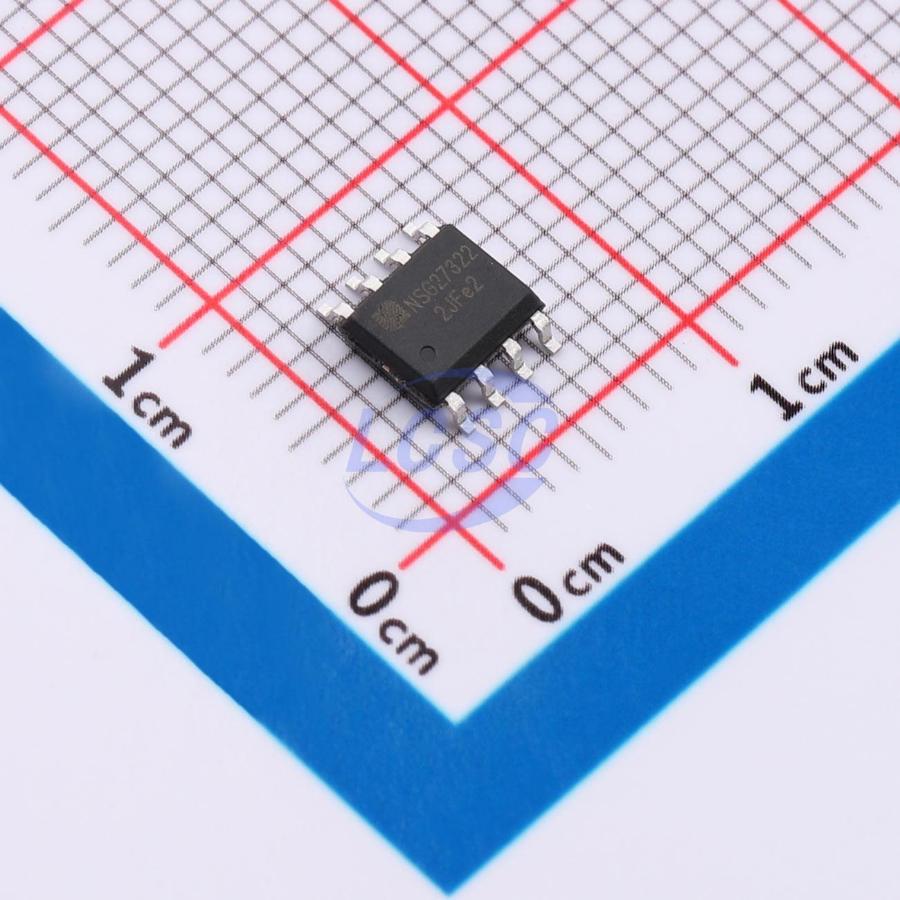

NSG27322
4.5V~16V 9A 9A SOP-8 Gate Drivers
- Manufacturer
- WXNSIC
- Manufacturer part #
- NSG27322
- Store part #
- C53190620
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,499 in stock
#C53190620
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹214.22 | ₹214.22 |
| 10+ | ₹178.01 | ₹1,780.10 |
| 30+ | ₹158.28 | ₹4,748.40 |
| 100+ | ₹135.73 | ₹13,573.00 |
| 500+ | ₹125.76 | ₹62,880.00 |
| 1,000+ | ₹121.42 | ₹1,21,420.00 |
1 × ₹214.22
₹214.22
excl. GST
₹252.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NSG27322
₹214.22 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Quiescent Current
- 150uA
- Input Logic Level - High
- 2.7V
- Voltage - Supply
- 4.5V~16V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 9A
- Rise Time
- 20ns
- Fall Time
- 20ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 9A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.236 g
Overview
The NSG27322 high-speed driver delivers 9A peak drive current in an industry-standard pinout. These drivers can drive the largest MOSFETs in systems requiring extreme Miller currents due to high dV/dt transitions. This eliminates the need for additional external circuitry and allows replacement of multiple components to reduce board space, design complexity, and assembly cost. By employing a design that inherently minimizes shoot-through current, the device output can supply high gate drive current precisely where it is needed most — during MOSFET switching in the Miller plateau region. The unique hybrid output stage parallels bipolar and MOSFET transistors (TrueDrive) to efficiently deliver current at low supply voltages. With this driver architecture, the NSG27322 is suitable for industry-standard 6A, 9A, and many 12A driver applications. Latch-up and ESD protection circuits are also included. Finally, the NSG27322 provides an Enable (ENBL) function for enhanced control over driver operation. ENBL is implemented on pin 3, which was previously unused in the industry-standard pinout. It is internally pulled up to the VDD supply for active-high logic operation and can be left unconnected for standard operation.
Applications
- Switching mode power supplies
- DC/DC converters
- Motor controllers
- Class D switching amplifiers
- Line drivers
- Pulse transformer drivers
Key features
- Non-inverting input/output
- Compatible with 3.3V and 5V input logic
- Operating range: 4.5V~16V
- High capacitive load drive capability
- Wide temperature range: -40℃~125℃
- Undervoltage lockout
- UVLO rising threshold: 4.0V
- UVLO falling threshold: 3.9V
- Turn-on/turn-off delay: Ton/Toff = 25ns/35ns
- Drive current capability: source/sink = 9A/9A
- RoHS compliant
