NSG27511

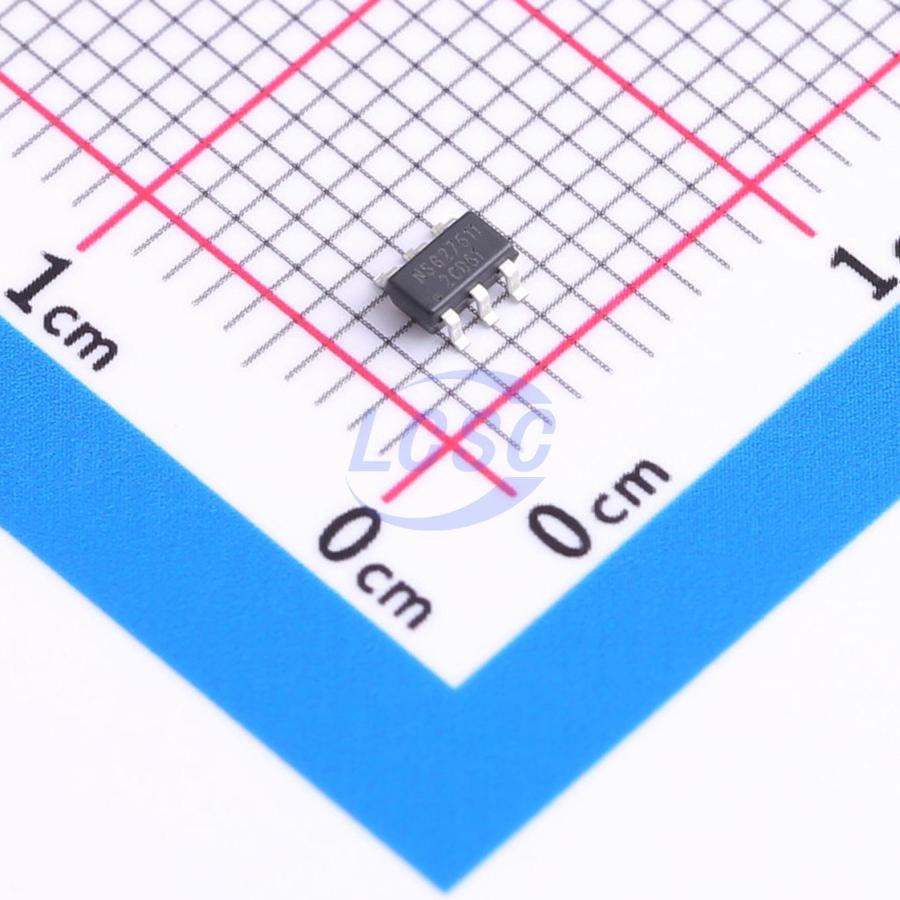

Low Side Gate Driver IC MOSFET IGBT SOT-23-6
SOT-23-6ROHS CompliantActive
Single-channel 4A ultra-high-speed power switch driver
- Manufacturer
- WXNSIC
- Manufacturer part #
- NSG27511
- Store part #
- C41414512
- Package / case
- SOT-23-6
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,955 in stock
#C41414512
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.79 | ₹183.95 |
| 50+ | ₹29.00 | ₹1,450.00 |
| 150+ | ₹25.65 | ₹3,847.50 |
| 500+ | ₹21.47 | ₹10,735.00 |
| 3,000+ | ₹19.62 | ₹58,860.00 |
| 6,000+ | ₹18.51 | ₹1,11,060.00 |
5 × ₹36.79
₹183.95
excl. GST
₹217.06 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NSG27511
₹183.95 for 5 + GST
Specifications
- Voltage - Supply
- 4.5V~25V
- Driven Configuration
- Low Side
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 4A
- Rise Time
- 10ns
- Fall Time
- 8ns
- Features
- Enable shutdown
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
NSG27511 is a single-channel high-speed low-side gate driver capable of efficiently driving MOSFET and IGBT power switches. The device provides high peak source and sink current pulses for capacitive loads, featuring rail-to-rail drive capability and extremely short propagation delay.
Applications
- Switching power supplies
- DC-DC converters
- Companion gate drivers for digital power controllers
- Solar, motor control, UPS
- GaN gate drivers
Key features
- Dual-input design, selectable inverting or non-inverting driver configuration
- Unused input pins available for enable/disable function
- Compatible with TTL and CMOS logic inputs
- Operating voltage range: 4.5V ~ 25V
- Wide operating temperature range: -40℃ ~ 125℃
- Wide input voltage range: -10V ~ 22V
- UVLO function with positive threshold 4.3V and negative threshold 4.1V
- Short turn-on/turn-off propagation delay: 30ns each
- Strong drive current capability: 4A source and sink current
- SOT23-6 package
