NCEDatasheet (PDF)

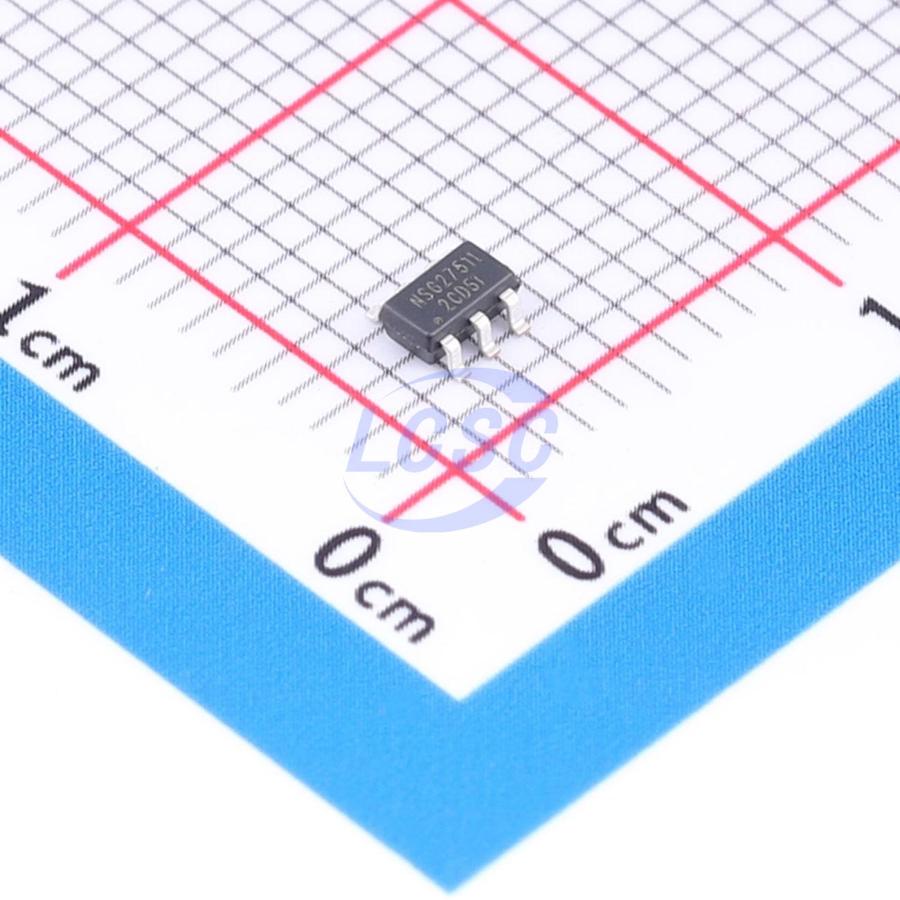

NSG27511
4.5V~20V 4A 4A SOT-23-6 Gate Drivers
SOT-23-6RoHSActive
- Manufacturer
- NCE
- Manufacturer part #
- NSG27511
- Store part #
- C53436463
- Package / case
- SOT-23-6
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,225 in stock
#C53436463
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹50.74 | ₹253.70 |
| 50+ | ₹39.03 | ₹1,951.50 |
| 150+ | ₹34.04 | ₹5,106.00 |
| 500+ | ₹27.76 | ₹13,880.00 |
| 3,000+ | ₹24.94 | ₹74,820.00 |
| 6,000+ | ₹23.21 | ₹1,39,260.00 |
5 × ₹50.74
₹253.70
excl. GST
₹299.37 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NSG27511
₹253.70 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Quiescent Current
- 300uA
- Input Logic Level - High
- 2.4V
- Voltage - Supply
- 4.5V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 4A
- Rise Time
- 10ns
- Fall Time
- 8ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
The NSG27511 single-channel high-speed low-side gate driver effectively drives MOSFET and IGBT power switches. The NSG27511 delivers high peak source/sink current pulses to capacitive loads while providing rail-to-rail drive capability and ultra-short propagation delay.
Applications
- Switching power supplies
- DC-DC converters
- Companion gate driver devices for digital power controllers
- Solar, motor control, uninterruptible power supply (UPS)
- GaN gate drivers
Key features
- Dual-input design (selectable inverting (IN− pin) or non-inverting (IN+ pin) driver configuration; unused input pin can be used for enable/disable function)
- TTL and CMOS logic input compatible
- Operating range: 4.5V ~ 25V
- Wide temperature range: -40℃ ~ 125℃
- Wide input range: -10V ~ 22V
- UVLO -- UVLO rising threshold 4.3V -- UVLO falling threshold 4.1V
- Turn-on/turn-off propagation delay -- Ton/Toff = 30ns/30ns
- Drive current capability: source/sink = 4A/4A
- SOT23-6 package
