NCEDatasheet (PDF)

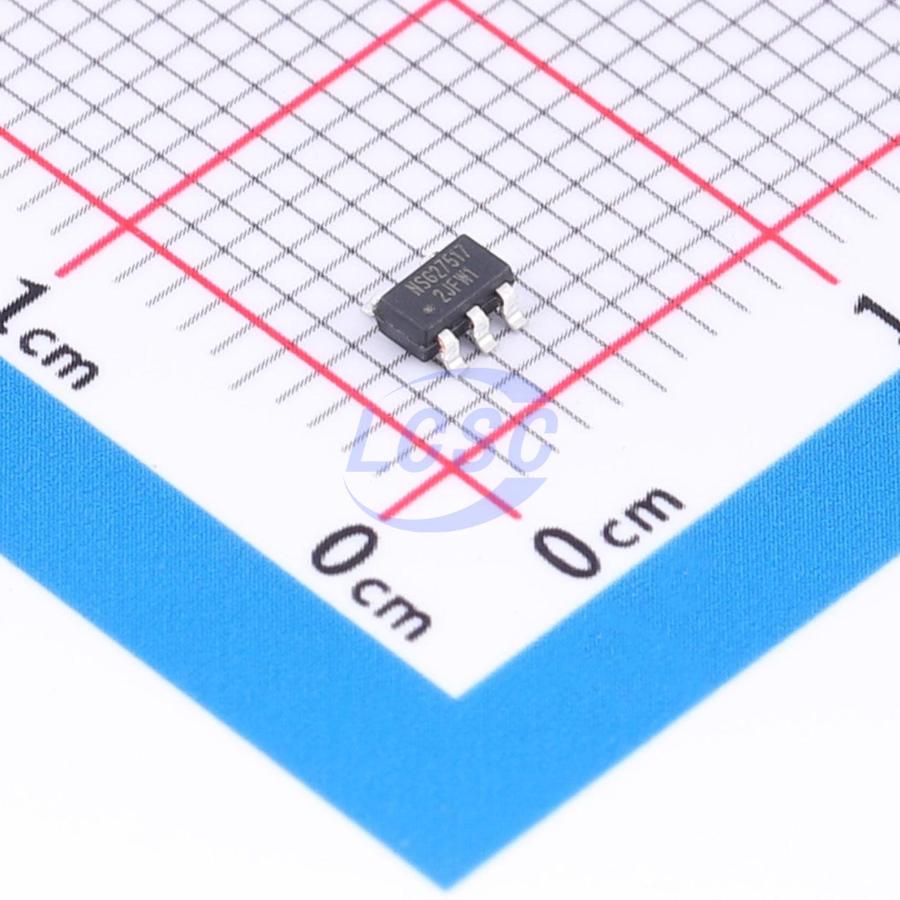

NSG27517
5V~25V 4A 4A SOT-23-5 Gate Drivers
SOT-23-5RoHSActive
- Manufacturer
- NCE
- Manufacturer part #
- NSG27517
- Store part #
- C53436209
- Package / case
- SOT-23-5
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,556 in stock
#C53436209
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹34.70 | ₹34.70 |
| 10+ | ₹34.01 | ₹340.10 |
| 30+ | ₹32.29 | ₹968.70 |
| 100+ | ₹30.79 | ₹3,079.00 |
| 500+ | ₹29.71 | ₹14,855.00 |
| 1,000+ | ₹25.41 | ₹25,410.00 |
1 × ₹34.70
₹34.70
excl. GST
₹40.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NSG27517
₹34.70 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 30ns
- High Level Delay Time
- 30ns
- Quiescent Current
- 180uA
- Input Logic Level - High
- 2.7V
- Voltage - Supply
- 5V~25V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 4A
- Rise Time
- 10ns
- Fall Time
- 10ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.048 g
Overview
NSG27517 is a low-voltage power MOSFET and IGBT non-inverting gate driver. Proprietary latch-up immune CMOS technology enables a highly robust monolithic integration architecture. The NSG27517 logic input levels are compatible with CMOS or LSTTL logic output levels as low as 3.3V. The output driver features a wide VCC range, UVLO with hysteresis, and output current buffer stage. Operates over a temperature range of -40℃ to 125℃.
Applications
- Switching power supplies, switching converters
- General-purpose gate drivers
- MOSFET and IGBT drive
Key features
- Dual-input design (selectable inverting (IN− pin) or non-inverting (IN+ pin) driver configuration)
- Unused input pin usable for enable/disable function
- 3.3V input logic compatible
- Operating range: 5V~25V
- Wide temperature range: -40℃~125℃
- UVLO
- UVLO positive-going threshold: 4.0V
- UVLO negative-going threshold: 3.9V
- Turn-on/turn-off propagation delay
- Ton/Toff = 30ns/30ns
- Drive current capability:
- Source/sink = 4A/4A
- SOT-23-5 package
