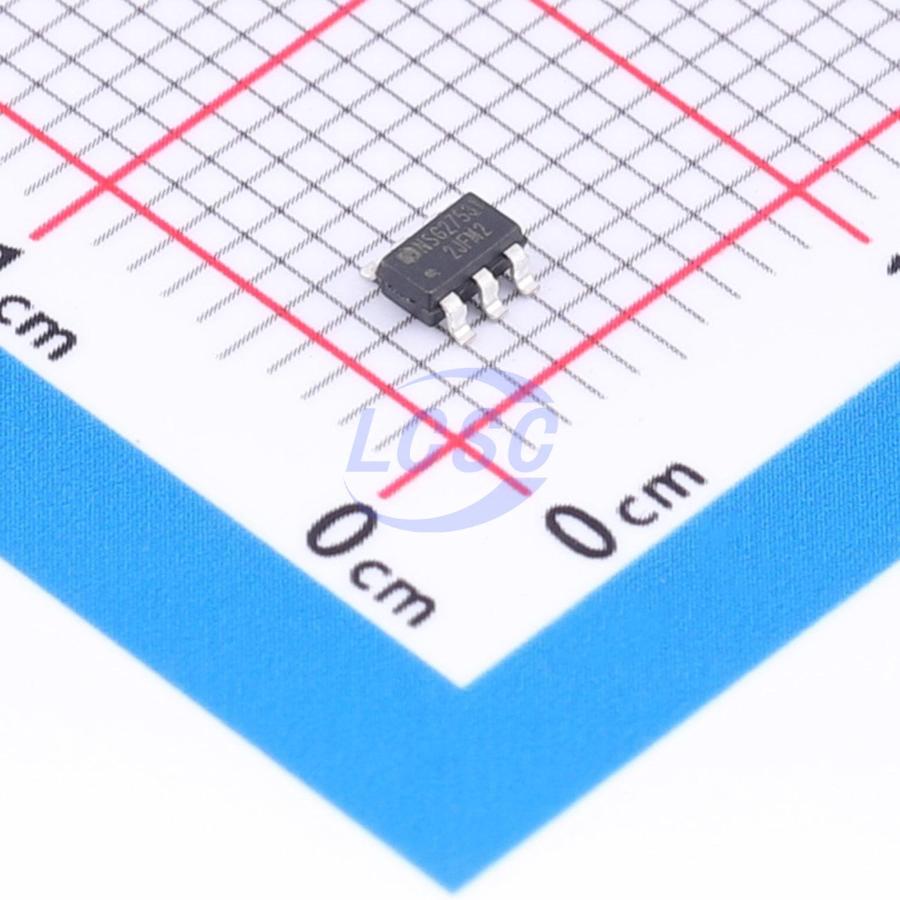

NCE

NSG27531

12V~20V 4A 2A SOT-23-6 Gate Drivers

SOT-23-6RoHSActive

Manufacturer: NCE
Manufacturer part #: NSG27531
Store part #: C53463329
Package / case: SOT-23-6
Category: Gate Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,380 in stock

#C53463329

Stock & price checked 39 h ago

Quantity	Unit price	Pack price
5+	₹22.33	₹111.65
50+	₹21.88	₹1,094.00
150+	₹21.59	₹3,238.50
500+	₹21.29	₹10,645.00

Quantity (min 5, multiples of 5)

5 × ₹22.33

₹111.65

excl. GST

₹131.75 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

NSG27531

₹111.65 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Logic Level - Low: 800mV
Low Level Delay Time: 25ns
High Level Delay Time: 25ns
Quiescent Current: 200uA
Input Logic Level - High: 2.5V
Voltage - Supply: 12V~20V
Operating Temperature: -40℃~+125℃
Driven Configuration: Low Side
Current - Output Low(IOL): 4A
Rise Time: 30ns
Fall Time: 15ns
Features: Undervoltage Protection
Current - Output High(IOH): 2A
Load Type: MOSFET;IGBT

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.067 g

Overview

NSG27531 is a low-voltage power MOSFET and IGBT non-inverting gate driver. Proprietary latch-up immune CMOS technology enables a highly robust monolithic integrated structure. The NSG27531 logic input levels are compatible with CMOS or LSTTL logic output levels as low as 3.3V. The output driver features a wide VCC range, UVLO with hysteresis, and output current buffer stage. Operates over a temperature range of -40℃ to 125℃.
