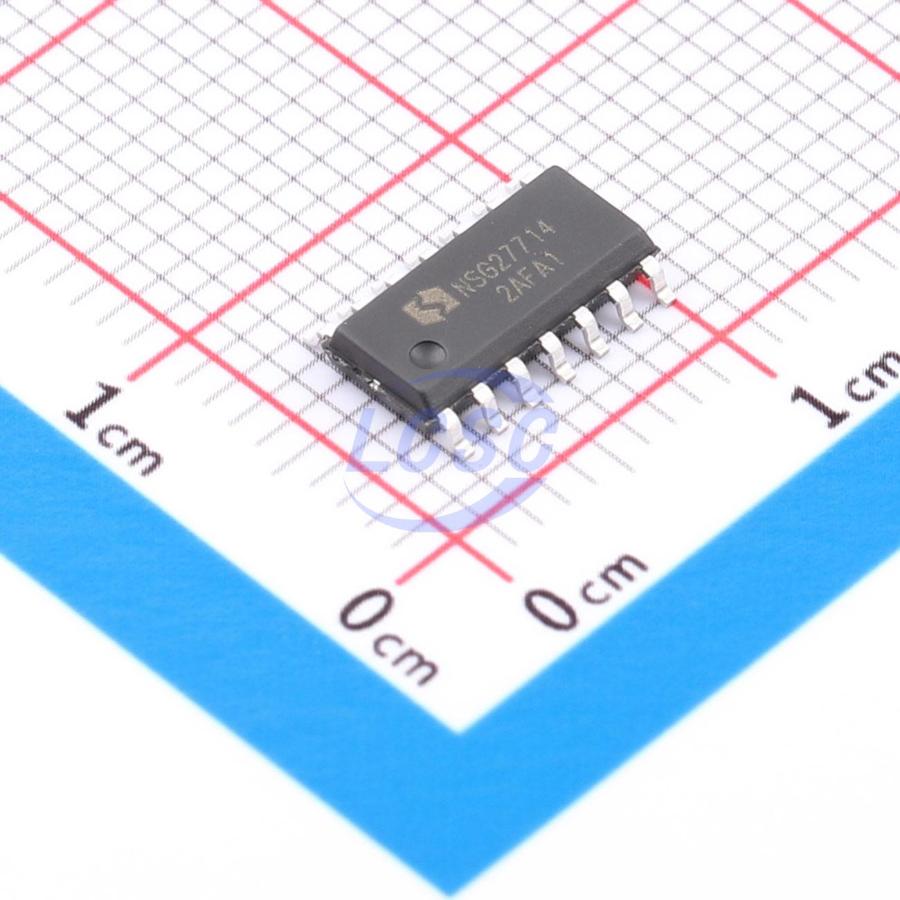

NSG27714
10V~20V 4.5A 5A SOP-14 Gate Drivers
- Manufacturer
- WXNSIC
- Manufacturer part #
- NSG27714
- Store part #
- C52975936
- Package / case
- SOP-14
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,484 in stock
#C52975936
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹110.80 | ₹110.80 |
| 10+ | ₹89.77 | ₹897.70 |
| 30+ | ₹79.14 | ₹2,374.20 |
| 100+ | ₹68.74 | ₹6,874.00 |
| 500+ | ₹62.45 | ₹31,225.00 |
| 1,000+ | ₹59.19 | ₹59,190.00 |
1 × ₹110.80
₹110.80
excl. GST
₹130.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NSG27714
₹110.80 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV~1.5V
- Quiescent Current
- 120uA
- Input Logic Level - High
- 2.2V~2.6V
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- High Side;Low Side;Half-Bridge;Full bridge
- Current - Output Low(IOL)
- 4.5A
- Rise Time
- 15ns
- Fall Time
- 10ns
- Features
- Enable shutdown
- Current - Output High(IOH)
- 5A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.477 g
Overview
NSG27714 is a 700V high-side/low-side gate driver with 4.5A/5.0A source/sink current capability, designed to drive power MOSFETs or IGBTs. The device features a ground-referenced channel and a floating channel designed for bootstrap power supply operation. It maintains normal logic operation under VS pin negative voltage conditions up to -11VDC, offering excellent stability and noise immunity. The device supports a wide bias supply input range of 10V to 20V and provides undervoltage lockout protection for VCC and VB bias supply pins. The device is offered in a SOP14 package with a rated operating temperature range of -40°C to 125°C.
Applications
- Half-bridge and full-bridge converters in offline AC and DC power supplies
- High-density SMPS for servers, telecom, IT, and industrial infrastructure; general-purpose inverters
- Solar inverters
- Motor drives
- Uninterruptible power supplies
Key features
- High-side/low-side configuration via independent inputs
- Full operational voltage up to 700V
- Floating channel designed for bootstrap operation
- Peak output sink/source current capability of 4.5A/5.0A at VCC=15V
- TTL and CMOS compatible input logic
- VCC bias supply range: 10V to 20V
- Dual-channel bias undervoltage lockout protection
- Rail-to-rail drive
- Stable operation under negative voltage transient conditions
- High dv/dt immunity
- Independent logic and driver grounds with voltage differential capability
- Optional enable function
- Output held low when inputs are floating
- Input and enable pin voltage levels independent of VCC pin bias supply voltage
- Separated high-voltage and low-voltage pins for maximum creepage distance and clearance
- Negative voltage handling capability on input and enable pins
