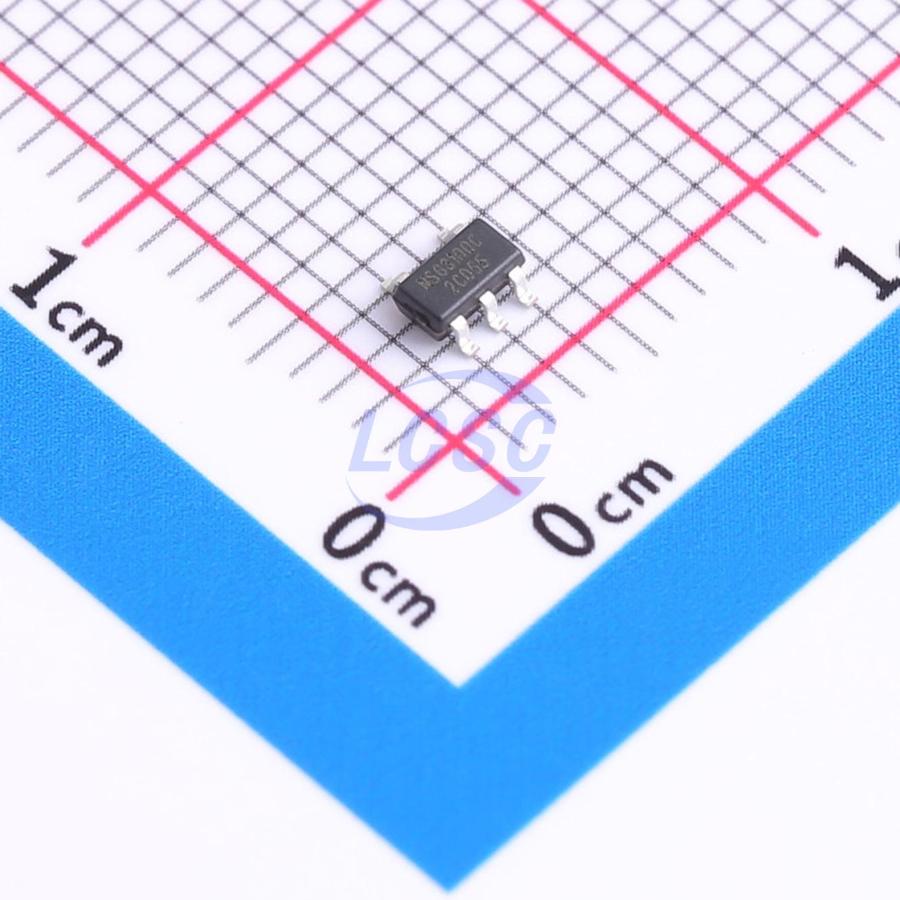

NSG3100C
Low Side Gate Driver IC MOSFET SOT-23-5
SOT-23-5ROHS CompliantActive
NSG3100C Single-Channel 4A Ultra-High-Speed Gate Driver
- Manufacturer
- WXNSIC
- Manufacturer part #
- NSG3100C
- Store part #
- C41414514
- Package / case
- SOT-23-5
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,945 in stock
#C41414514
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.34 | ₹181.70 |
| 50+ | ₹28.54 | ₹1,427.00 |
| 150+ | ₹25.19 | ₹3,778.50 |
| 500+ | ₹21.02 | ₹10,510.00 |
| 3,000+ | ₹19.16 | ₹57,480.00 |
| 6,000+ | ₹18.05 | ₹1,08,300.00 |
5 × ₹36.34
₹181.70
excl. GST
₹214.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NSG3100C
₹181.70 for 5 + GST
Specifications
- Input Logic Level - Low
- 4.5V
- Low Level Delay Time
- 20ns
- High Level Delay Time
- 20ns
- Quiescent Current
- 20uA
- Input Logic Level - High
- 7.5V
- Voltage - Supply
- 4.5V~25V
- Driven Configuration
- Low Side
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 4A
- Rise Time
- 15ns
- Fall Time
- 15ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.045 g
Overview
The NSG3100C 4A gate driver is designed to deliver high peak current pulses during short switching intervals, driving a single N-channel enhancement-mode MOSFET in low-side switch applications. This driver provides NSG3100C input thresholds, with internal circuitry maintaining the output in a low-state condition. The NSG3100C offers fast MOSFET switching performance to maximize efficiency in high-frequency power converter designs.
Applications
- Switching power supplies
- DC-DC converters
- High-efficiency MOSFET switching
- Motor control
- Synchronous rectification circuits
Key features
- CMOS logic input
- 4A/4A peak sink/source current
- Input logic protection down to -10V
- Internal resistor turns off driver with no input
- Dual-channel logic input configurable as non-inverting or inverting via enable
- -10~25V input voltage range
- Operating range: 4.5V~25V
- Short propagation delay: 20ns
- Short rise and fall times
- Wide temperature range: -40℃~125℃
- Two packages: SOT23-5, WDFN-6
