NSG531

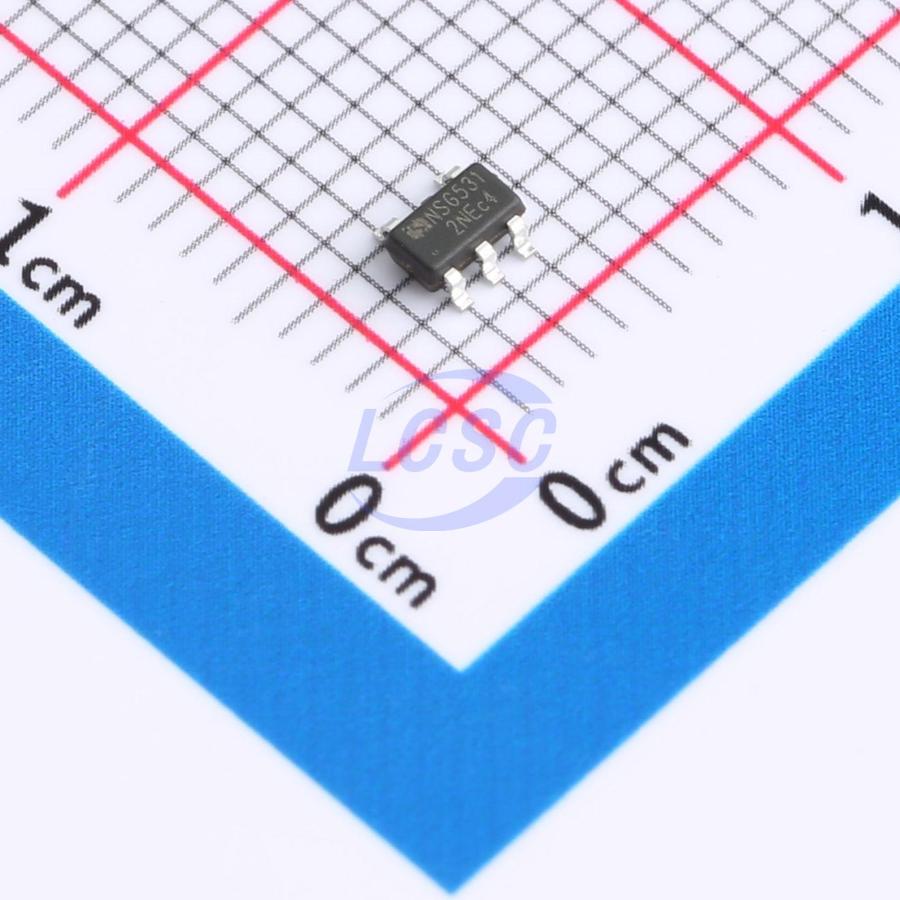

Gate Driver IC MOSFET IGBT SOT-23-5
Power switch controller
- Manufacturer
- WXNSIC
- Manufacturer part #
- NSG531
- Store part #
- C46473174
- Package / case
- SOT-23-5
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,510 in stock
#C46473174
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.97 | ₹104.85 |
| 50+ | ₹16.43 | ₹821.50 |
| 150+ | ₹14.50 | ₹2,175.00 |
| 500+ | ₹12.07 | ₹6,035.00 |
| 3,000+ | ₹10.99 | ₹32,970.00 |
| 6,000+ | ₹10.35 | ₹62,100.00 |
5 × ₹20.97
₹104.85
excl. GST
₹123.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NSG531
₹104.85 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 25ns
- High Level Delay Time
- 25ns
- Quiescent Current
- 180uA
- Input Logic Level - High
- 2.7V
- Voltage - Supply
- 5V~20V
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 2A
- Rise Time
- 30ns
- Fall Time
- 30ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 2A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.063 g
Overview
NSG531 is a general-purpose power switch controller that replaces push-pull circuits built from discrete components, capable of directly driving power switches such as IGBTs, power MOSFETs, and relays. The device is available in a SOT23-5 package. Its input and output signals are in phase, supporting a wide range of power switch types. Supply voltage range is 5V–20V, and input voltage range is 0V–20V. Source current capability is -2A (maximum) and sink current capability is 2A (maximum), enabling direct drive of 1200V 25A IGBTs.
Applications
- Switching power supplies
- Switch-mode converters
- General-purpose gate drivers
- Drives MOSFETs and IGBTs
Key features
- Drive 1200V 25A IGBT
- High-current drive for power switches
- Source current: -2A (max)
- Sink current: 2A (max)
- Supply voltage: 5V~20V
- Input voltage range: 0V~20V
- Compatible with various power switches
- Input and output signals in phase
