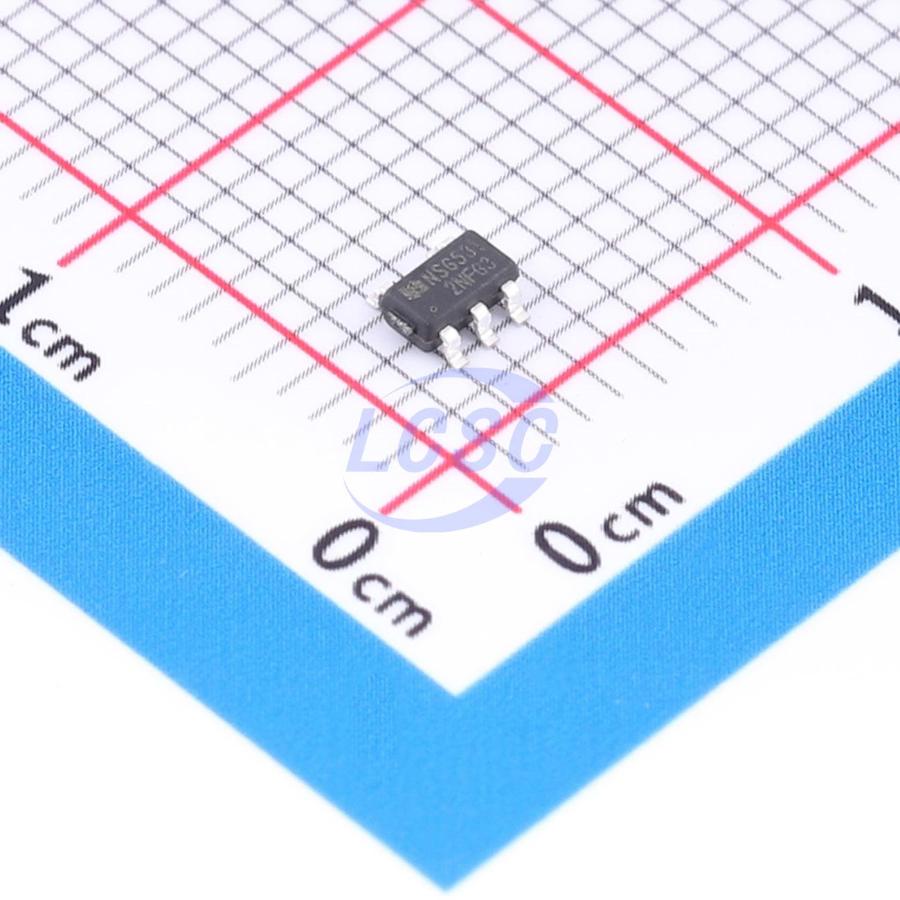

NCEDatasheet (PDF)
NSG531
5V~20V 2A 2A SOT-23-5 Gate Drivers
SOT-23-5RoHSActive
- Manufacturer
- NCE
- Manufacturer part #
- NSG531
- Store part #
- C53436481
- Package / case
- SOT-23-5
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,705 in stock
#C53436481
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.18 | ₹160.90 |
| 50+ | ₹24.74 | ₹1,237.00 |
| 150+ | ₹21.55 | ₹3,232.50 |
| 500+ | ₹17.58 | ₹8,790.00 |
| 3,000+ | ₹15.81 | ₹47,430.00 |
| 6,000+ | ₹14.75 | ₹88,500.00 |
5 × ₹32.18
₹160.90
excl. GST
₹189.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NSG531
₹160.90 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Quiescent Current
- 180uA
- Input Logic Level - High
- 2.7V
- Voltage - Supply
- 5V~20V
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 2A
- Rise Time
- 30ns
- Fall Time
- 30ns
- Current - Output High(IOH)
- 2A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.067 g
Overview
NSG531 is a general-purpose power switch controller that can replace push-pull circuits built from discrete components, and is capable of directly driving power switches such as IGBTs, power MOSFETs, and relays. Available in a SOT23-5 package, it is compact and easy to use.
Applications
- Switching power supplies, switching converters
- General-purpose gate drivers
- MOSFET and IGBT drive
Key features
- Drives 1200V 25A IGBT
- High-current gate drive for power switches: source current: 2A (max), sink current: 2A (max)
- Supply voltage: 5V ~ 20V
- Input voltage range: 0V ~ 20V
- Compatible with various power switches
- Input and output signals in phase
