NSG532

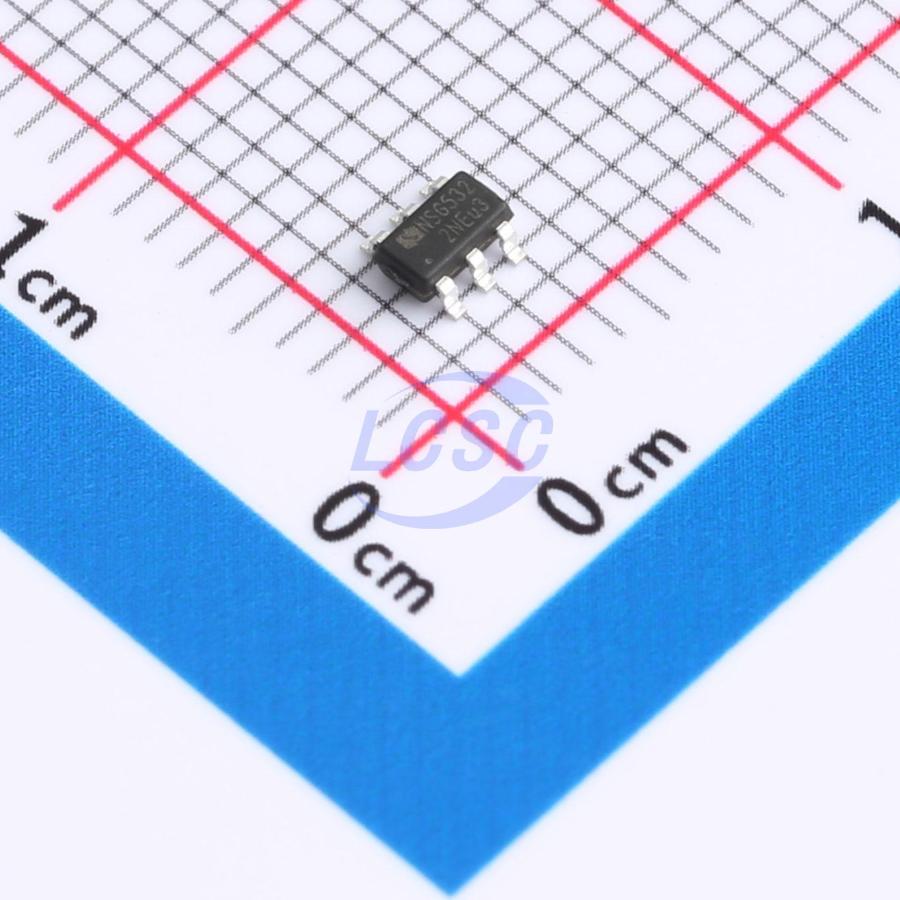

Gate Driver IC MOSFET IGBT SOT-23-6
Dual-channel 2A ultra-high-speed power switch driver
- Manufacturer
- WXNSIC
- Manufacturer part #
- NSG532
- Store part #
- C46473175
- Package / case
- SOT-23-6
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,525 in stock
#C46473175
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.07 | ₹115.35 |
| 50+ | ₹18.57 | ₹928.50 |
| 150+ | ₹16.64 | ₹2,496.00 |
| 500+ | ₹14.24 | ₹7,120.00 |
| 3,000+ | ₹13.16 | ₹39,480.00 |
| 6,000+ | ₹12.52 | ₹75,120.00 |
5 × ₹23.07
₹115.35
excl. GST
₹136.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NSG532
₹115.35 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 70ns
- High Level Delay Time
- 70ns
- Quiescent Current
- 1mA
- Input Logic Level - High
- 2.4V
- Voltage - Supply
- 5V~20V
- Driven Configuration
- Low Side
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 2A
- Rise Time
- 30ns
- Fall Time
- 30ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 2A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.065 g
Overview
The NSG532 is a power switch series driver featuring matched rise and fall times when charging and discharging the gates of power switches. The device provides a high degree of latch-up immunity under any conditions within its rated power and voltage range. The NSG532 will not be damaged when noise spikes of up to 5V (either polarity) appear on the ground pin. It can withstand reverse currents of up to 500mA forced back into its output without damage or logic upset. Comprehensive ESD protection of up to 2.0kV is provided on all terminals.
Applications
- Switching power supplies
- Switch-mode converters
- DC-DC converters
- Class D switching amplifiers
- Motor control
Key features
- Latch-up protection
- Withstands 0.5A reverse current and input logic protection down to -10V
- Low output impedance
- Dual-channel driver output in single chip
- Peak output current: 2A
- Operating voltage range: 5V~25V
- VCC undervoltage lockout protection
- Maximum input voltage up to 5V
- High capacitive load drive capability: switching time <25ns at 1nF load
- Matched rise and fall times
- Propagation delay: 40ns
- Wide operating temperature range: -40℃~125℃
- Turn-on/turn-off delay: Ton/Toff = 70ns/70ns
- RoHS compliant, SOT23-6 package
