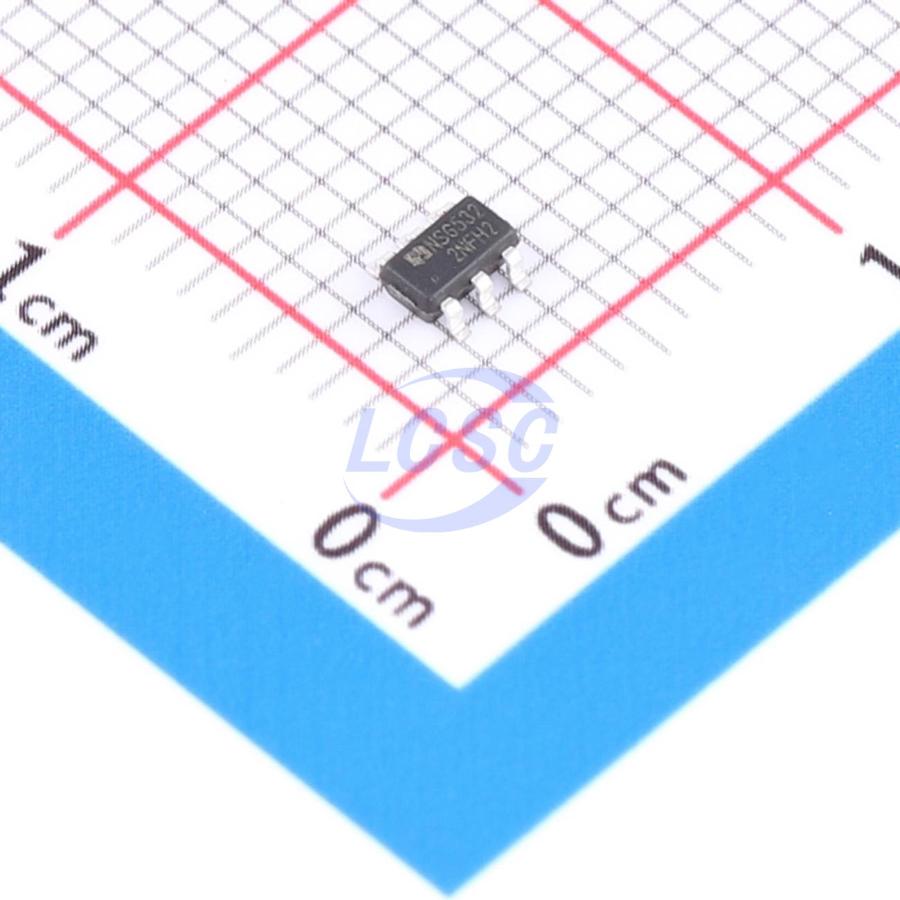

NSG532
5V~25V 2A 2A SOT-23-6 Gate Drivers
- Manufacturer
- NCE
- Manufacturer part #
- NSG532
- Store part #
- C53463333
- Package / case
- SOT-23-6
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,270 in stock
#C53463333
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.54 | ₹122.70 |
| 50+ | ₹19.34 | ₹967.00 |
| 150+ | ₹17.11 | ₹2,566.50 |
| 500+ | ₹14.33 | ₹7,165.00 |
| 3,000+ | ₹13.08 | ₹39,240.00 |
| 6,000+ | ₹12.34 | ₹74,040.00 |
5 × ₹24.54
₹122.70
excl. GST
₹144.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NSG532
₹122.70 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2.4V
- Voltage - Supply
- 5V~25V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 2A
- Rise Time
- 30ns
- Fall Time
- 30ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 2A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.049 g
Overview
NSG532 is a driver for power switch series. It features matched rise and fall times when charging and discharging the gates of power switches. NSG532 exhibits high latch-up immunity under any conditions within its rated power and voltage range. When noise spikes of up to 5V (either polarity) appear on the ground pin, NSG532 will not be damaged. NSG532 can accept up to 500mA of reverse current forced back into its output without damage or logic upset. All terminals are fully protected against ESD up to 2.0kV. NSG532 is an ultra-high-speed, high-current power chip driver with matched rise and fall times when charging and discharging the gates of power switches. NSG532 contains two independent signal input ports for receiving control signals from the host controller without mutual interference. These two ports are designed with high reliability — even with 500mA of reverse current forced back into the output, no damage or logic upset will occur. The signal input ports also feature the ability to directly handle voltages down to -10V, ensuring safe operation of the chip under severe noise waveform conditions, thereby enhancing chip stability. NSG532 outputs are in phase with the inputs and can be used to drive P-type or N-type MOSFETs. Each output port can source or sink peak currents of 2A; its high-speed, high-current characteristics make it suitable for driving MOSFETs in high-frequency application designs.
Applications
- Switching power supplies, switch-mode converters
- Line drivers
- Pulse transformer driving
- MOSFET and IGBT driving
- Motor control
- Pulse generators
- Power switches
- DC-DC converters
- Class D switching amplifiers
Key features
- Latch protection: withstands 0.5A reverse current
- Input logic protection down to -10V
- Low output impedance
- Dual-channel driver integrated in a single chip
- Peak output current: 2A
- Operating range: 5V~25V
- VCC undervoltage protection
- Maximum input voltage up to 5V
- High capacitive load drive capability: switching time <25ns at 1nF load
- Matched rise/fall times
- Propagation delay: 40ns
- Wide temperature range: -40℃~125℃
- Turn-on/turn-off delay characteristics: Ton/Toff = 70ns/70ns
- RoHS-compliant SOT23-6
