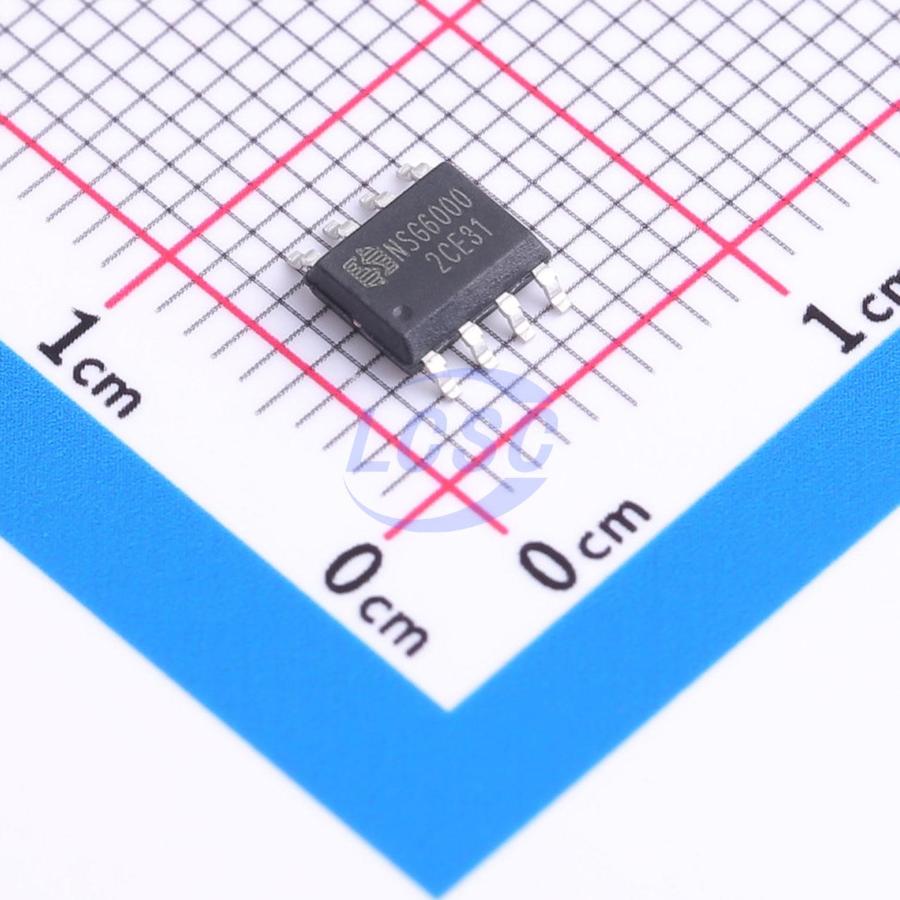

NSG6000
Low Side High Side Gate Driver IC MOSFET SOP-8
650V single-phase high and low side power MOSFET/IGBT driver IC
- Manufacturer
- WXNSIC
- Manufacturer part #
- NSG6000
- Store part #
- C41414489
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,065 in stock
#C41414489
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.02 | ₹185.10 |
| 50+ | ₹29.07 | ₹1,453.50 |
| 150+ | ₹25.65 | ₹3,847.50 |
| 500+ | ₹21.41 | ₹10,705.00 |
| 2,500+ | ₹19.51 | ₹48,775.00 |
| 4,000+ | ₹18.38 | ₹73,520.00 |
5 × ₹37.02
₹185.10
excl. GST
₹218.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NSG6000
₹185.10 for 5 + GST
Specifications
- Quiescent Current
- 60uA
- Voltage - Supply
- 10V~20V
- Driven Configuration
- High Side;Low Side
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 1A
- Rise Time
- 70ns
- Fall Time
- 35ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 600mA
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.174 g
Overview
The NSG6000 is a high-voltage, high-speed power MOSFET high- and low-side gate driver IC. It features independent high-side and low-side referenced output channels. The high-low voltage compatible process enables monolithic integration of both high- and low-side gate drive circuits, with logic input levels compatible down to 3.3V CMOS or LSTTL logic output levels. The floating channel supports driving of high-side N-channel power MOSFETs, with a maximum floating supply voltage of 650V. Housed in a SOP8 package, it operates over a temperature range of -40°C to 125°C.
Applications
- Motor Control
- Air Conditioner/Washing Machine
- General-Purpose Inverter
- Inverter Drive
Key features
- Floating channel designed for bootstrap operation
- Maximum chip withstand voltage +650V
- Compatible with 3.3V, 5V, and 15V input logic
- dVs/dt immunity up to ±50V/ns
- Vs negative bias capability down to -9V
- Integrated VCC and VBS undervoltage lockout
- VCC UVLO threshold 8.7V/7.7V
- VBS UVLO threshold 8.2V/7.3V
- Propagation delay characteristics
- Turn-on/turn-off propagation delay Ton/Toff = 250ns/150ns
- Delay matching time < 50ns
- Shoot-through protection
- Dead time 130ns
- Wide temperature range -40°C~125°C
- RoHS compliant
- SOP8 (S)
